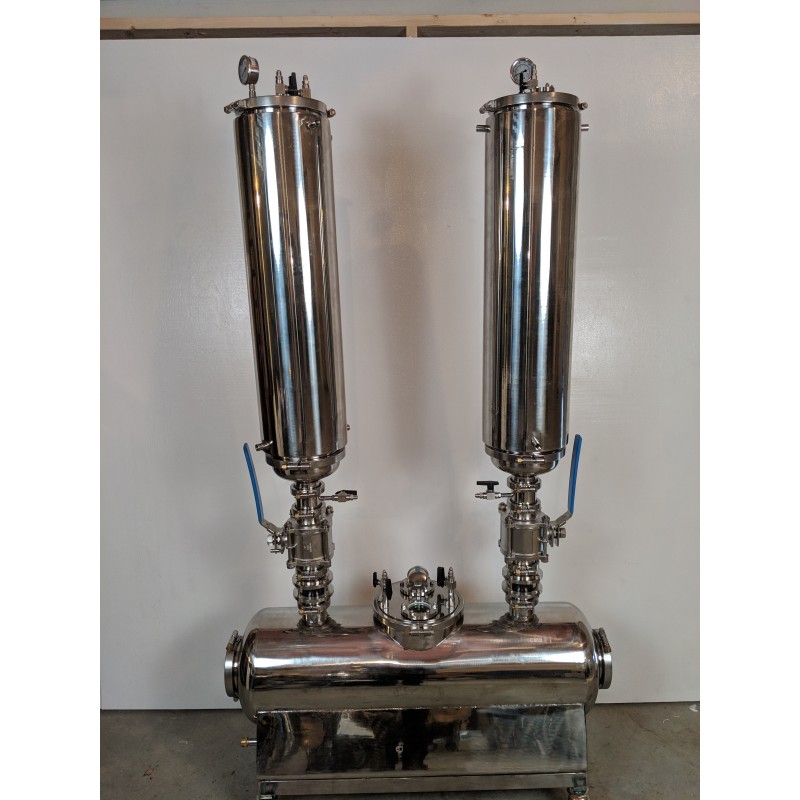

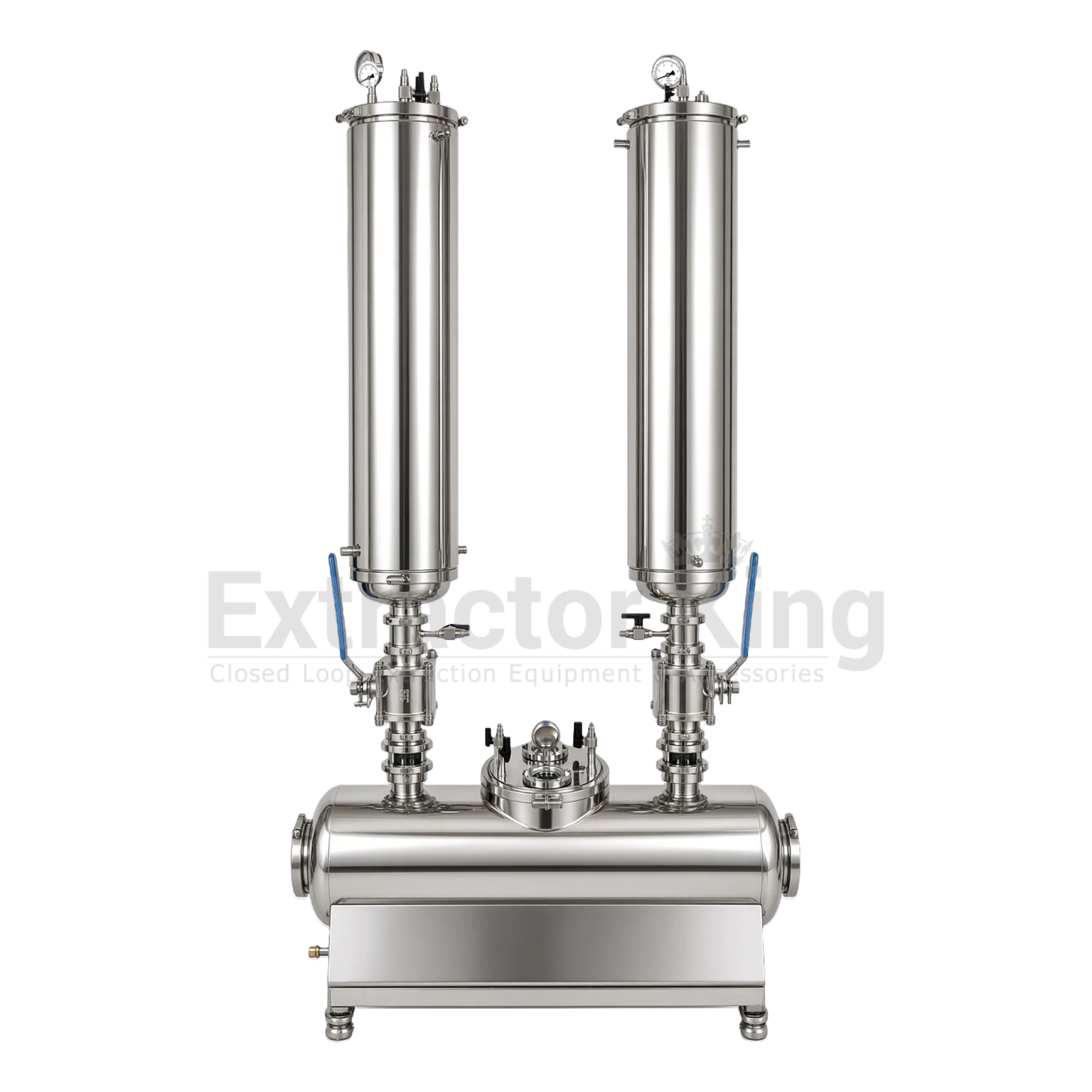

20lb 2-Column Closed Loop Extractor, two stainless columns with gauges over a horizontal collection tank

20LB Closed Loop Extractor Passive-Active

Reference: CLE-20LB-PA

Manufacturer:

This is a 2 Column, 20LB capacity, closed loop passive-active hydrocarbon extraction system with honey pot base & wheels. This unit can process up to 40LB of ground material or 20LBS of dried flower.

In stock

CAD $23,590.00

Optional Must Have Accessories

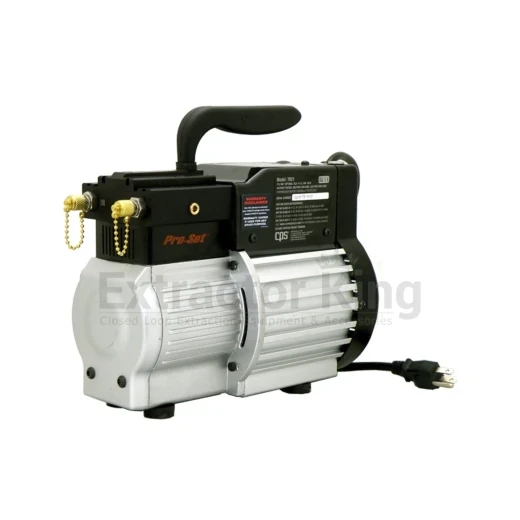

  CPS TRS21 Recovery Pump, RMAK Version, silver and black pump with carry handle, brass ports and power cord  TRS21 Ignition Proof Recovery Pump New RMAK Version +CAD $2,098.79

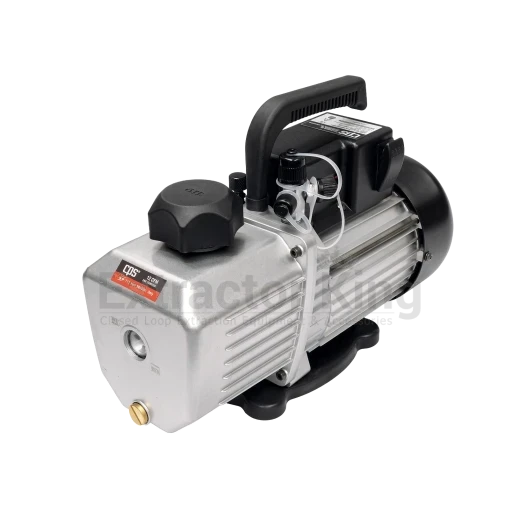

  CPS VPS12DU 12 CFM 2-Stage Vacuum Pump, silver and black pump with carry handle and oil cap  12 CFM 2 Stage Ignition Proof Vacuum Pump +CAD $1,098.87
  84" x 1/4" JIC PTFE Stainless Braided Hose, close-up of braided hose end with hex nut fitting  84"x1/4" JIC PTFE High Pressure Stainless Steel Hose +CAD $98.67
  36" x 1/4" JIC PTFE Stainless Braided Hose, close-up of braided hose end with hex nut fitting  36"x1/4" JIC PTFE High Pressure Stainless Steel hose +CAD $64.87
  144" x 1/4" JIC PTFE Stainless Braided Hose, close-up of braided hose end with hex nut fitting  144"x1/4" JIC PTFE High Pressure Stainless Steel hose +CAD $146.05

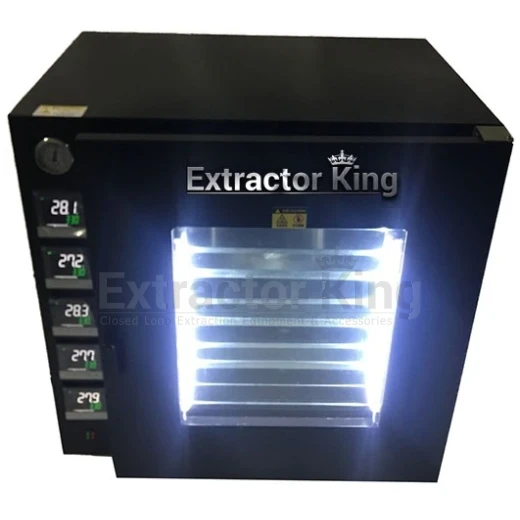

  SK 7.8 Cu Ft Vacuum Oven, 19 Shelves, black oven with lit window showing shelves and side controllers  7.8 Cubic Foot Vacuum Oven +CAD $6,797.65
Payment Providers
Payment Providers
Add to wishlist

More info

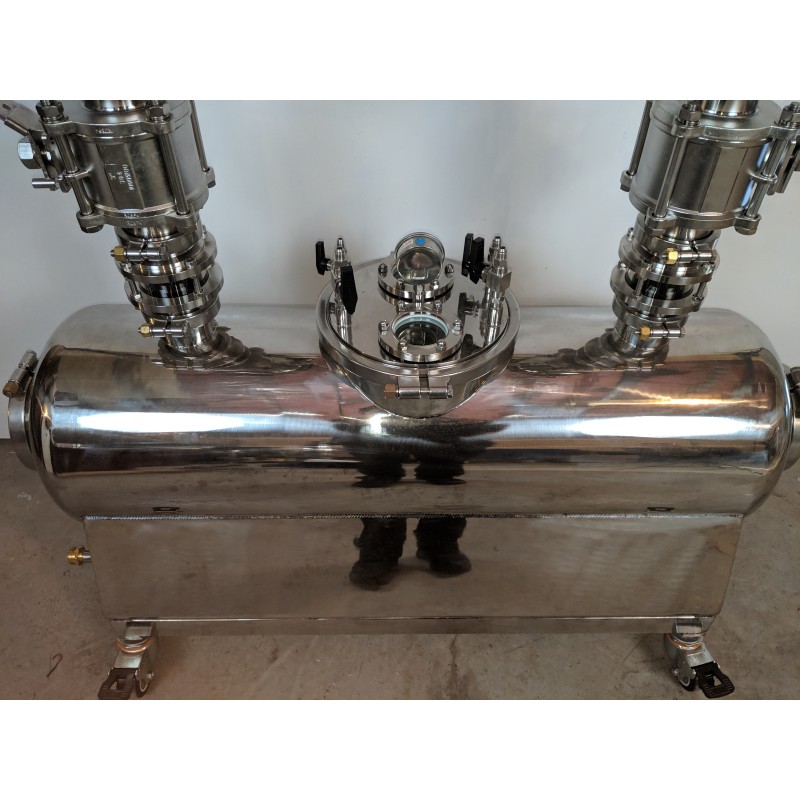

This stainless steel closed loop extraction system includes 2 stainless steel material columns 76'x6" w/33"x8" dewaxing sleeves and drain, material columns lids w/sight glasses, vacuum guages and 3/8"MNPT w/moulded spray balls. Bottom main honey pot has 3'x14" base w/wheels, 2 4" union sight glasses, 1 6" Triclamp w/6" lid & 3/8" MNPT + 1/4" MNPT, There are also 2 2" heavy duty 3pc ball valve & 2 2" inline sight glass before the lid.  4 3/8"" swagelock valves w/stainless steel jic fittings. 2 of the 3/8" MNPT fittings and valves on the honeypot can be used to drain the systyem off into reclaim tanks.



Unlike other extractor systems, Extractor King Extractors come with all the bells and whistles. No extra costs for dewaxing columns, sight glasses, swagelock valves, 3 peice ball valves, high pressure clamps, jacketed splatter platter with wheels and 1-1/2 times ss304 thickness. All these options and more come standard with all Extractor King Extractors.
