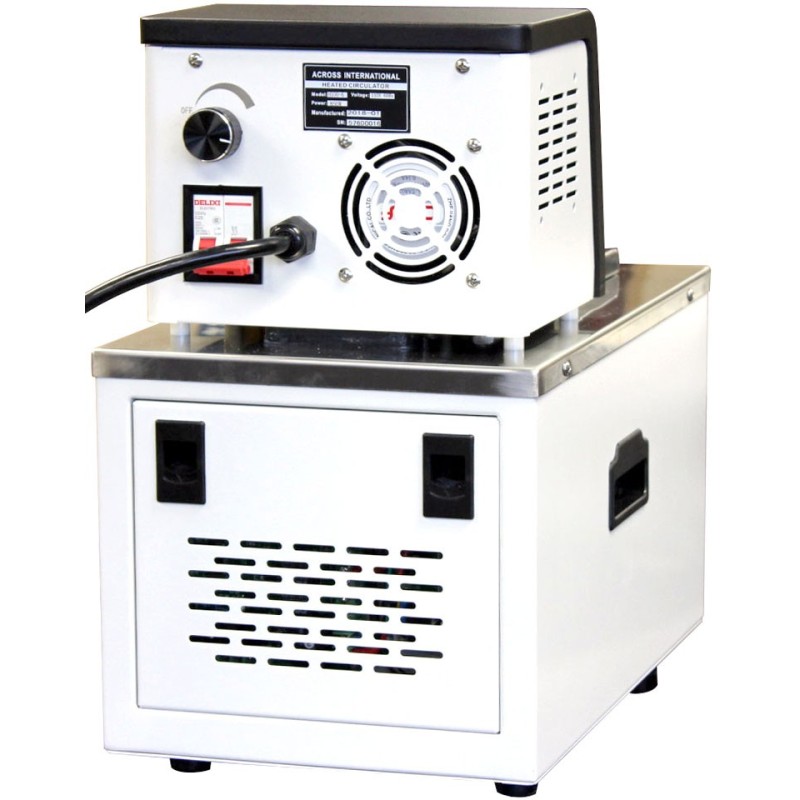

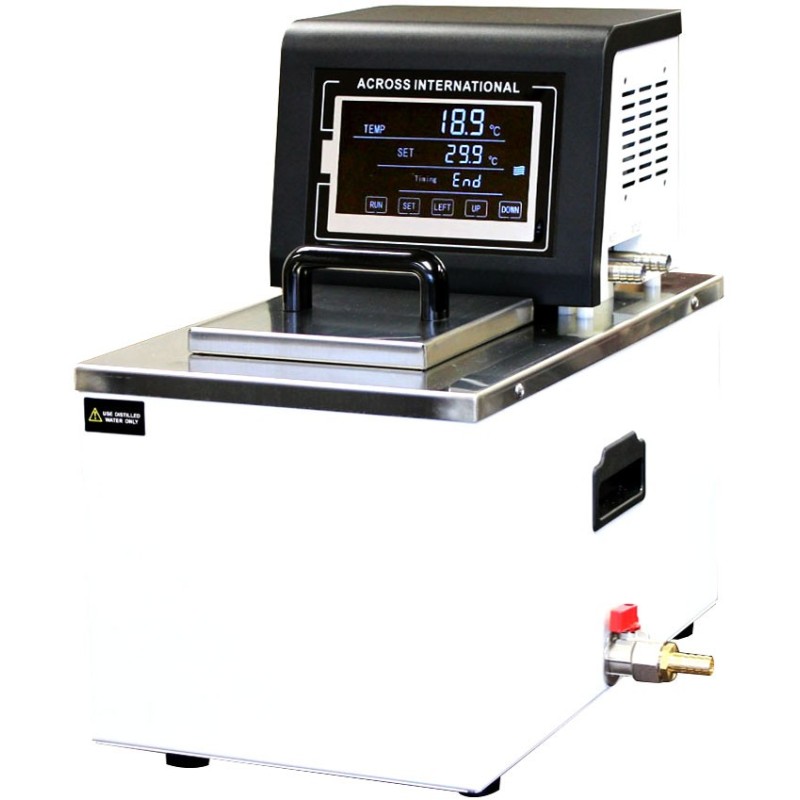

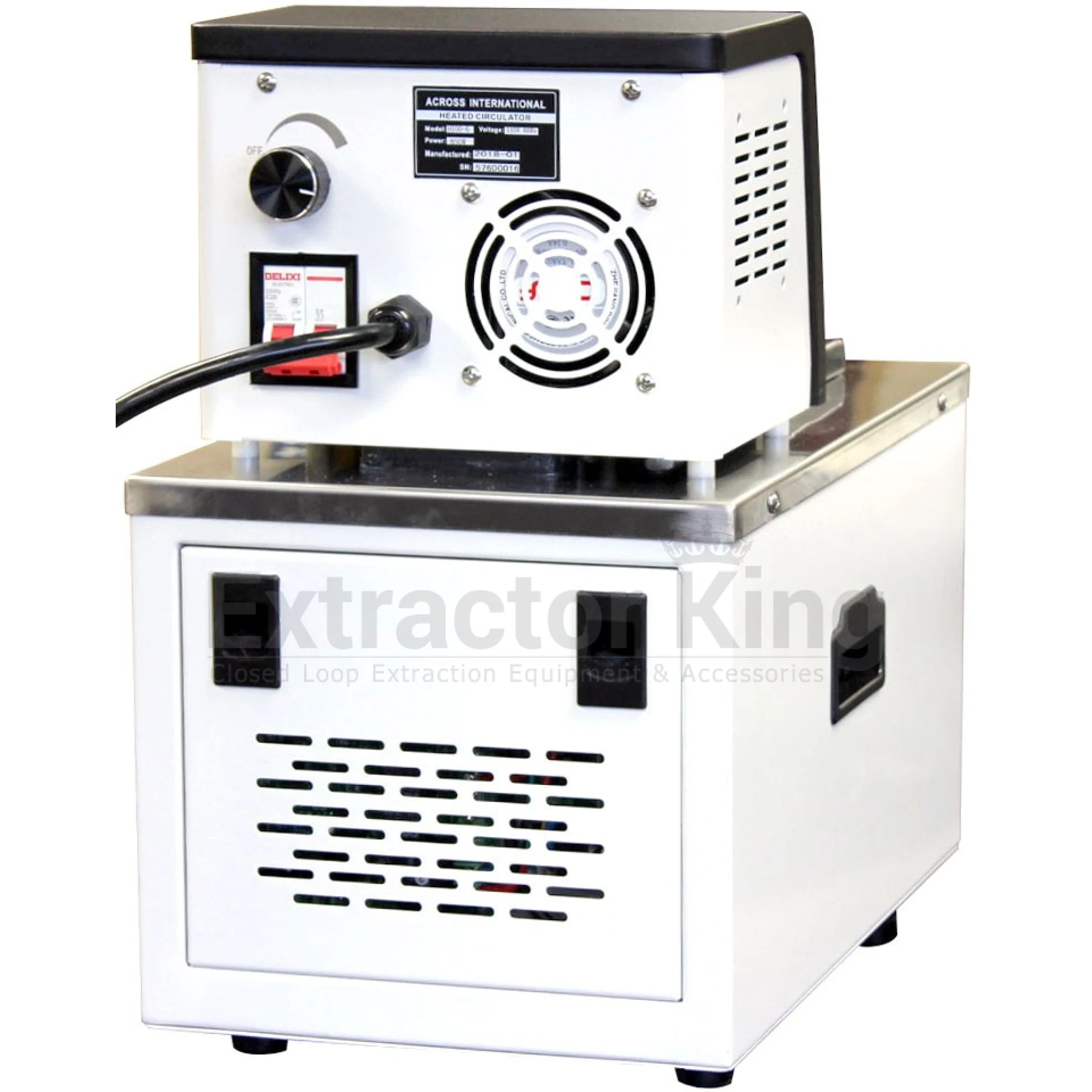

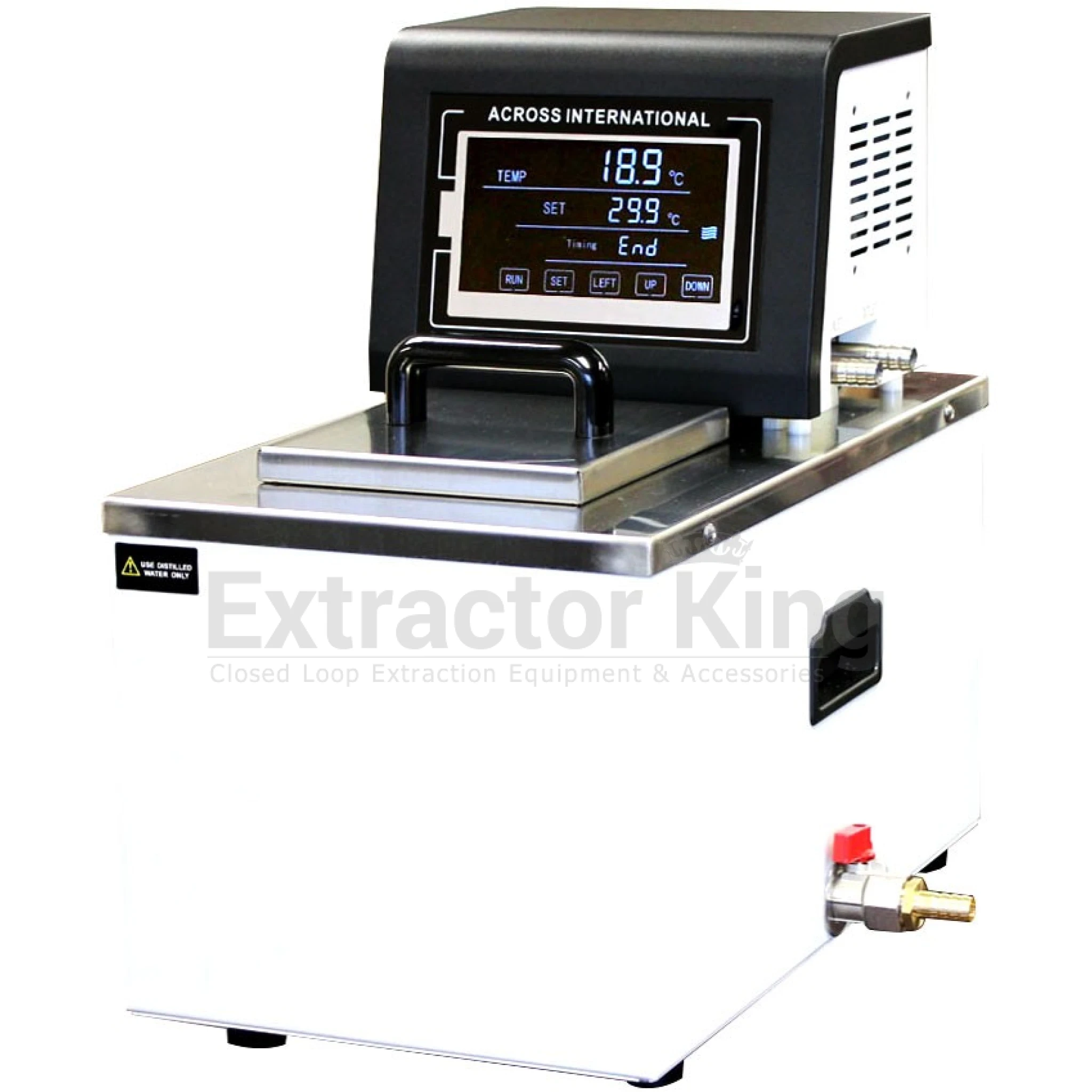

Ai 100°C 7L Capacity Compact Heated Recirculator 110V
New
The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
More info
| Model | H100-7 |
| Temperature range | Ambient to 100°C (No load) |
| Electrical requirements |
110V 60Hz 1-Phase 1,600 watts |
| Heating capacity | 1,500 watts |
| Recirculating pump | Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters |
| Reservoir |

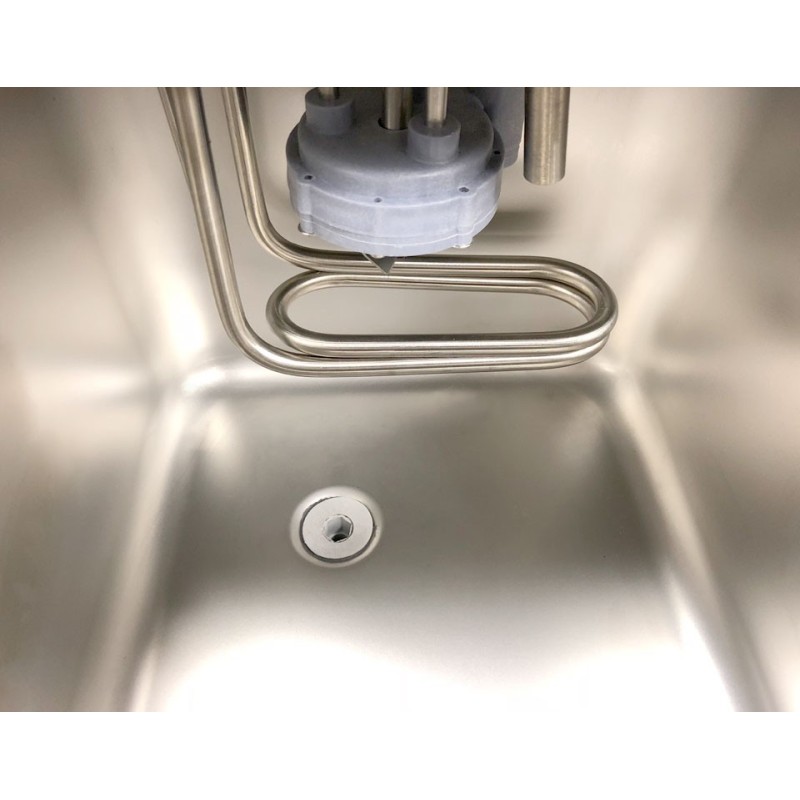

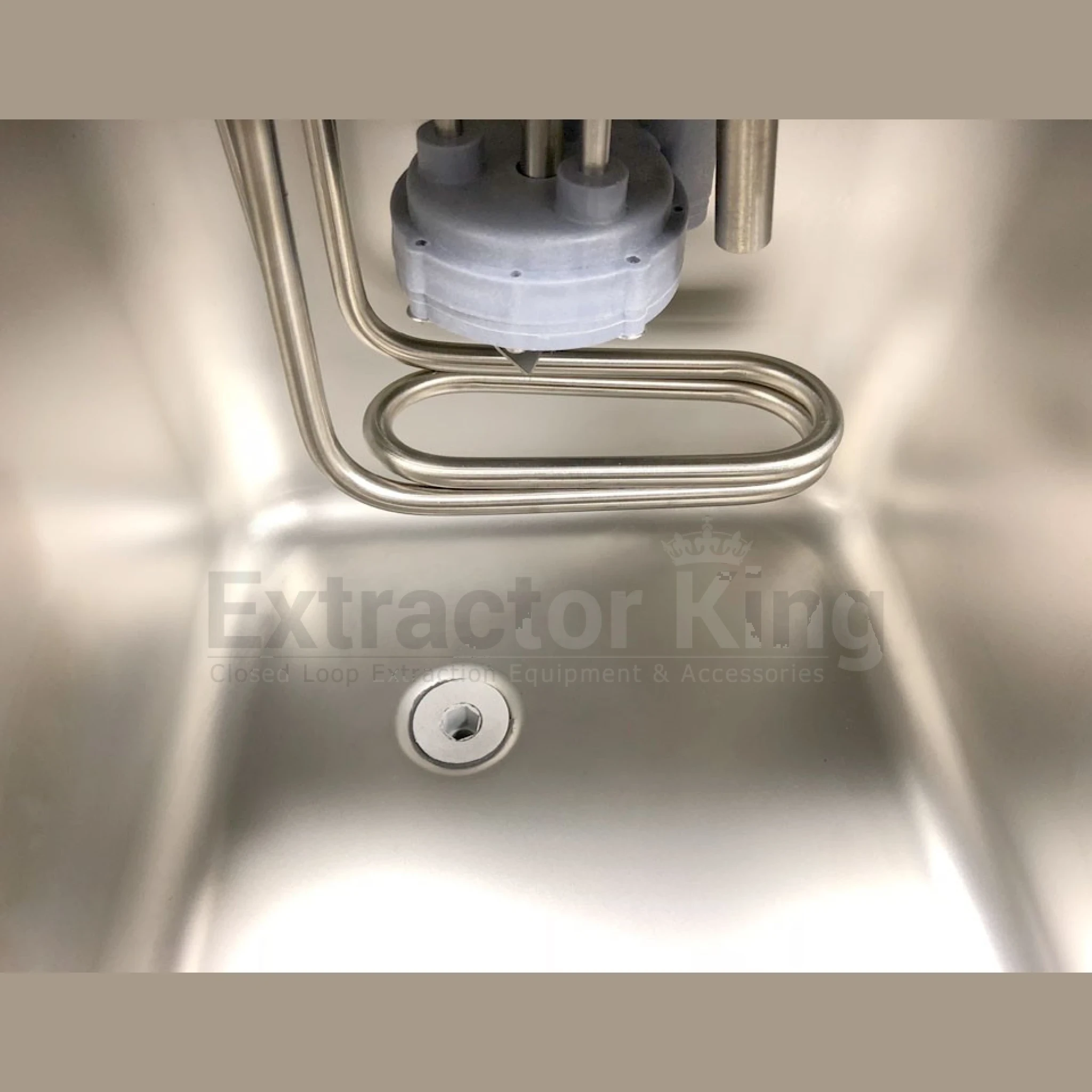

Dimensions: 9.5 x 12 x 7.5" (WxDxH) Material: Type 304 stainless steel Capacity: 7 liters or 1.9 gallons Thermo fluid connection: 3/8" hose barb x 2 Thermo fluid drain port: 3/8" hose barb with on/off valve |

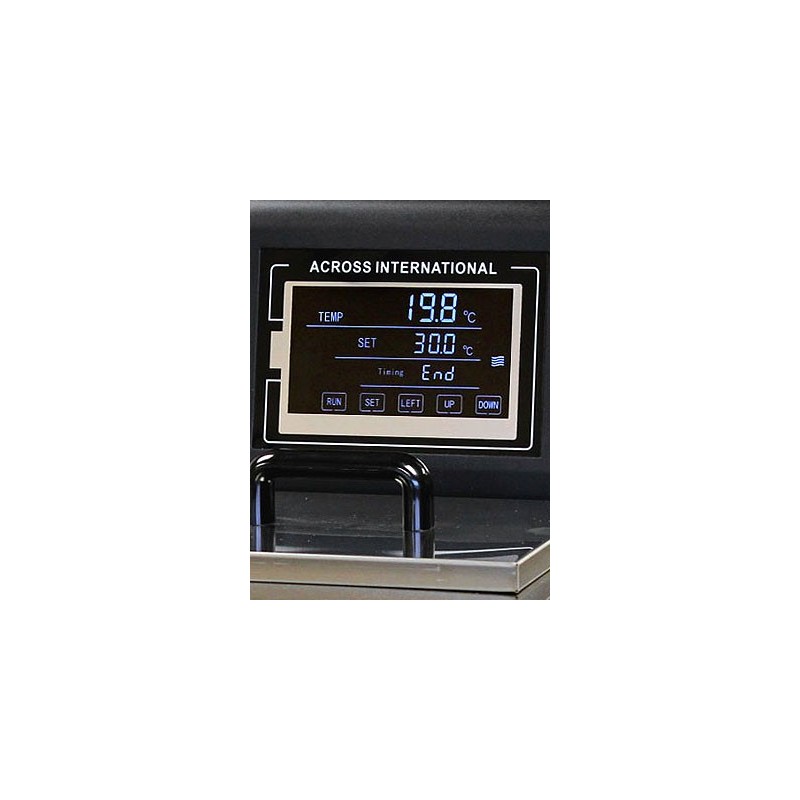

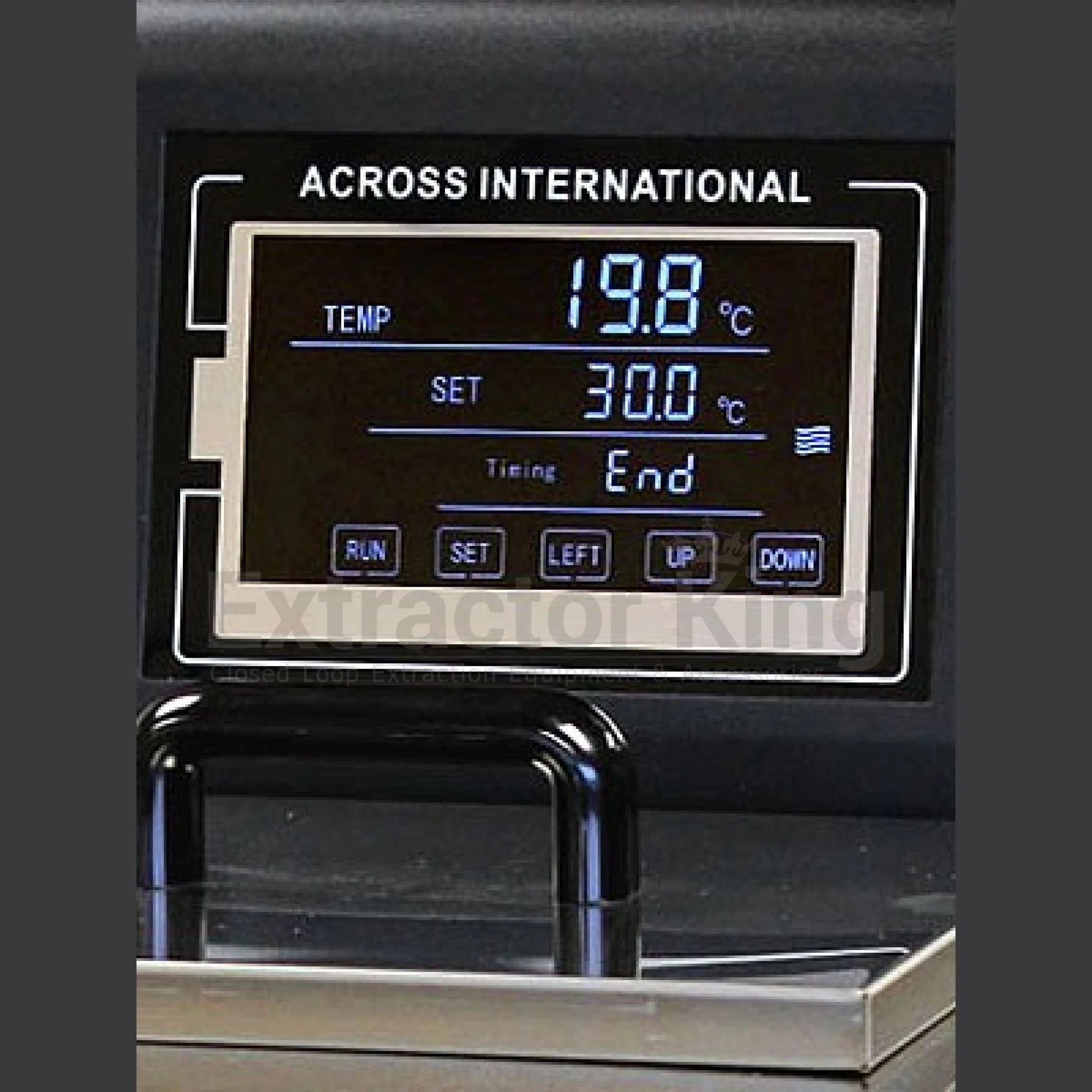

| Temperature controller | Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 100°C |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | No |
| Unit/shipping dimensions |
10.5 x 17 x 17" / 17 x 20 x 22" (WxDxH) |
| Unit/shipping weight | 30 Lbs / 36 Lbs |
| Safety | Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection |
| Warranty | One year |

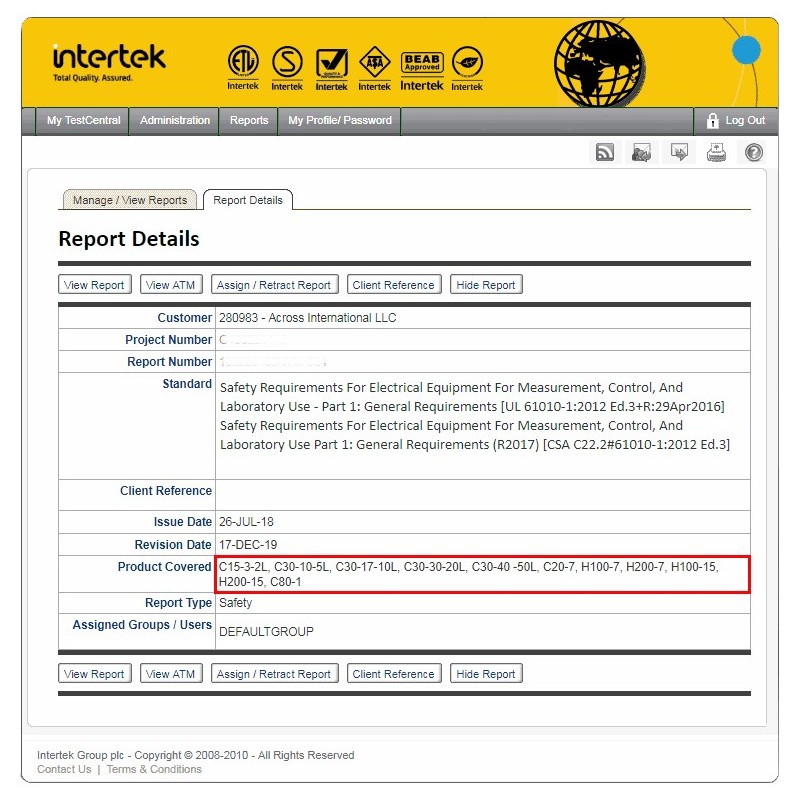

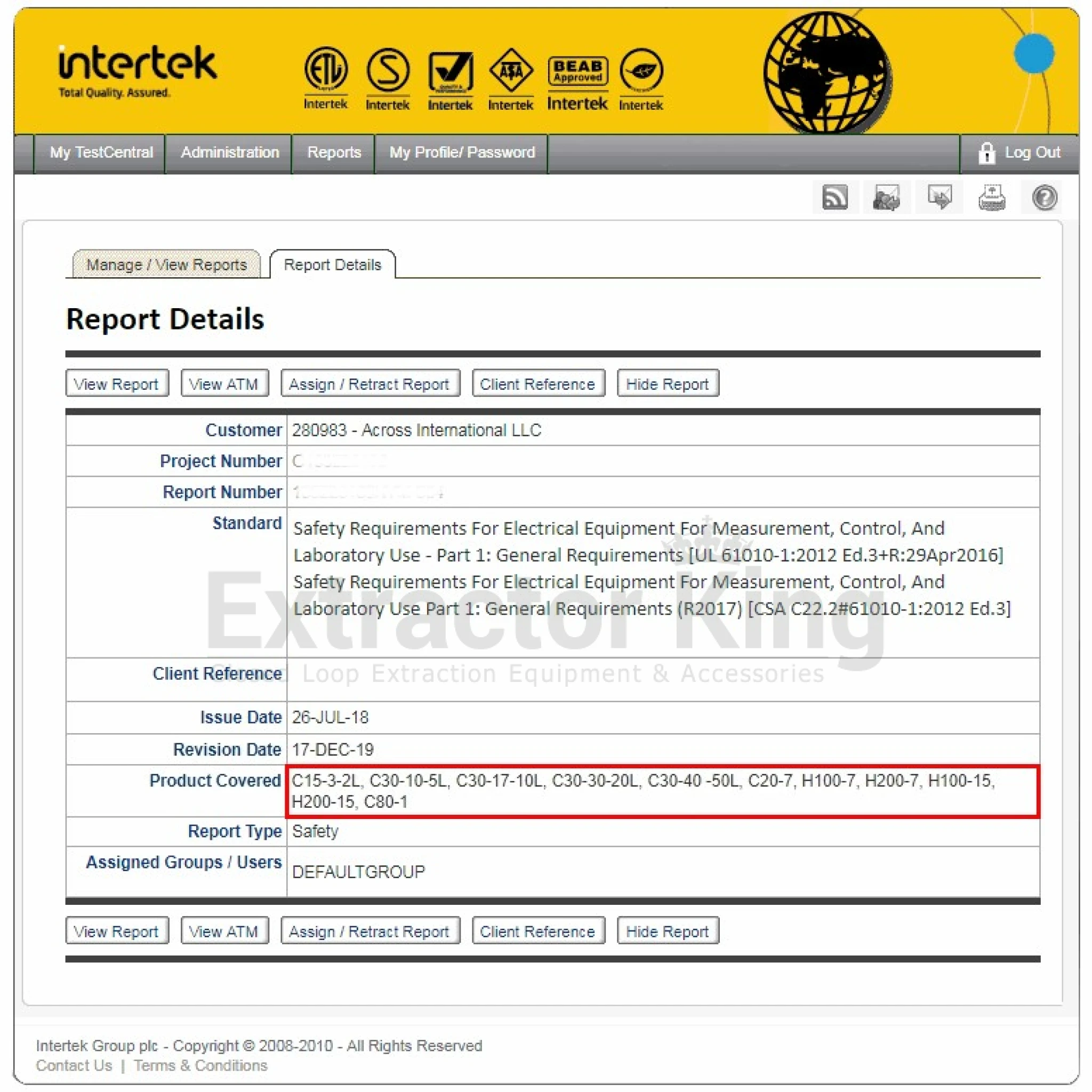

| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
|
Part description |
Quantity |
Part image |
| Ai H100-15 100°C 15L heated recirculator | 1 pc |
|

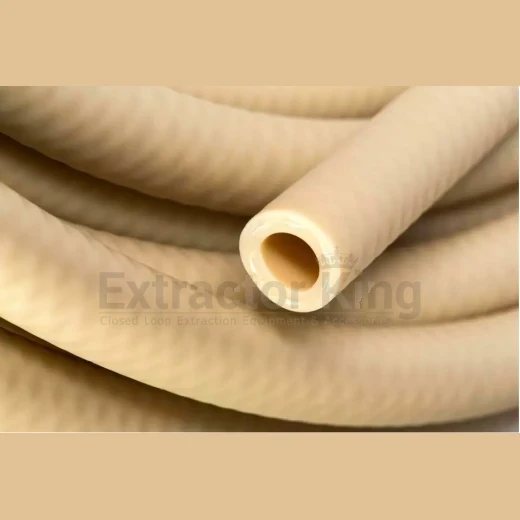

| 3/8" tubing (10 ft) |
1 pc |  |
| 1/2" NPT to 3/8" hose barb drain port adapter | 1 pc |  |
| User's manual | 1 pc |
|
