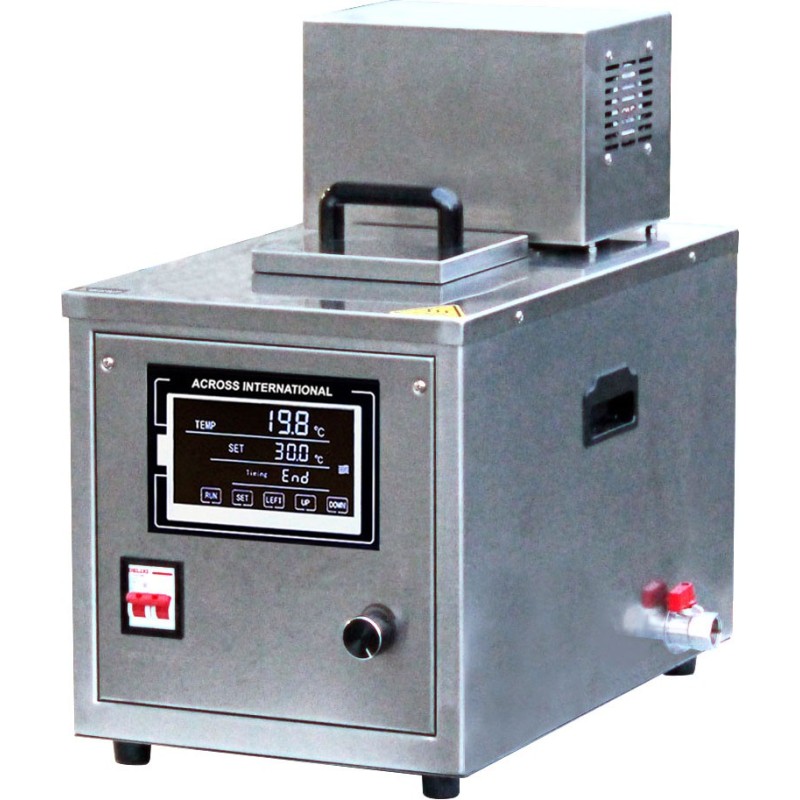

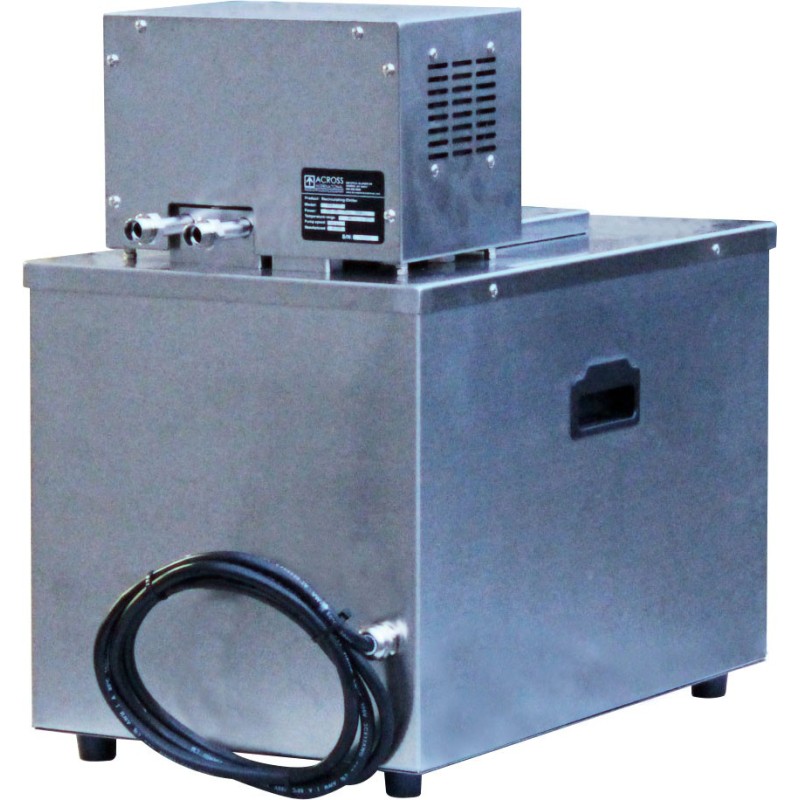

Ai 200°C 7L SST Compact Desktop Heated Recirculator 220V
New
The new Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
More info
Features
- ETL tested to UL and CSA standards
- Powerful 2,800 watts heater
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
- Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation
Optional M16 male to 3/4" NPT adapters for Ai glass reactors $118.99
- M16x1.0 male to 1/2" NPT female x 2
- 1/2" NPT male to 3/4" NPT male x 2
| Model | H200-7 |
| Temperature range | Ambient to 200°C |
| Electrical requirements | 220V 60Hz 1-Phase 2,900 watts |
| Heating capacity | 2,800 watts |
| Recirculating pump | Pumping speed: 21 liters per minute, adjustable Maximum head: 16 feet or 5 meters Power: 100 watts |
| Reservoir |
Material: Type 304 stainless steel Capacity: 7 liters or 1.8 gallons Thermo fluid connection: M16 x 2 Fluid drain port: 3/8" hose barb with on/off valve |
| Temperature controller | Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 200°C |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Unit/shipping dimensions | 11.5 x 19 x 19" / 16 x 24 x 22" (WxDxH) |
| Unit/shipping weight | 35 Lbs / 50 Lbs |
| Safety | Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection |
| Warranty | One year |

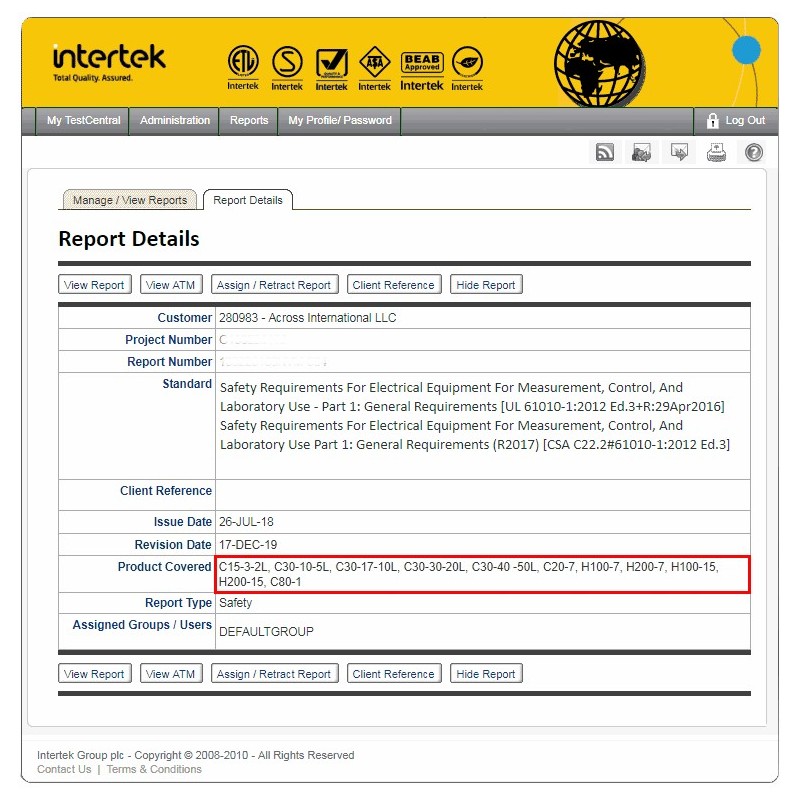

| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
|
Part description |
Quantity |
Part image |
| Ai H200-15 200°C 15L heated recirculator | 1 pc |
|
| 250°C rated flexible insulated stainless steel tubing (40" L), pipe connection with M16 connection fitting | 2 sets |  |
| 1/2" NPT to 3/8" hose barb drain port adapter | 1 pc |  |
| M16 Nuts, Ferrules and Sleeves | 4 Sets |  |
| User's manual | 1 pc |
