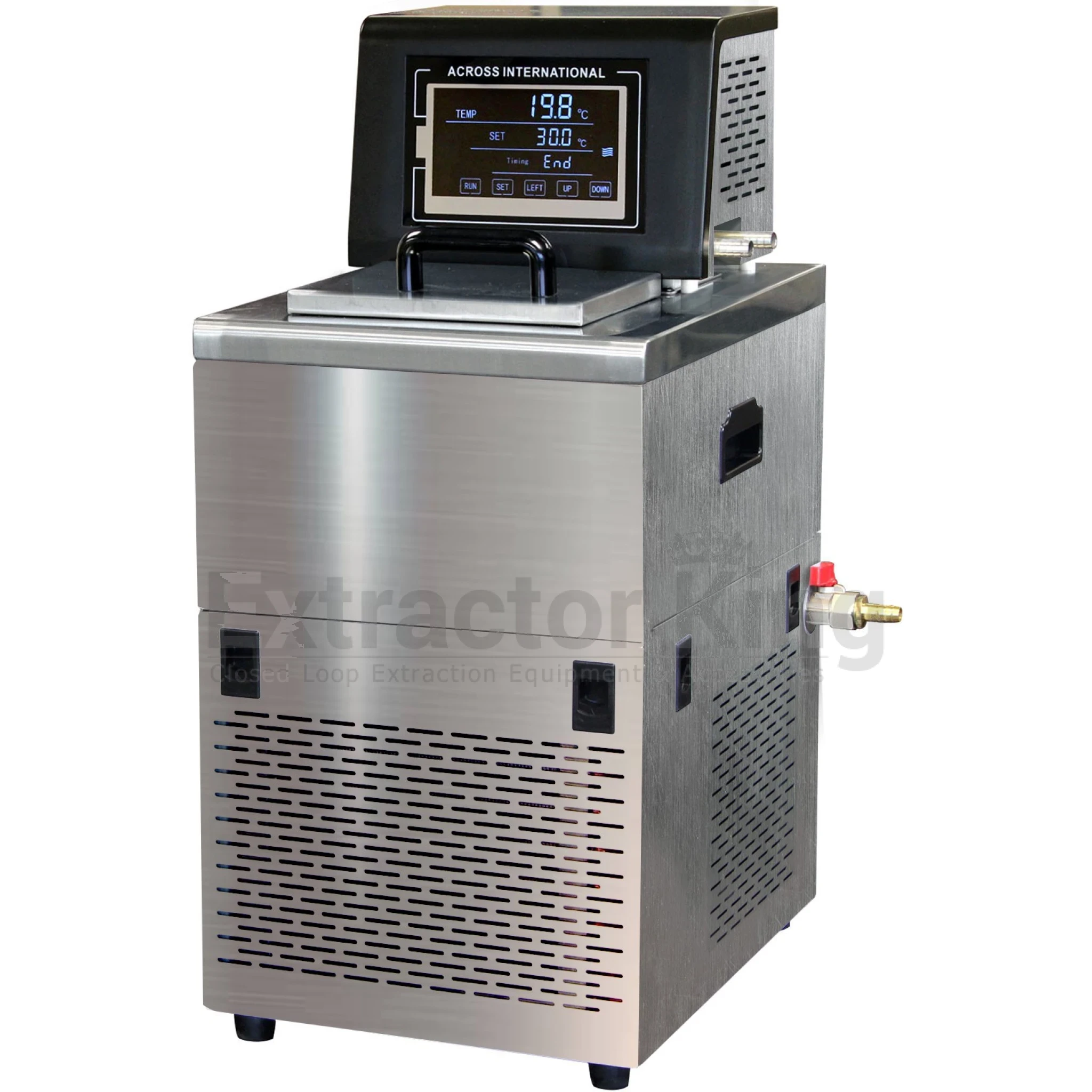

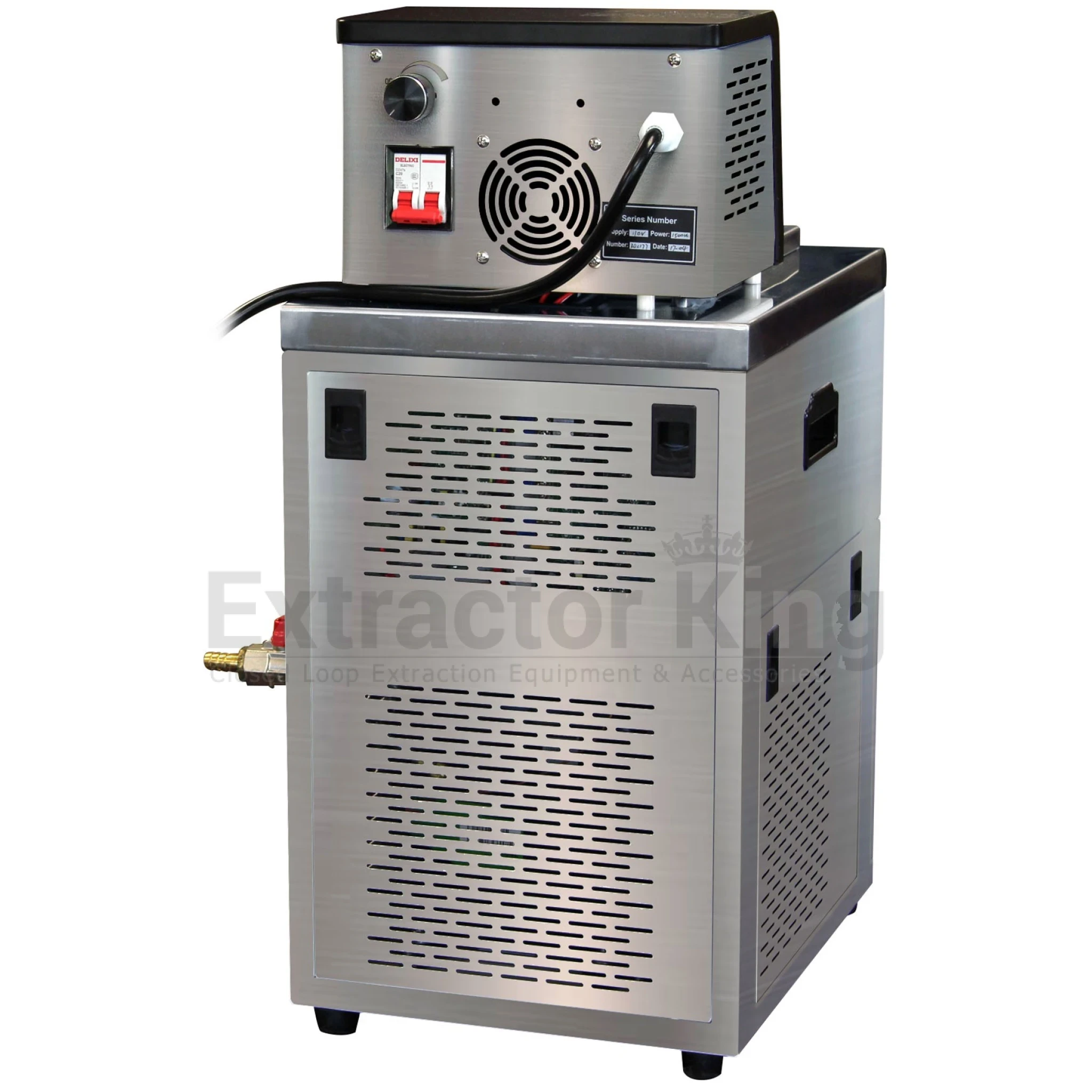

Ai SST -20°C To 99°C 7L Compact Recirculating Chiller
New
Ai C20 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications
More info
Ai C20 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while 2nd generation controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -20C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C20 recirculating chiller features
- ETL tested to UL and CSA standards
- All stainless steel finish
- Powerful 2,000 watts heater
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
- No dry ice or liquid nitrogen needed
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Eco-friendly R404A refrigerant
- Small footprint saves valuable lab space
- Cost saving as the water consumption is completely eliminated
- Connection tubing included
- Recommended for 2L rotary evaporators and 2L-10L distillation systems
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
| Model | C20-7sst |
| Temperature range | -20°C to +99°C (No load) |
| Electrical requirements |
110V 60Hz or 220V 60Hz 1-Phase 2,500 watts |
| Compressor | Make: SECOP (formerly known as Danfoss), Germany Number of compressor: one Refrigerant: R404A (190g) Cooling capacity: 420W at 20°C 410W at 10°C 390W at 0°C 350W at -10°C 300W at -20°C |
| Heating capacity | 2,000 watts |
| Recirculating pump | Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters |
| Maximum pressure: | 6.5 psi |
| Reservoir |
Dimensions: 8 x 10 x 5.5" (WxDxH) |
| Temperature controller |
Type: Digital microprocessor PID controlled |
| Recommended coolant |
For 50°F/10°C or higher: Distilled water Between 50°F/10°C and -4°F/-20°C: 50% ethylene glycol + 50% distilled water |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | No |
| Unit/shipping dimensions |
12 x 15.5 x 26" / 15 x 20 x 30" (WxDxH) |
| Unit/shipping weight | 68 Lbs / 100 Lbs |
| Safety | Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection Compressor delay start protection |
| Recommended for |
Ai 2L, 5L or 10L short path distillation systems Ai 2L SolventVap rotary evaporators |
| Warranty | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
|
Part description |
Quantity |
Part image |
| Ai C20-7 -20°C 7L recirculating chiller | 1 pc |
|
| 3/8" insulated chilling fluid tubing |
5 ft x 2 |  |
| 1/2" NPT to 3/8" hose barb drain port adapter | 1 pc |  |
| User's manual | 1 pc |
|
