New Ai SuperVac 11.3 Cfm Corrosion-Resist 2-Stage Pump View larger

Across international SuperVac 11.3 Cfm Corrosion-Resist 2-Stage Pump 220V

New

The new Ai SuperVac 11.3 cfm commercial grade vacuum pump

More details

$4,457.50

Payment Providers
Payment Providers

Add to my wishlist

More info

The new Across International SuperVac 11.3 cfm commercial grade vacuum pumps are now UL certified (115V model), this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. They are also more powerful (1,100kW vs 750W) and corrosion resistant. These pumps are designed for reliable long time continuous operation, they will take your equipment's vacuum down to 0.3 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.

Multi-level gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.

It is important to note that pumps should always be ran in a well ventilated area.

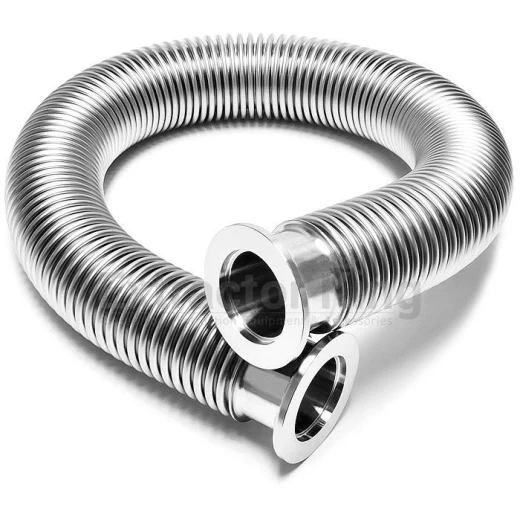

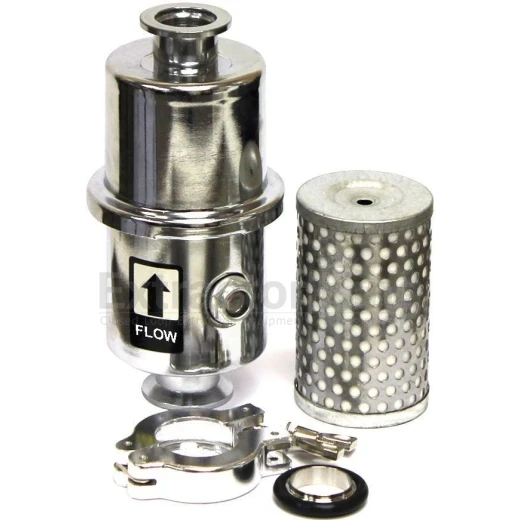

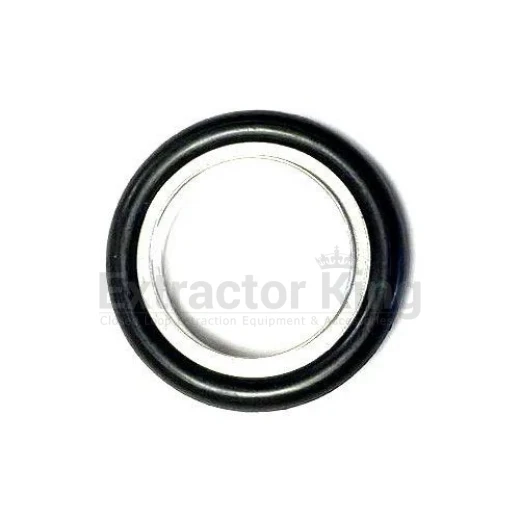

High capacity exhaust oil mist filter ($250 USD value), KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included Free.

 Electrical requirements
 115V 60Hz or 230V 50/60Hz, single phase, 1,100 watts
 Pumping rate
 11.3 cfm (115V 60Hz), 9.3 cfm (230V 50/60Hz)
 Ultimate vacuum without gas ballast
 0.3 micron/millitorr
 Ultimate vacuum with gas ballast
 6 micron/millitorr
 Inlet/outlet connection
 KF25/NW25 flange
 Oil volume
 1.5 liter / 1.59 quart
 Motor rate  1715 rpm (at 60Hz) or 1440 rpm (at 50Hz)
 Working temperature  5 to 40°C
 Unit/shipping dimensions (LxWxH)
 21x7.5x12" / 36x10x17"
 Unit/shipping weight
 72 Lb / 90 Lb

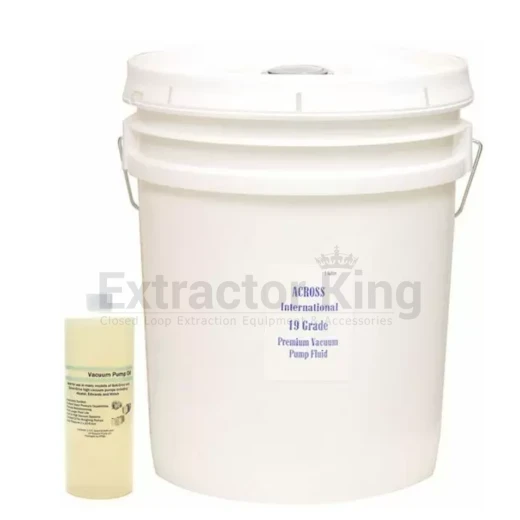

 Recommended oil  Ultra-grade 19
 Noise level  < 58 dB
 Warranty  Two years
 Compliance

 UL (E500328), CE

 UL Certification NOT available for the 230V model
