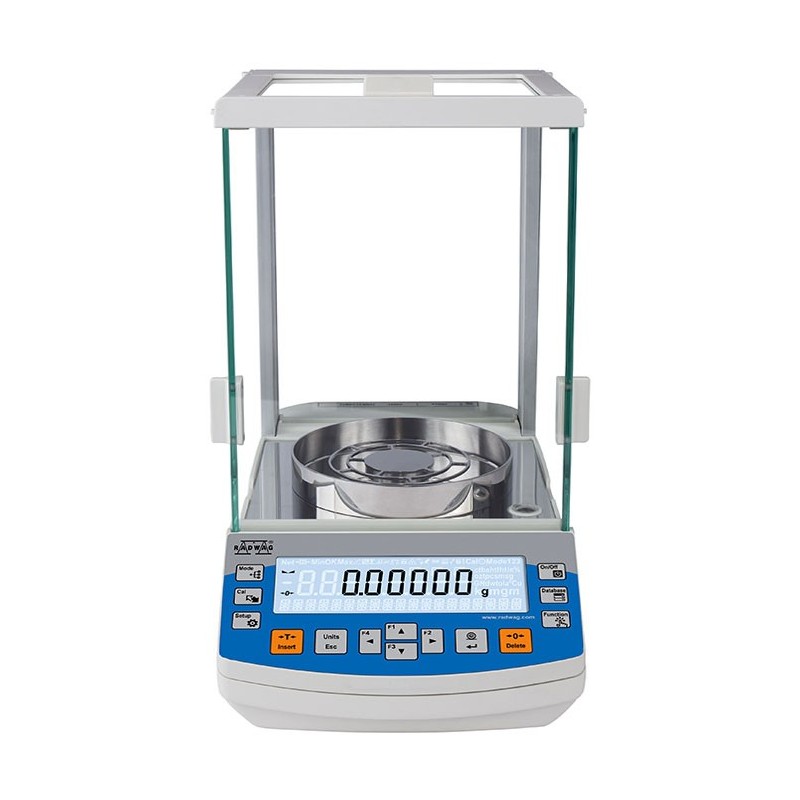

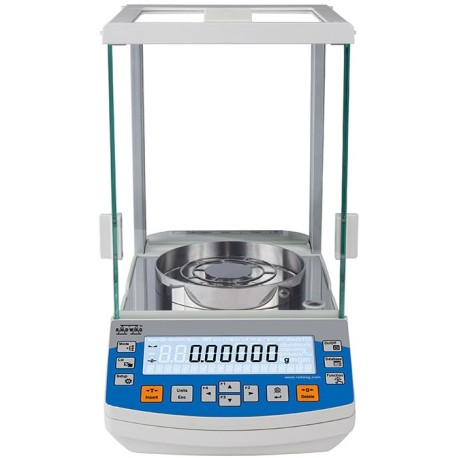

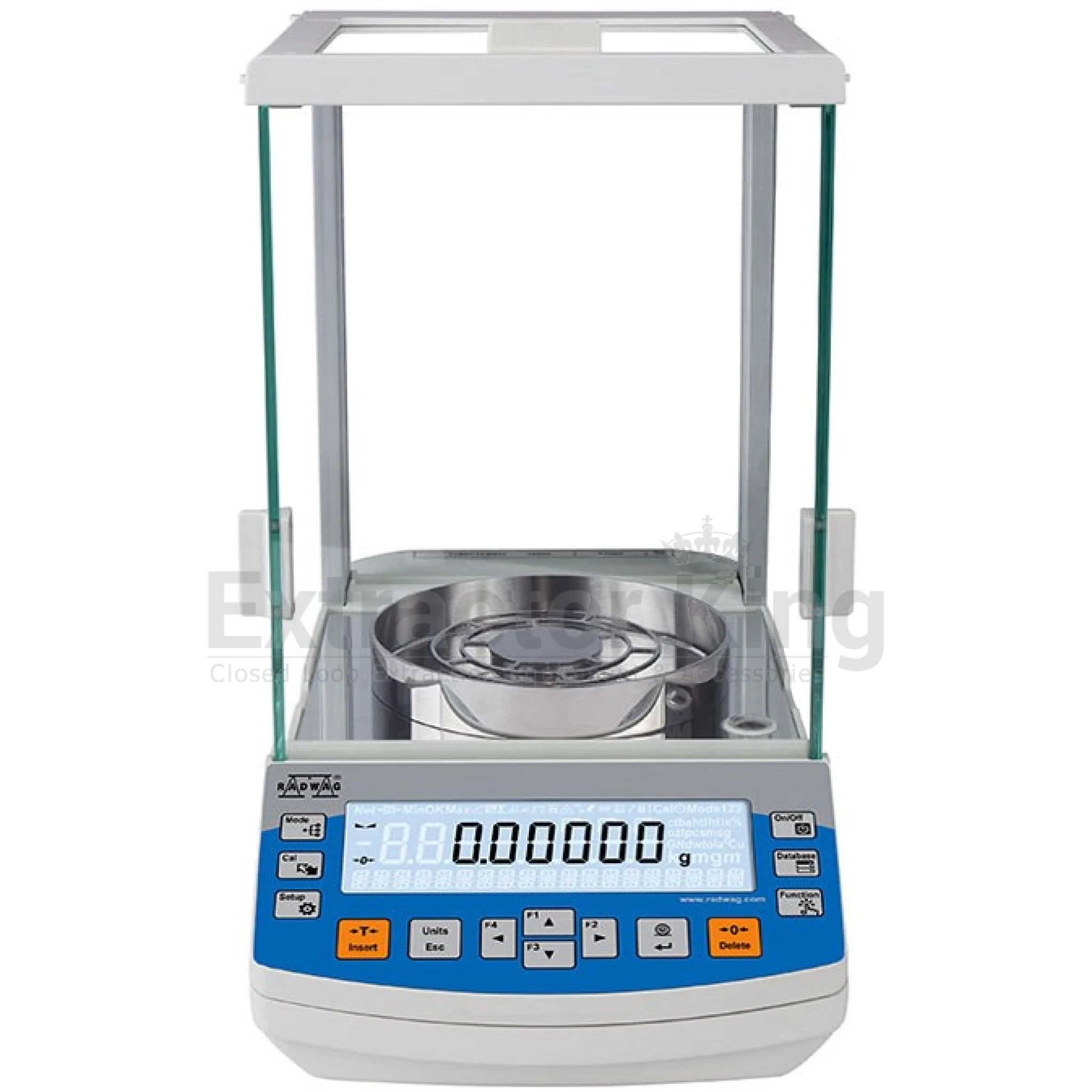

Radwag AS R2 PLUS Radwag 120g Capacity 0.01mg Readability Ø3.5" Analytical Balance

Ergonomic Mechanical Design

The latest AS R2 PLUS analytical balance features spacious weighing chamber, and the open-door clearance facilitates easy access to the weighing pan. With this it is possible to use laboratory glassware of various sizes. New aluminium base is a guarantee for weighing system stability.

Dual-CLICK system allows tool-free assembly and disassembly of the weighing chamber, and a special design of guides for weighing chamber panes (no rims) makes keeping the device clean convenient. Innovative construction solutions increase balance durability and reliability in long-term operation.

Levelling System

Standard AS R2 PLUS balances are equipped with a levelling device located at the front of the weighing chamber, which facilitates level control. Levelling operation is now simplified and easier due to the reduced quantity of adjustable supporting points (2 points).

Internal Adjustment

Modernized internal adjustment system guarantees accurate indications in extremely unfavourable conditions.

Elimination of Electrostatics Influence onto the Weighing Result

Special antistatic pane coating eliminates the influence of electrostatics onto the weighing result.

*Antistatic coating has been applied in balances with the readability of d=0.01 mg

Intuitive Operation

Balances are equipped with LCD display ensuring clear presentation of the weighing result. Direct access to functions and databases is possible via the following keys:

• Database direct access to databases
• Function direct access to basic functions
• F1-F4 programmable function keys and menu navigation keys

AS R2 PLUS analytical balances signal operated working mode, computer connection, battery status, weighing and service functions via pictograms. The quantity of displayed weighing units is also expanded. Dedicated status bar enables display of additional messages, e.g. product name, tare value. Real-time mass measurement is presented using bar graph.

ALIBI Memory

Data safety is ensured by the ALIBI memory integrated into AS R2 PLUS balances, which enables record of up to 100 000 weighings. ALIBI guarantees continuity of data collection over a long period of time.

Data Protection

Access to valuable information is possible after logging. The administrator manages the data access configuration.

Databases

The information system is based on 5 databases, which allows several users to work with several product databases, and the registered weighing results can be subject to further analysis.

The data is registered in 5 databases:

• Operators (up to 10 users)
• Products (up to 1000 products)
• Weighings (up to 5000 weighings)
• Tares (up to 100 tares)
• ALIBI memory (up to 100 000 weighings)

Communication Interfaces

The functionality of AS R2 PLUS balances can be expanded using the following communication interfaces: USB-A, USB-B, RS 232, Ethernet, Wi-Fi (option). The additional USB port located at the front of the balance enables easy and fast communication with the USB flash drive, it is possible to connect additional devices via this port too.

AS PLUS balances are equipped with Kensington Lock, which allows to secure the device against theft.
