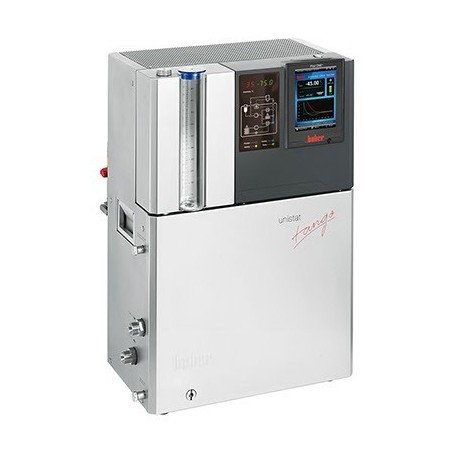

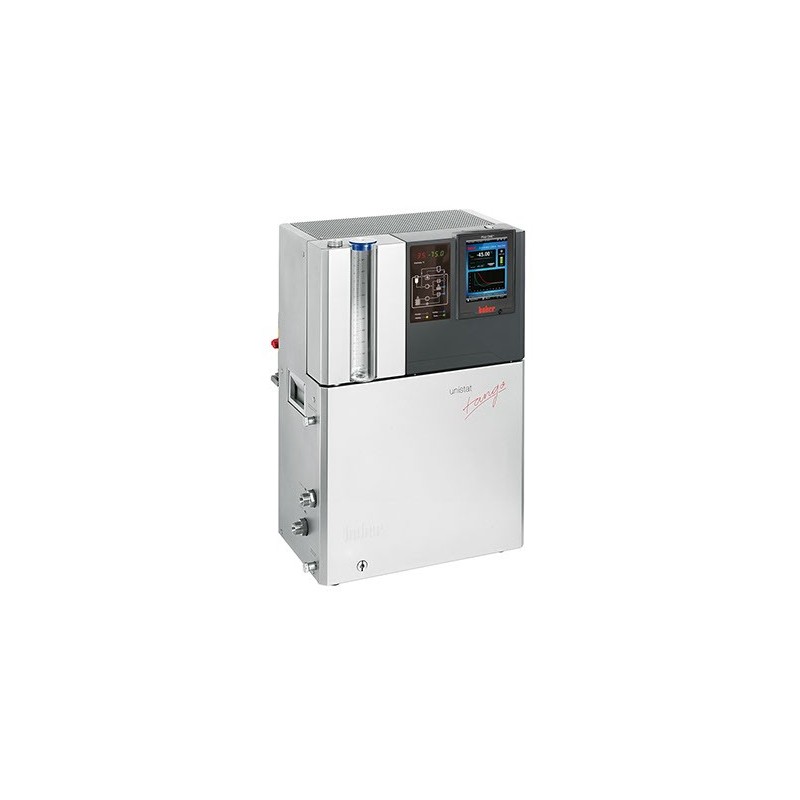

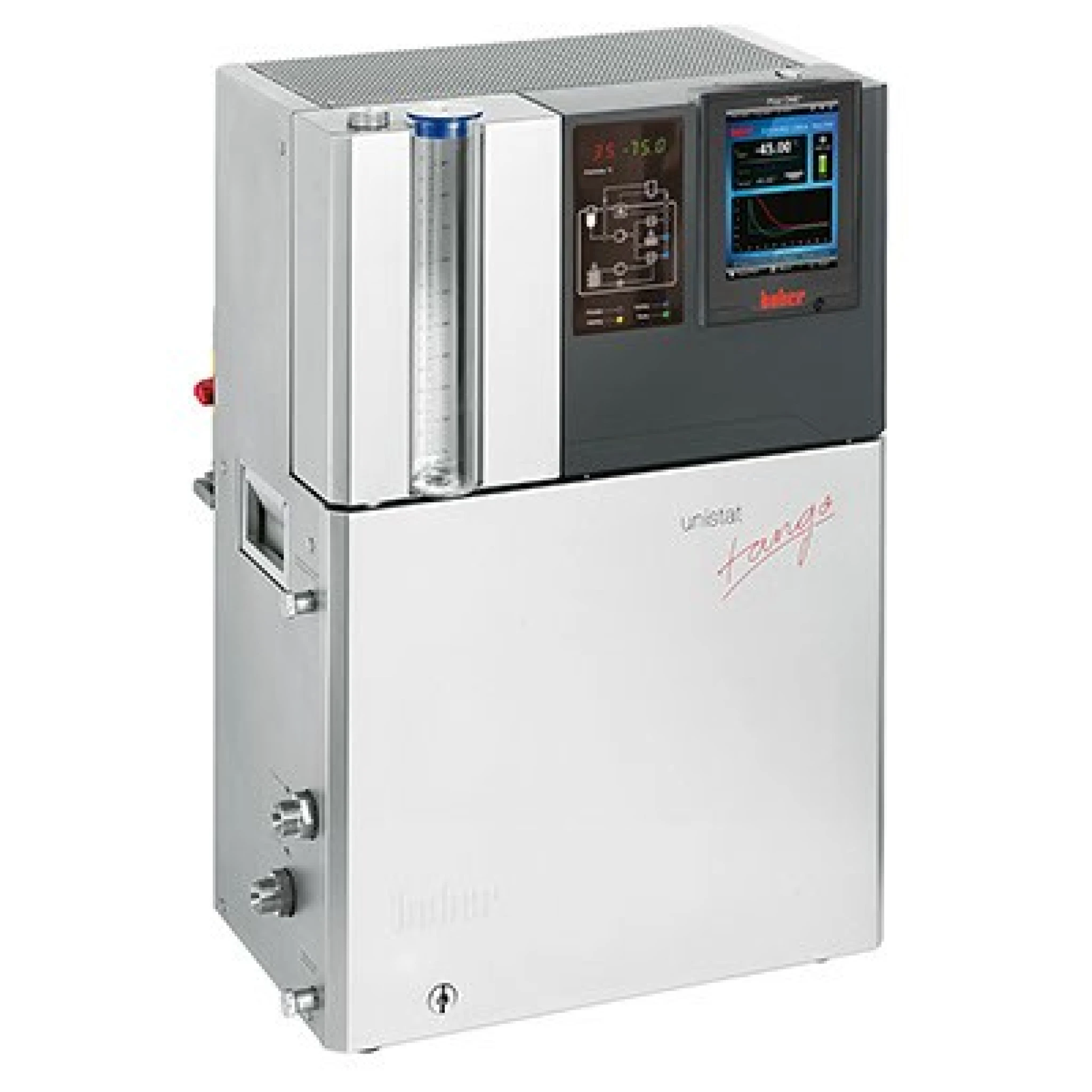

New HUBER Unistat Tango -45°C To 250°C With Pilot ONE View larger

HUBER Unistat Tango -45°C To 250°C With Pilot ONE

New

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands.

More details

$39,940.87

Payment Providers
Payment Providers

Add to my wishlist

More info

Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7 touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer.



The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.



Huber Unistat Tango features

  • Precise and reproducible temperature control results
  • Fastest heating and cooling rates
  • Wide temperature ranges with no fluid change
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Adaptive temperature control, self-optimising
  • Efficient circulation pump
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included
  • Natural refrigerant



General information & temperature controller
Temperature range -45...250C
Temperature stability 0,01C
Temperature control TAC, self-optimizing (True Adaptive Control)
Display resolution 0,01C
Alarm message optical, acoustical
Controller Pilot ONE (E-grade"Professional")
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) 426 x 327 x 631mm
Weight 56kg
Heating / cooling capacity
Heating capacity 3kW
Cooling capacity
250 200 100 0 -20 -40 C
0,7 0,7 0,7 0,7 0,4 0,06 kW
Cooling machine air-cooled
Refrigerant R1270 (0,15 kg)
Circulation pump
Pressure pump max. 55 l/min;0,9 bar
Pump connection M24x1,5 AG male
Permissibleviscosity 50mm/s
Connections
Pt100 connection Pt100
Analogueinput via optional Com.G@te
Analogueoutput via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp. 5...40C
Sound pressure level 62dB(A)
Filling volume min. 1,5Litres
Volume of expansion 2,8Litres
Power supply 230V 1~ 50Hz
Current max. 16A
Fusing 16 A



 Part description

 Quantity

Part image

HUBER Unistat Tango -45°C to 250°C with Pilot ONE 1 pc

Mini-USB Cable 1 pc

E-Grade “Professional” (digital) 1 pc

Adaptor M16x1 male to M24x1.5 female
2 pcs

User's manual 1 pc
