MVP Recovery Pump - 150 PSI

New

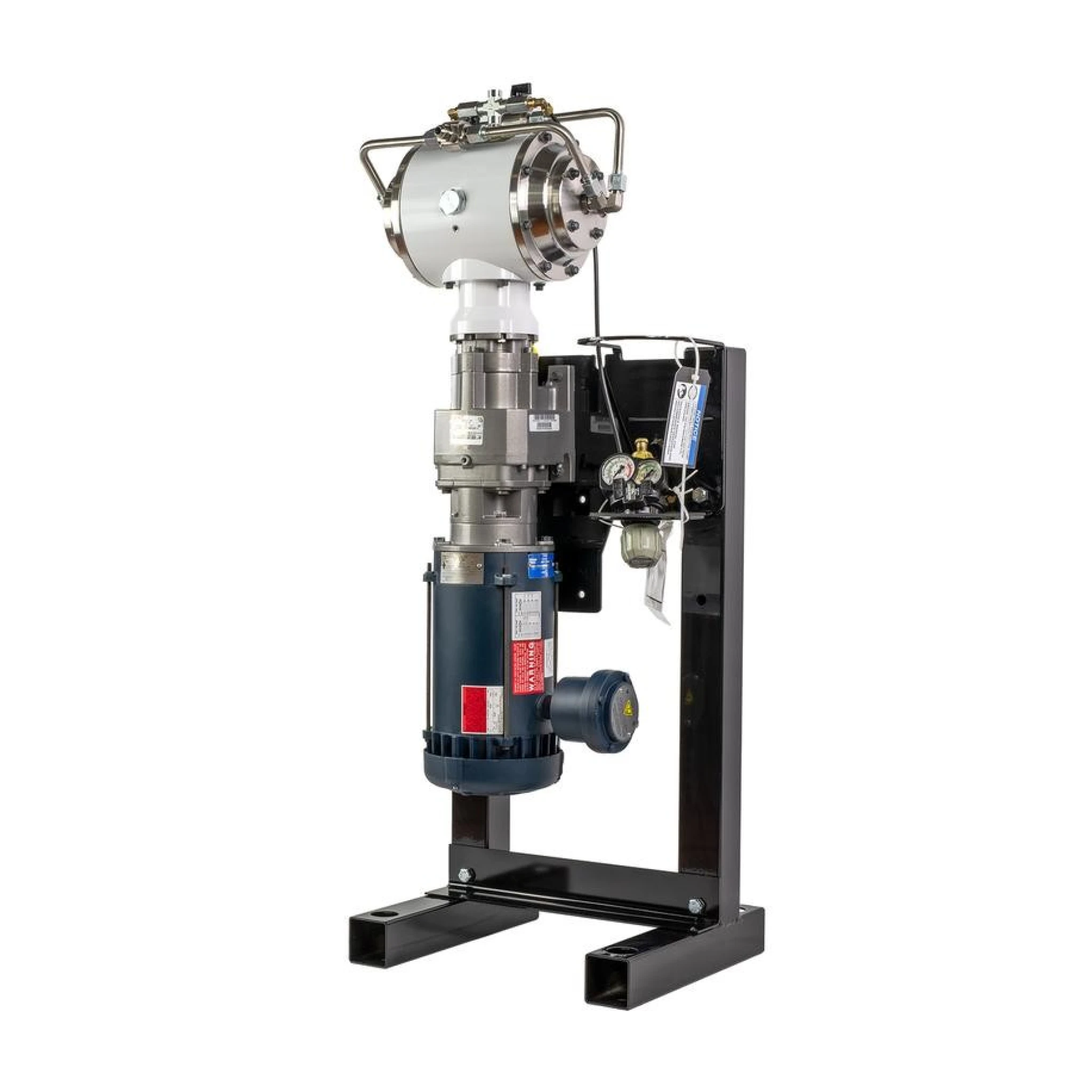

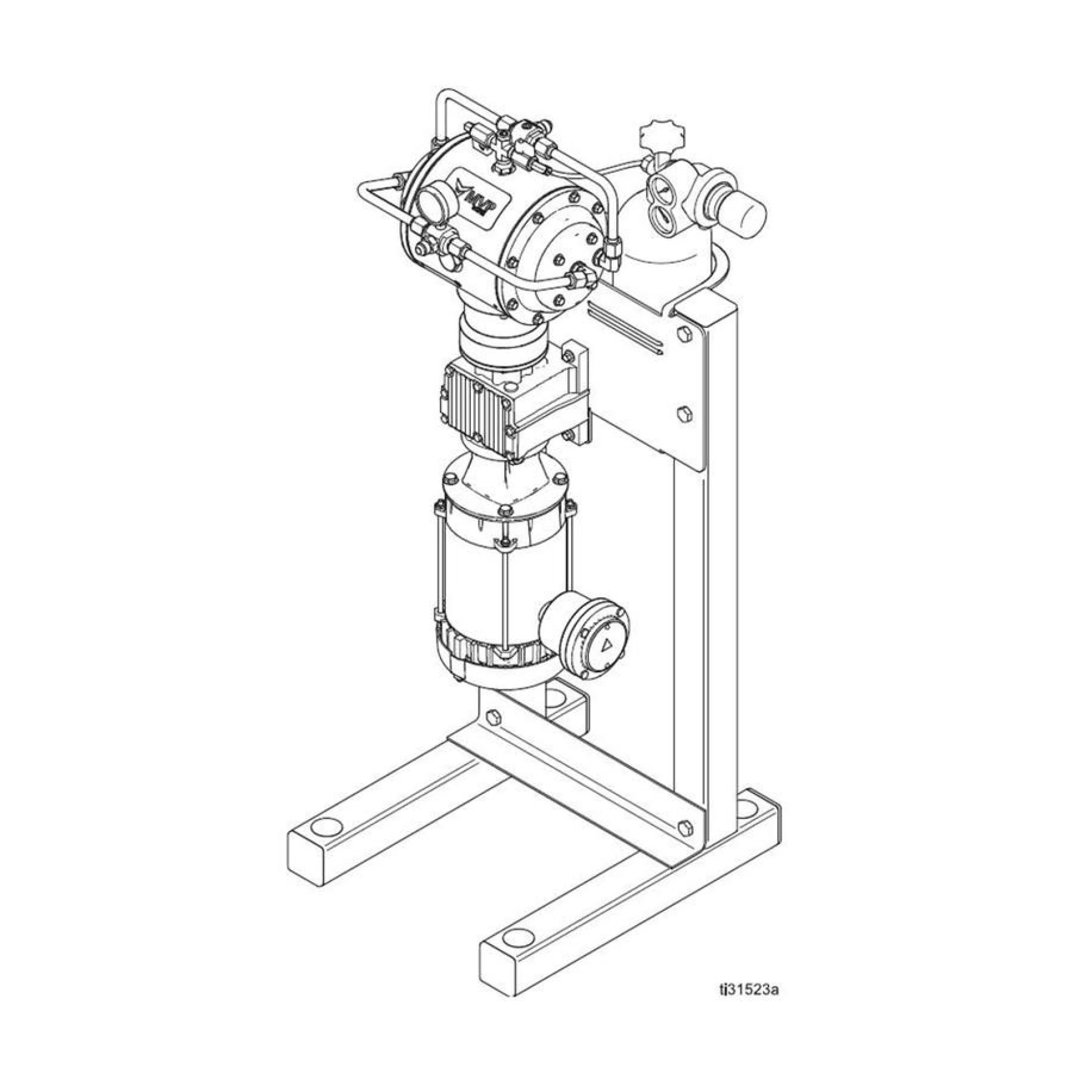

The Master Vapor Pump Model MVP-150-1PH is a certified gas recovery pump designed to operate at 150 PSI. This pump is designed specifically for LP-Gas vapor recovery and is ideal for butane or butane / propane mixtures.  Please note that the standard Single Phase and Three Phase models are UL Certified and that the ATEX Three Phase is CE Certified

More details

Payment Providers
Payment Providers

Add to my wishlist

More info

Engineering Specifications:

  • Recover LP-Gas vapor at OVER 6 CFM (cubic feet per minute)
  • Recover butane at up to 1.5 LB/MIN (pounds per minute)
  • Recover and recondense butane at OVER 18 GPH (gallons per hour)
  • Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor: 2 HP, 3600 RPM, 60 HZ
  • Pump speed: 220 CPM (cycles per minute) at 60 HZ
  • Size: 17.0” x 19.9” base x 46” tall
  • Weight: 182.5 lb (82.8 kg)

Motor Option:

  • Model MVP-150-1PH : Single-phase: 115/208-230V, 20/10 FLA (full load amps) - UL Certification
  • Model Model MVP-150-3PH : Three-phase: 208-230/460V, 5.2/2.6A FLA, Inverter-rated - UL Certification
  • Model MVP-150-ATEX : Three-phase: 240/460V , 5.44A/3.15 FLA (full load amps) - CE Certification

Compliance Details:

  • Compliant with NFPA and UL standards for C1D1 motors and LPG vapor recovery
  • Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
  • One year manufacturer’s warranty (see Operation Manual)
  • Made in the USA
