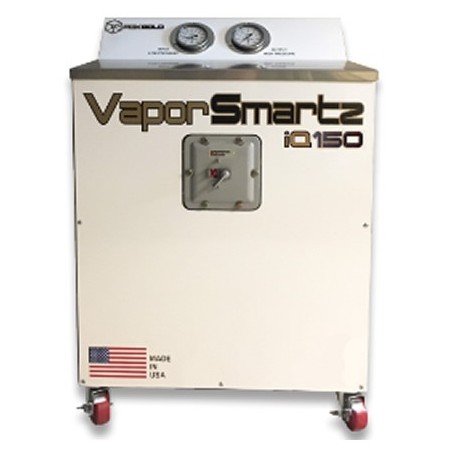

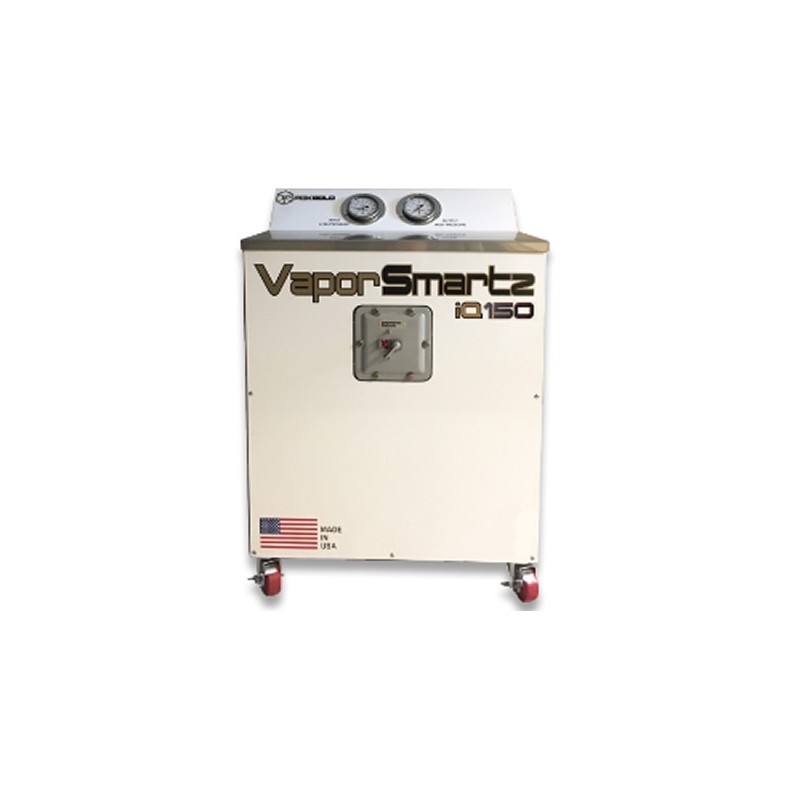

VaporSMARTZ iQ150 PDX Gold

VaporSMARTZ iQ150DXGold

This powerful system pairs perfectly with the industry’s leading hydrocarbon extraction systems by decreasing your recovery times and increasing your profits instantly. This powerful system has the “smarts” to help keep your process on track and pairs perfectly with the industry’s leading hydrocarbon extraction systems by decreasing your recovery times and increasing your profits instantly.

Built for the professional extractor, the recovery pump automatically shuts off when the output pressure exceeds designed limits. The pump also shuts off when drawing excessive vacuum or if the drive motor draws an excessive amount of current. These features help the operator find and solve issues BEFORE they cause damage to the recovery pump or other parts of the extraction system – saving YOU time and money. Our ergonomic design also provides a usable work surface at standard counter height within the extraction lab with no bending down to check gauges.

Features:

- Hydrocarbon solvent recovery

- Approved for: butane, propane, & blends

- Certified by 3PCertz, licensed professional engineers

- Recovers solvent at pressures up to 150 PSI

- Certified to pressure of 250 PSI

- Displacement: 6.5 CFM free air flow

- Oilless compressor prevents lubricant contamination

- Durable and maintanance free with proper operation

- Recovers 2+ lbs / minute*

- Belt drive - reliable & quiet

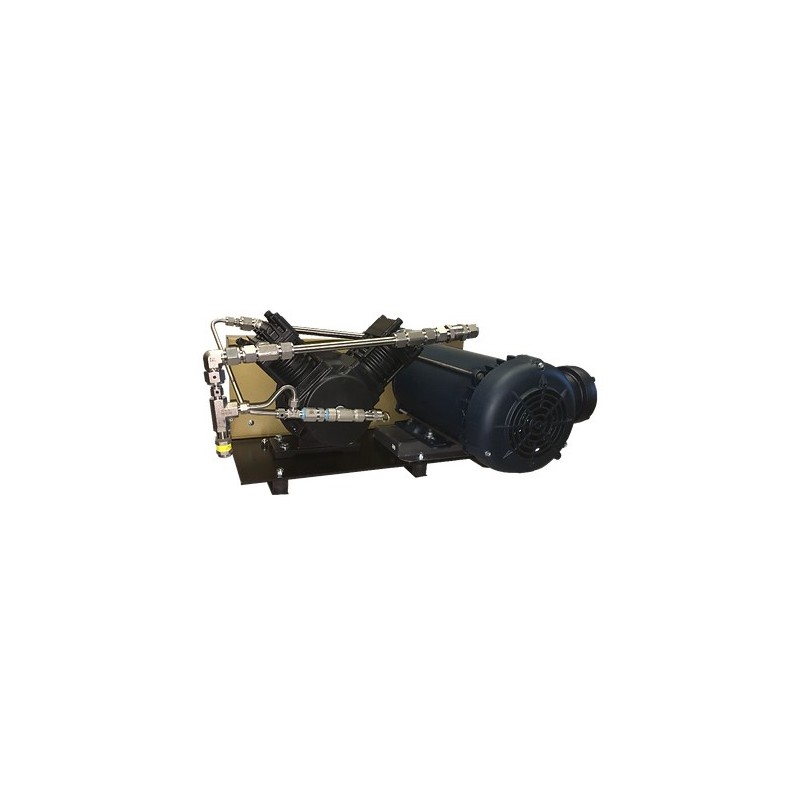

- Piston driven compressor

- Input / Output Gauges

- Manufactured & Assembled In the USA

Technical Specs:

- UL & CSA listed, NEMA 7, 2 hp C1D1 explosion proof motor

- Single phase & 3 phase drive available

Voltage:

- 1-Phase 115/208-230v
- 3-Phase 208/230/460v

Free Load Amperage:

- 13.4A (115v) / 6.7A (230v)
- 3.8A (230v) / 1.9A (460v)

- 1750 RPM
- Noise data: quiet at ~78 dBa
- 100% food grade materials
- Inlet / Outlet - 1/2” tube fitting
- 28.5” x 13.75” Stainless Steel worktop
