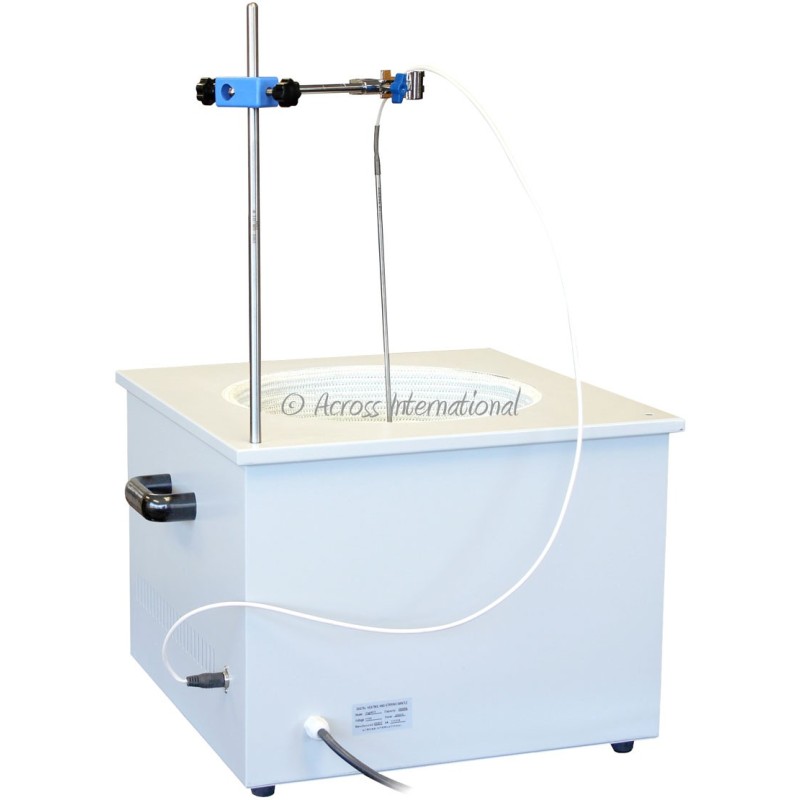

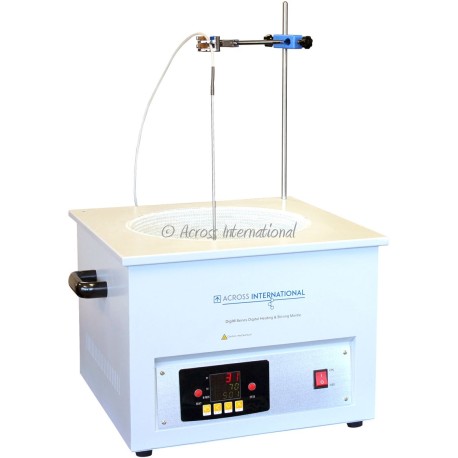

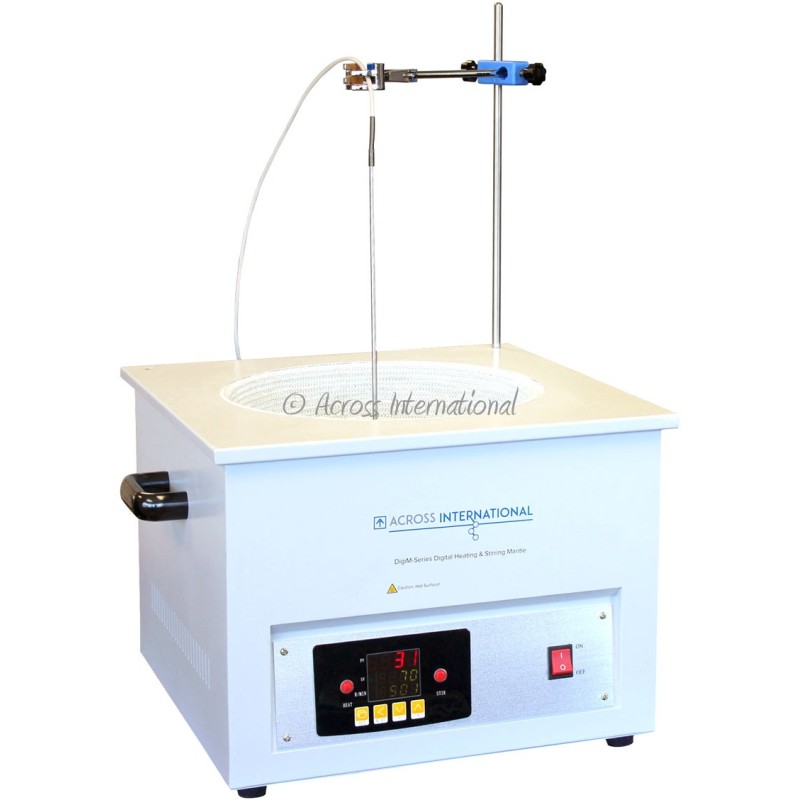

Ai DigiM 20L 300°C 2000 RPM Digital Heating & Stirring Mantle 220V
New
Across International DigiM 20L heating and stirring mantle come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
More info
Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
| Model |
DigiM20 |
| Electrical requirements |
220V 50/60Hz 1-Phase, 2900 watts, 13.2 A |
| Heating |
Ambient to 300°C |
| Stirring | Min. speed: 110 rpm, max. speed: 1200 rpm Motor power: 40 watts Motor type: brushless DC motor |

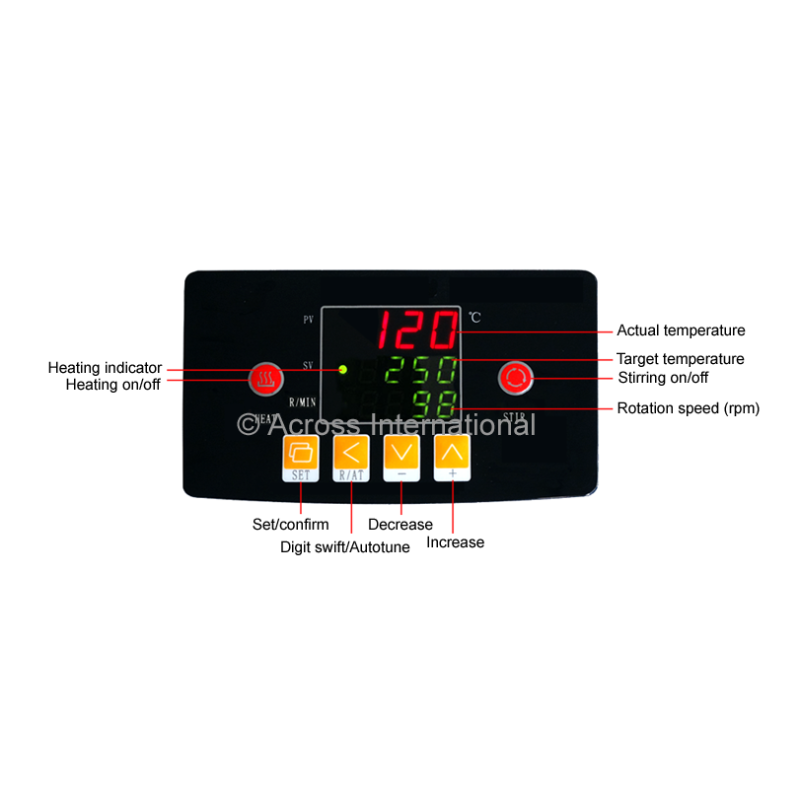

| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple |
Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm |
| Flask holder | Maximum flask capacity: 20 liters Top opening diameter: 14.5 inches Depth: 7.5 inches |
| Dimensions (WxDxH) | Unit: 20.5 x 20.5 x 13 inches, shipping: 24 x 24 x 18 inches |
| Weight | Unit: 40 lbs, shipping: 50 lbs |
| Safety | Thermocouple failure protection |
| Certification | ETL tested to UL and CSA standards (optional), CE (standard) |
| Warranty | One year |
Standard Package
|
Part description |
Quantity |
Part image |
| Ai DigiM 20L digital heating & stirring mantle |
1 pc |
 |
| DigiM20: Cable Length: 43”, Probe Length: 15” | 1 pc |  |
| Internal temperature plug | 1 pc |  |
| Boss head DigiM20: 2 pcs |
2 pcs |  |
| Stainless steel support rod DigiM20: 2 pcs |
2 pcs |  |
| PTFE coated stir bar |
2 pcs |  |
| PTFE coated magnetic stir bar remover | 1 pc |  |
| 4 prong stainless steel clamp opens to 3 1/2" DigiM20: 2 pcs |
2 pcs |  |
| User's manual |
1 pc |
|
