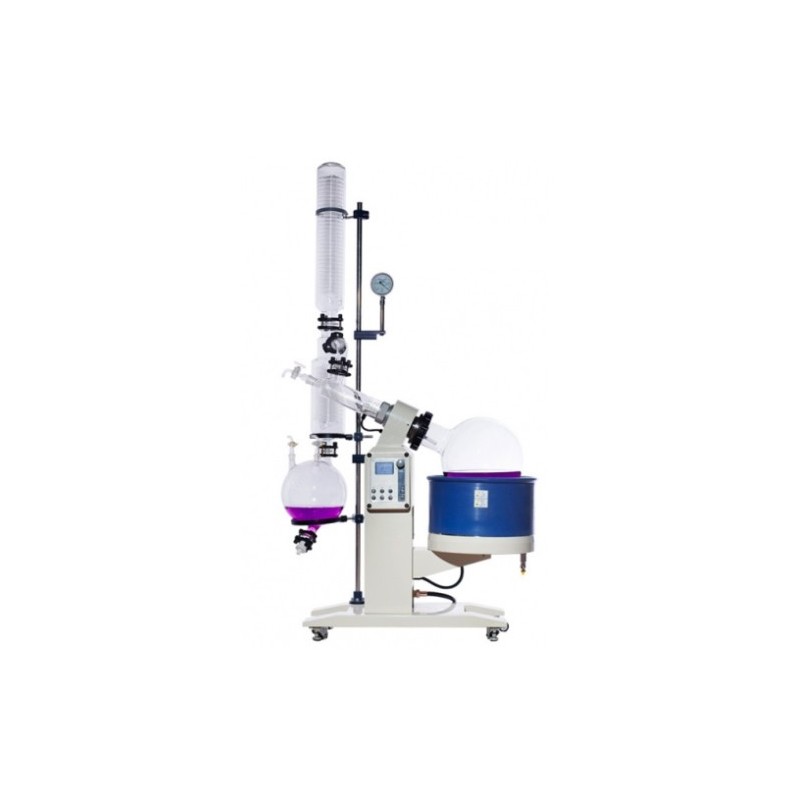

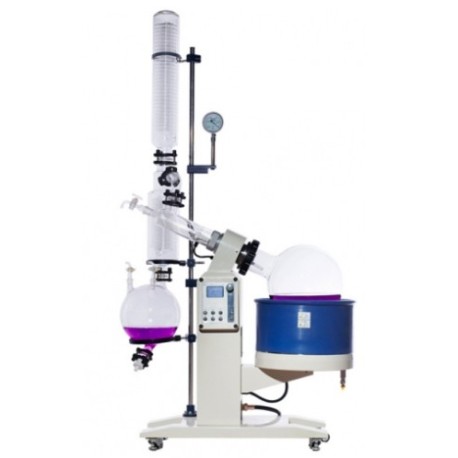

Science King 50L Rotary Evaporator
New
The Science King 50L is a rotary evaporator (sometimes called a Roto Vape). It is an extraction system that uses the different boiling points of materials to separate the target material from a mixture.
Must-have accessories
More info

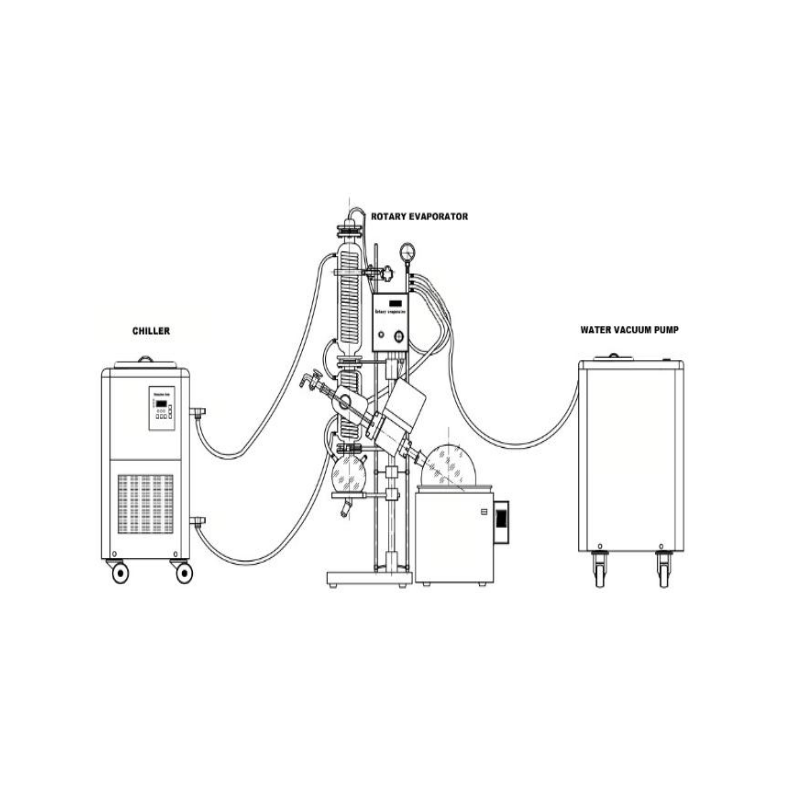

Extractor King always matches each Rotary Evaporator with a matching vacuum pump and chiller. A proper vacuum pump can keep the system at better vacuum degree and lower the boiling point of the liquid. A matching chiller can cool the condenser better and improve the efficiency of collections. The XRE Series Rotary Evaporators are widely used in processing Concentration, Refining, Separation, Crystallization, etc. and are mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.
Science King 50L Specifications:

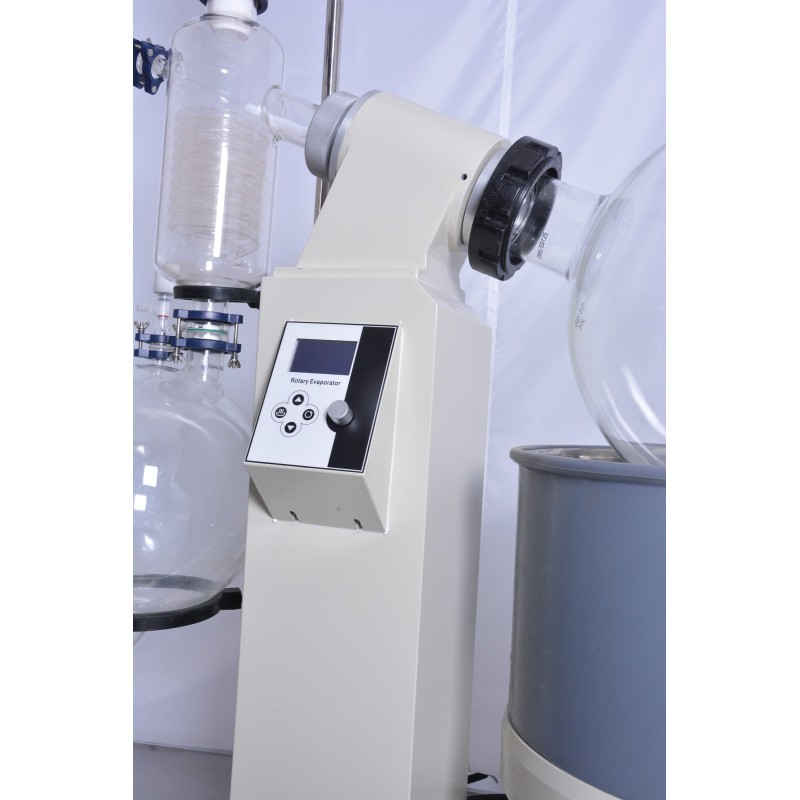

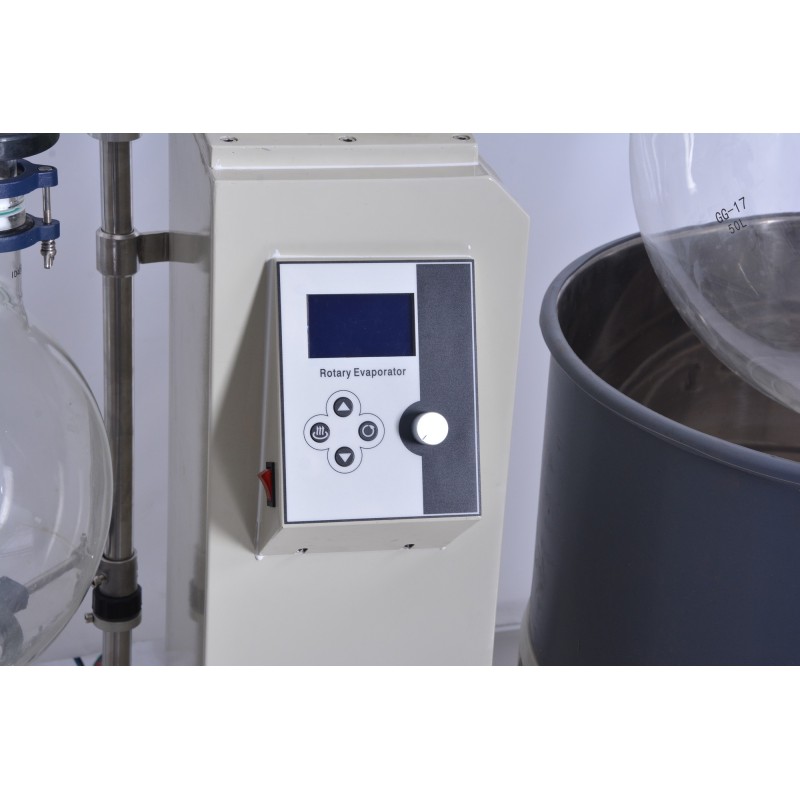

- Digital PID temperature and rotation speed controls

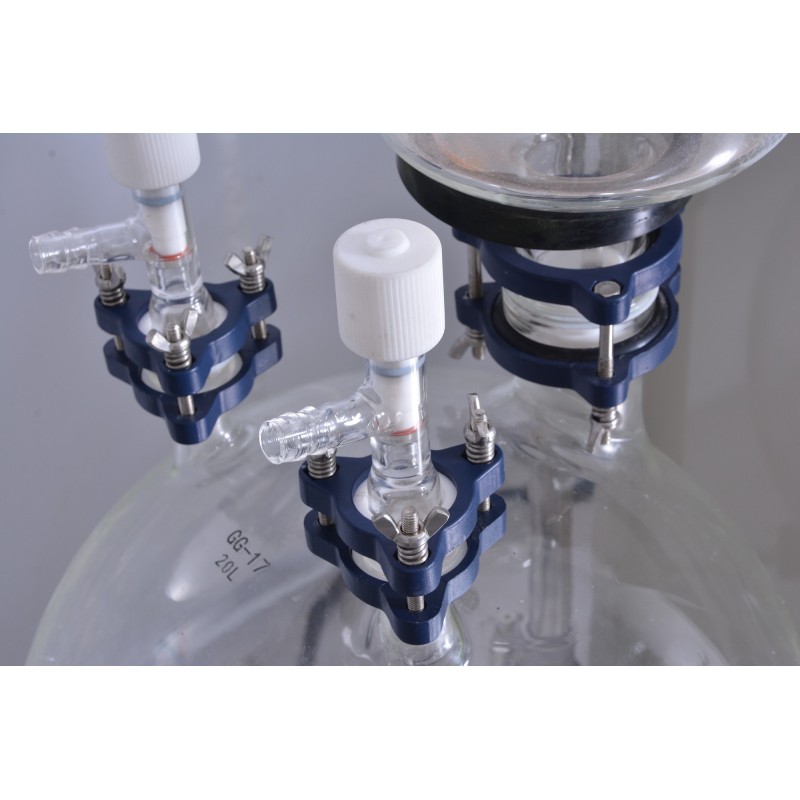

- All PTFE valves for improved lifespan and chemical resistance

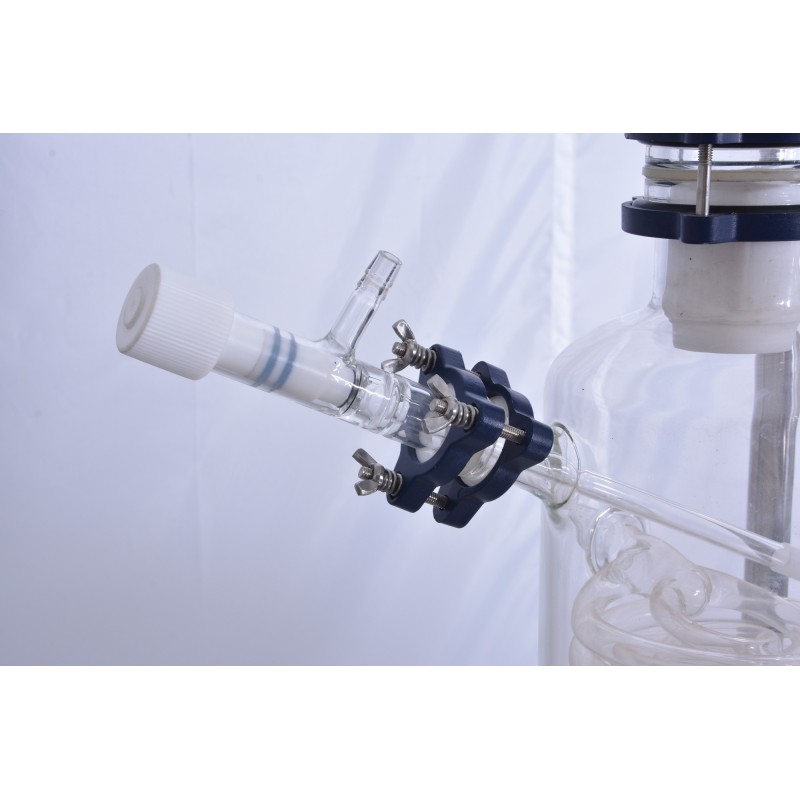

- Direct injection capability for continuous feeding of solution
- Smaller footprint for improved workspace allocation
- Receiving flask drain port for easy draining

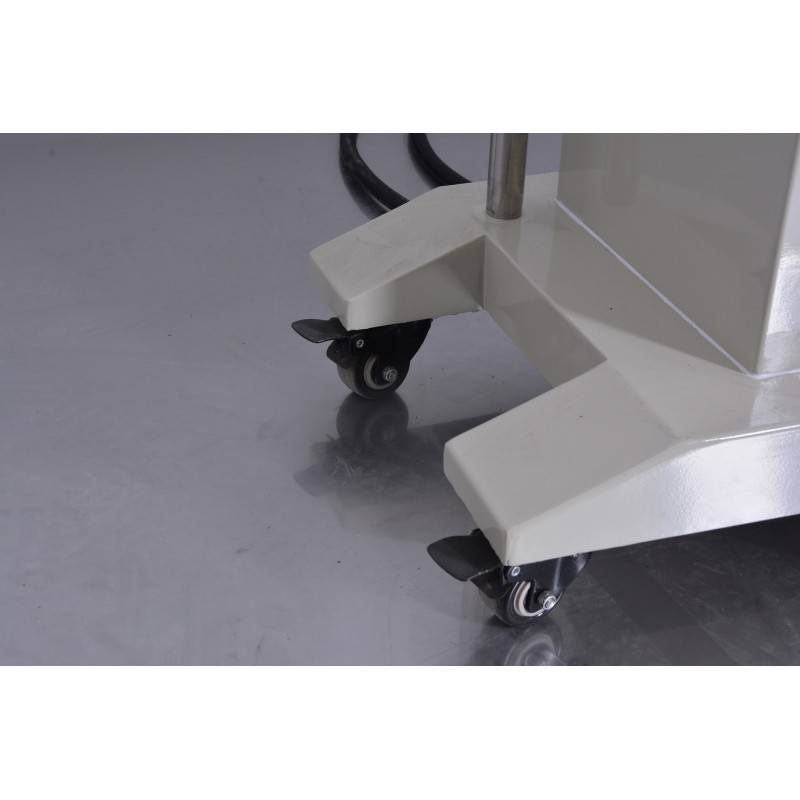

- Mobility with locking casters
- Electric lifting bath
- CE Certified
- 1 year warranty on all mechanical parts. Does not include glassware.
Specifications:
Model: Science King 50L Rotary Evaporator
Optimum Ambient Temperature: 5~25C / 41~105.8F
Glass Material: GG-17 High Borosilicate
Power: 240V 60Hz Single Phase
Speed Regulatior: Digital Step-less Regulation
Rotation Speed: 0-120 RPM
Set Temperature: 0-99C / 0-210F
Temperature Control: Digital Temperature Control

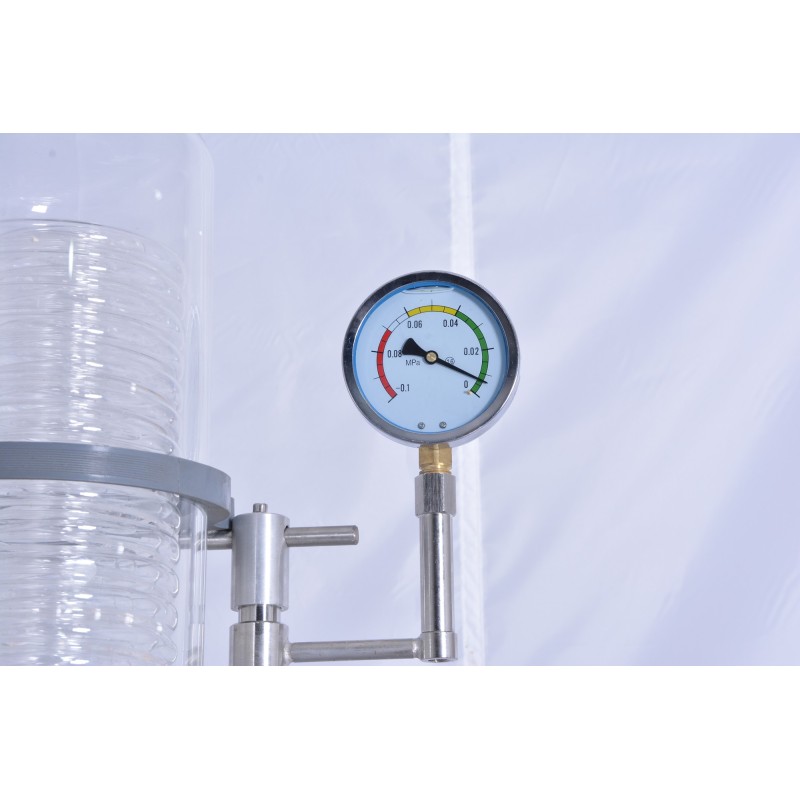

Maximum Vacuum Pressure: -29.8 inHg

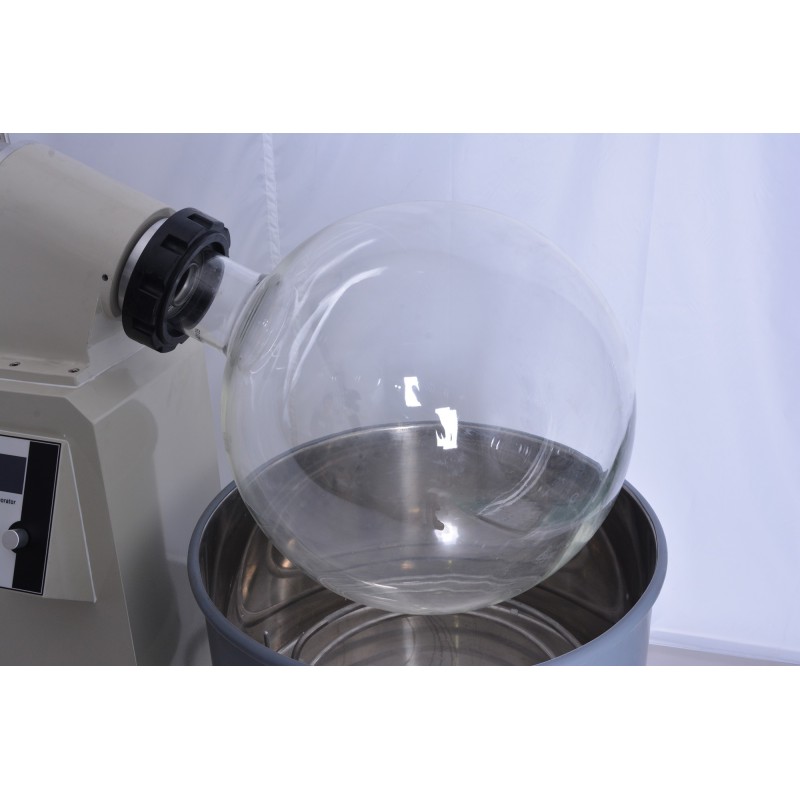

Evaporating Flask Capacity: 50L (20000ml)
Receiving Flask Capacity: 20L (10000ml)

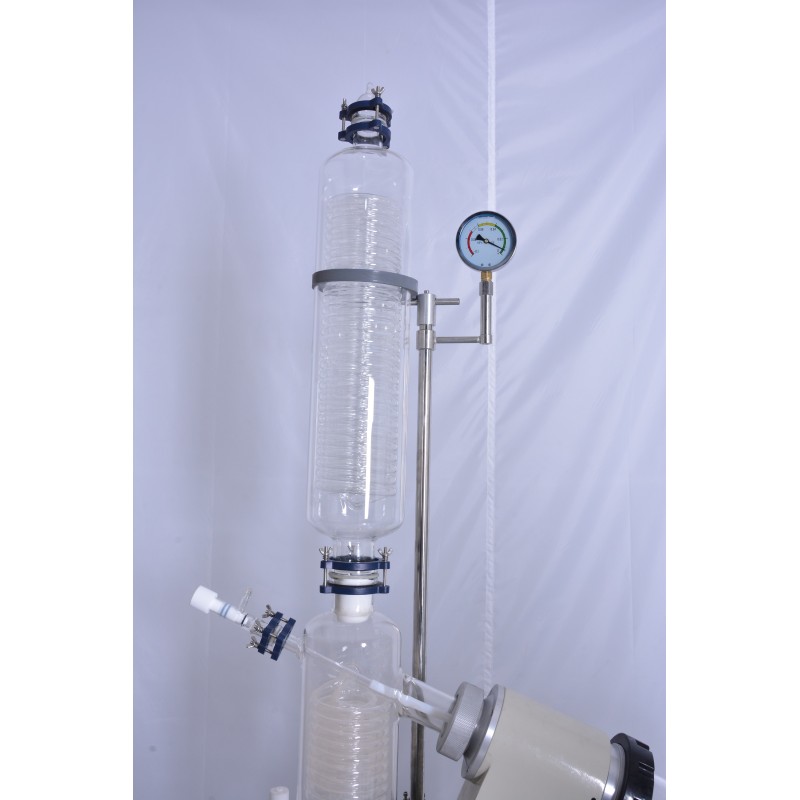

Condenser Style: Main + Auxiliary Vertical Double Helix
Evaporation Capacity: Alcohol >/= 19 L/H
Heater Max Current Draw: (Amps): 25
Water Bath Material: 304 Stainless Steel
Water Bath Size: 21.65 x 12.30 in.
Lifting Function: Electric
Lifting Stroke: 190mm / 7.5 in.
Total Power Consumption (kW): 4.1 kW
Dimensions: 52 x 30 x 92 in.
Weight: 185 lbs.
Vacuum Connection: 14mm / .55 in. Barb
Condenser Connection: 18mm / .70 in. Barb
Warranty: 1 Year excluding glass parts
Certifications: CE
