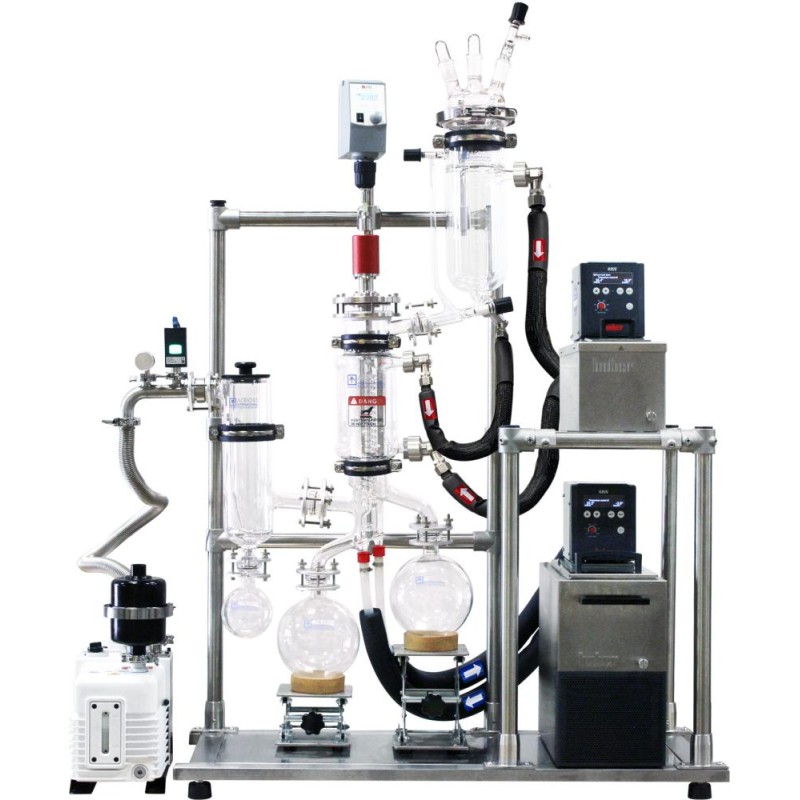

Ai GLASS THIN FILM DISTILLATION SYSTEM FEATURES
- High precision PTFE rollers (or blades) and inner glass surface allow a complete and uniform thin film on the heated surface, and prevent process residue
- Pre-installed cooling/heating tubing with fluid direction labels and M16 ports
- Low-placed feeding flask for ease of operation
- Driving motor with magnetic coupling sealing ensures a high vacuum level
- Constructed with high borosilicate glass 3.3, stainless steel, and Viton gaskets for ultimate corrosion resistance
- A transparent glass system allows you to see through all processes
- Heavy-duty stainless steel frame
- Installation included in the price within contiguous 48 US states
- Cold Traps are only suitable for use with dry ice or a cold finger chiller such as an IP-80 or TC100/TC100E. Always wear proper PPE when handling dry ice.
CAUTION!
- Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended fluid
- Always leave ample fluid space in heater reservoir to allow fluid heat expansion
- Always keep system vacuum passage or drain valve open when heating up circulation jackets
- Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits
SPECIFICATIONS
| Model |
TG-3 |
| Power |
Heating Tape Controller: 220V 50/60Hz 1-phase
Stirrer: 220V 50/60 Hz 1-phase PCG-750 Vacuum Gauge: 110V 50/60Hz 1-phase |
|
Unit Weight / Turnkey Weight
|
127 lbs / 270 lbs
|
|
Unit Dimensions / Turnkey Dimensions
|
42" x 18" x 46" / 52" x 18" x 62" (W x D x H)
|
|
Shipping Dimensions
|
45" x 21" x 62" (W x D x H) (Skid Crate)
40" x 48" x 40" ( W x D x H) (Accessories Pallet)
|
|
Shipping Weight
|
275 lbs (Skid Crate) / 377 lbs (Accessories Pallet)
|
| Throughput | 500ml per hour average (based on processes and material fed) |
| Condenser | Surface Area: 500 cm^2 Condenser Type: Coil Material: 3.3 Borosilicate Glass Volume: Approx. 500mL Operating Temperature: -25°C to 200°C |
| Evaporator | Surface Area: 600 cm^2 Material: 3.3 Borosilicate Glass Volume: Approx 2L Operating Temperature: 25°C to 200°C |
| Wiper System | Style: Spring-tensioned Multi Segmented Material: PTFE Driving Motor: Adjustable Speed Overhead Motor Stirrer Coupling Type: Magnetic Drive |
| Cold Trap | Material: 3.3 Borosilicate Glass Depth:12" Quantity: One Receiving Flask Volume: 500mL Recommended Coolant: Dry ice or immersion chiller (immersion chiller not included in the turnkey package) |
| Feeding System | Flask: Glass, 1.5L Jacketed Flask Jacket: Approximately 1L Feeding System: Manual Valve |
| Sealing Gaskets | Food Grade Viton |
| Vacuum System | Vacuum Gauge: PCG-750 with LCD display for high vacuum application Vacuum Pump: SuperVac 11 with oil mist filter |
| Temperature Control Units | Evaporator and Feed Flask: Kiss 205b Internal Condenser: Kiss K6 |
