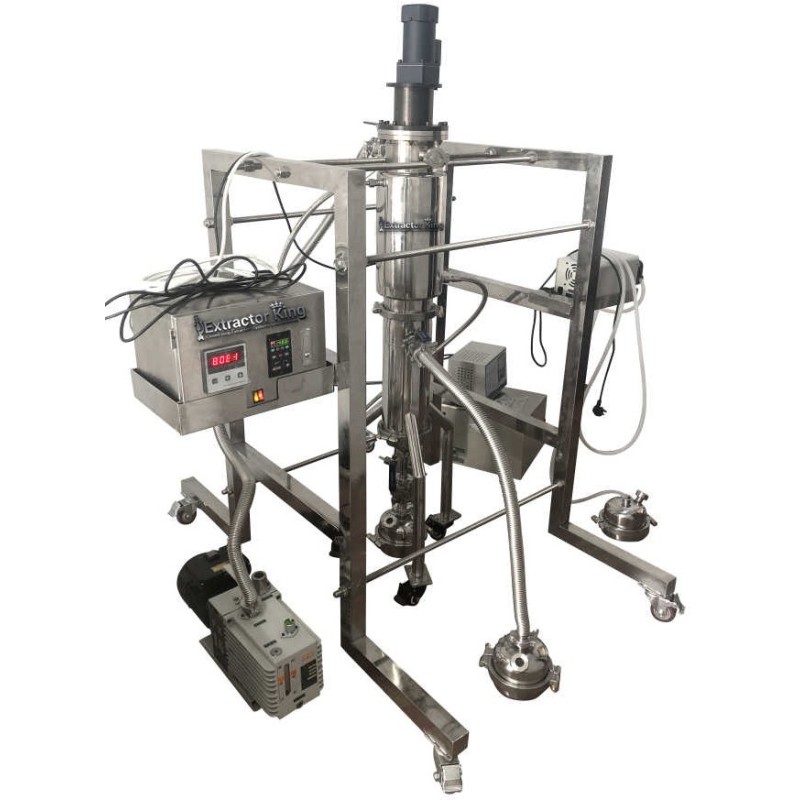

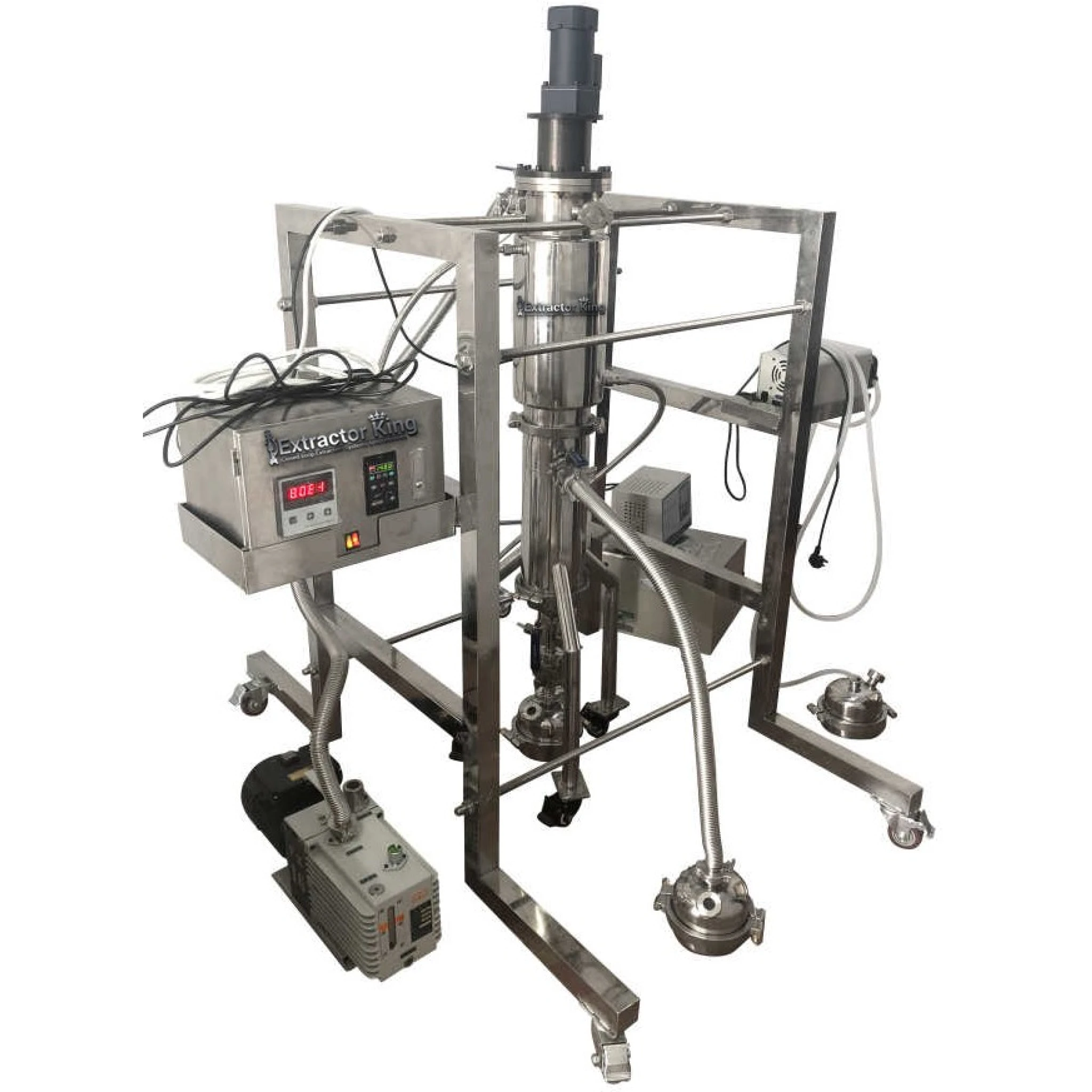

MWFD-5L Molecular Wiped Film Distillation System (Turn Key)

Used for making full spectrum distillates & CBD concentrates. This cutting edge technology has no glass parts and is made from food grade stainless steel . The MWFD-5L is meant for continuous industrial production, The MWFD-5L is also capable of continuous auto feed for unattended use. The system can also be used in series for large scale factories and production facilities.

Information:

The feed liquid is admitted into the molecular distiller under high vacuum, it is immediately spread into a very thin film and forced quickly down the evaporation surface. Oil heated walls and high vacuum drive the more volatile components (distillate) to the external condenser as the less volatile components (residue) continue down the cylinder.

The resulting fractions, thus separated under high pressure, exit through individual discharge outlets. Depending on application, the desired product is either the distillate or the residue fraction. Small amounts of condensable low MW compounds collect in cold trap up stream of vacuum system. For high solvent loads, an optional external condenser may be installed immediately down stream of the molecular whiped film machine.

The Extractor King MWFD-5L Molecular Wiped Film Distillation System Specifications:

Model: MWFD-5L
Oil Bath Jacket Evaporation Area: 1.2Pa
Evaporator Heat Transfer Area: Heating surface area= 2198 C m2. Temp control range= RT +5°C to -300°C
Built in Condensing Area: 1413 C m2, 5Liter / -40°C Cryogenic cooling circulation pump
Drive Mode: JSCC Motor w/120W magnetic coupling drives, vacuum flange seal, 133-467 RPM
Film Formation System: Wiped film
Automatic Feeding System: Peristaltic pump BT 300M, Adjustable flow: 0.007-870ml/Min, 0,1-300RPM
Receiving Systems: Heavy phase components= 5L SS304 Tank, Light phase component: 5L Vacuum System: Dual stage pump
Pressure Gauge: Digital display
Cold Trap: SS304
Machine support frame: Frame with 2 shelves & caster system
Setup size: 1700*1500*1200mm
