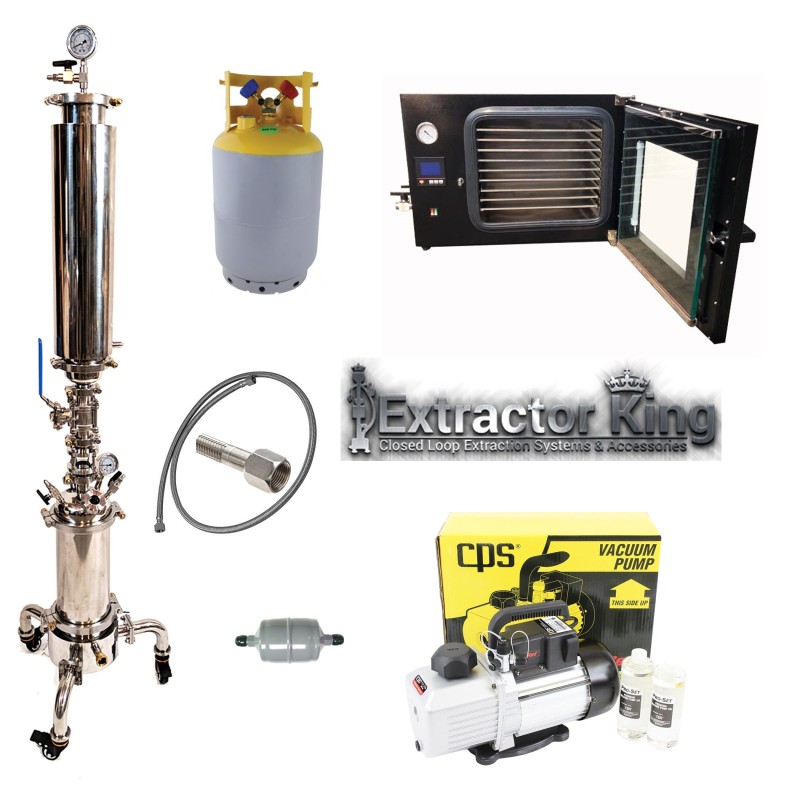

1.2LB Turn Key Closed Loop Extractor Setup w/ Dewaxing Sleeve, Vacuum Oven & Pump

This 1.2LB Extractor King professional grade extractor was CNC machined and manufactured in compliance with ISO, 3A & CE certifications. Unlike other extractor systems, Extractor King Extractors come with all the bells and whistles. No extra costs for dewaxing columns, sight glasses, swagelock valves, 3 peice ball valves, high pressure clamps, splatter platter and 1-1/2 times ss304 thickness w/mirror polish finish. All these options and more come standard with all Extractor King Extractors.

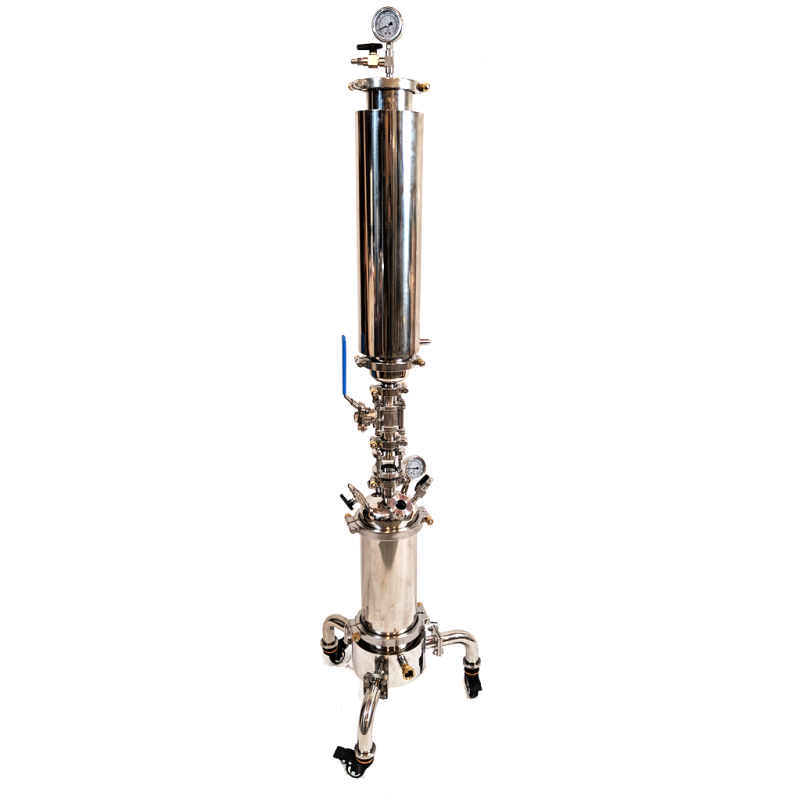

1LB Closed Loop Extractor -

1x 3"x36" stainless steel material column w/5"x33" dewaxing sleeve with 1/4" FNPT drain
1x 3" to 1-1/2" Hemispherical Reducer w/ rings and mesh screen

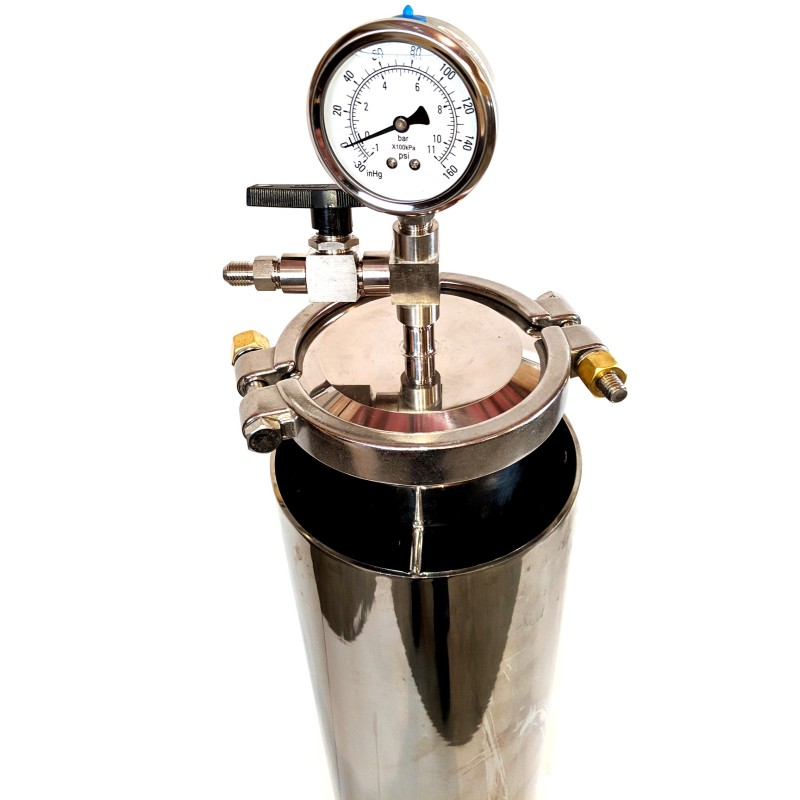

1x Endcap w/1x 1/4" MNPT & moulded spray ball

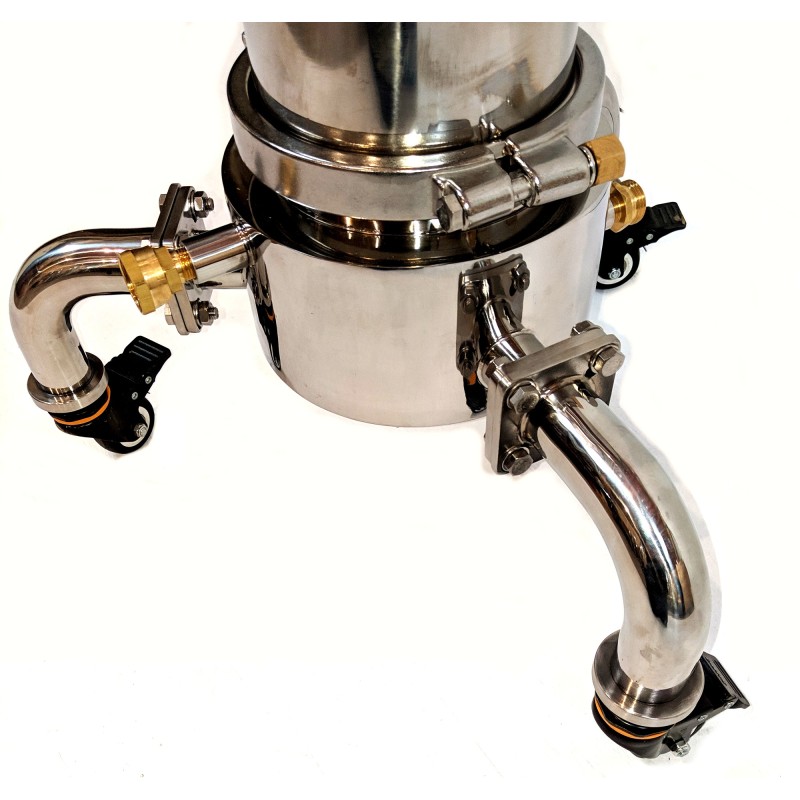

1x 6"x4" fully jacketed shatter-splatter  platter w/wheels

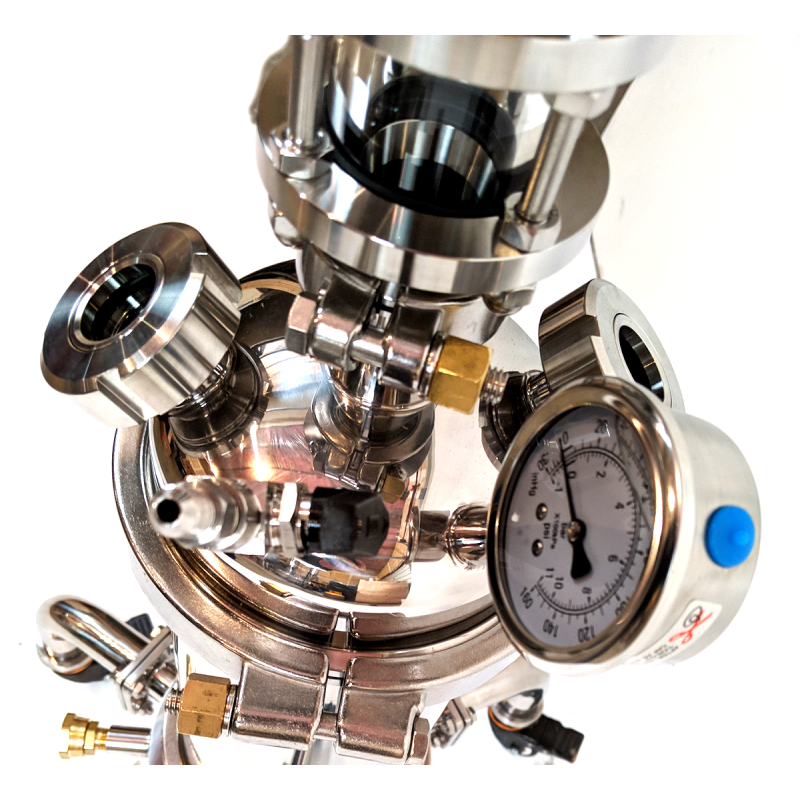

1x Main collection lid w/ 1x 1-1/2" Ferule, 2x 1/4" MNPT, 1x 1/4" FNPT, 1x union sightglass & 1x stainless vacuum compound gauge
3x 1/4" swagelock valves with stainless steel jic/sae fittings
1x 1-1/2" heavy duty 3pc ball valve
1x 1-1/2" Short inline sight glass before the lid.
1x Set of high pressure clamps
1x Complete set of triclamp gaskets and filters
1x Mirror polish finish on all extractor parts

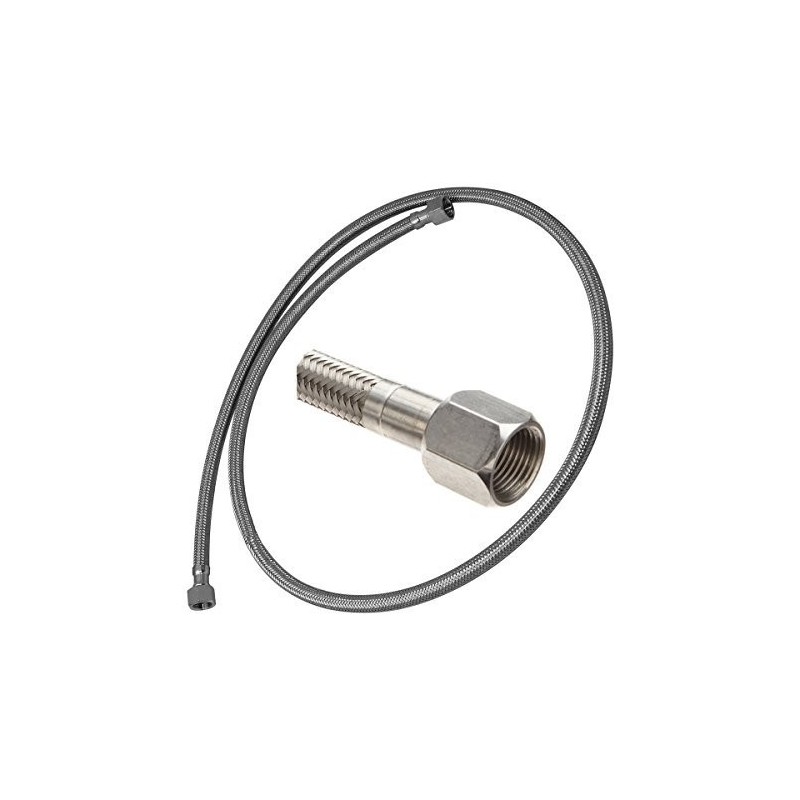

Hoses -
2x 7' High Pressure Braided Stainless Steel JIC Hoses
1x 3' High Pressure Braided Stainless Steel JIC Hoses

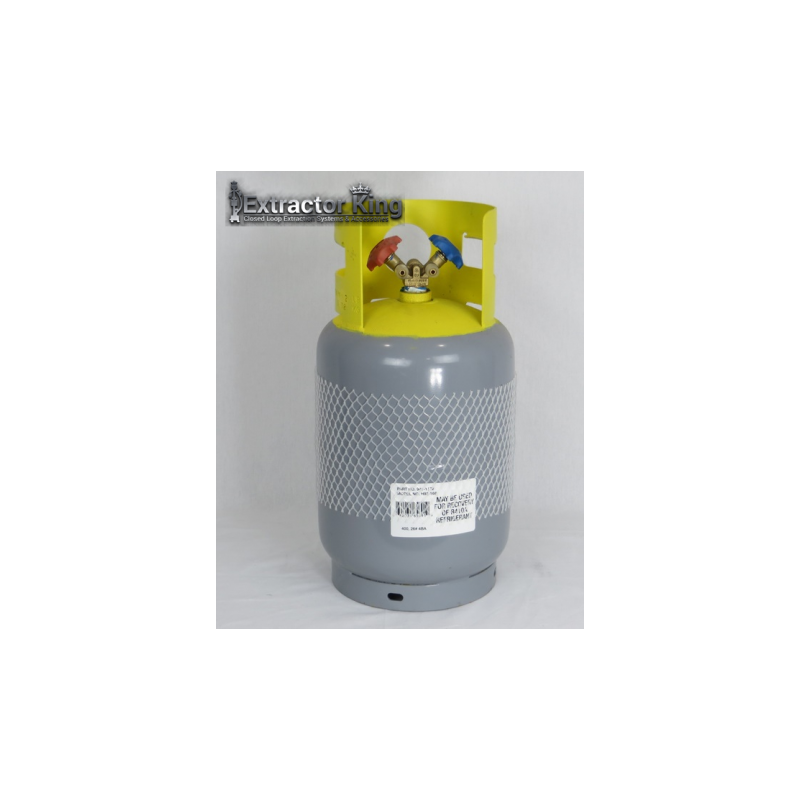

Solvent Reclaim Tank
1x 30LB Reclaim Tank w/2x 1/4 JIC + Vapour & Liquid Vales

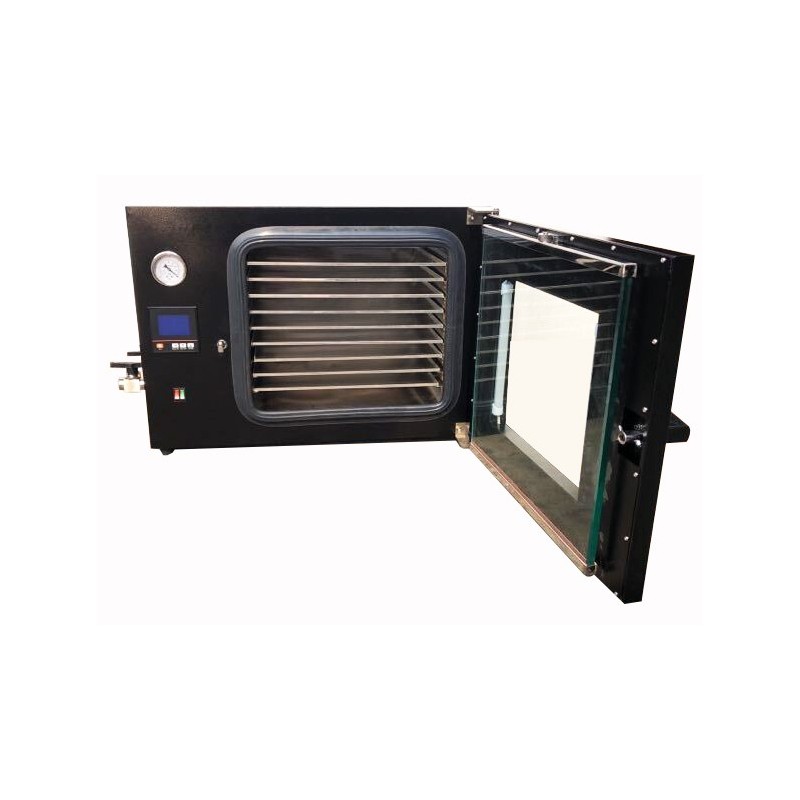

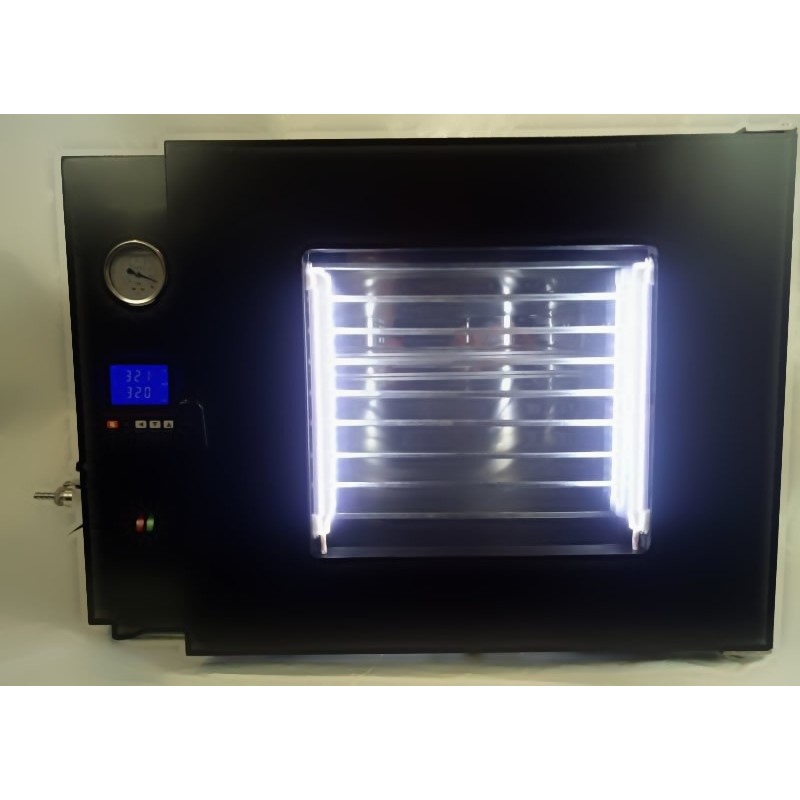

1x 1.9 Cubic Foot Vacuum Oven -
The oven body is made of high-quality stainless steel, filled with thermal insulation material. It has a double glass window---the inner glass is tempered and the outer glass is made of explosion proof material, a silicone rubber seal is between the door and chamber for best sealability, the shelves are made of aluminum alloy plate with good thermal conductivity. The internal LED light system makes for easy viewing. There is also an extra port/valve for inert gas usage. Unit comes with all connections-fittings and a tube to join more than one oven together. 1 vacuum pump can be used to control 4 ovens. See Pictures

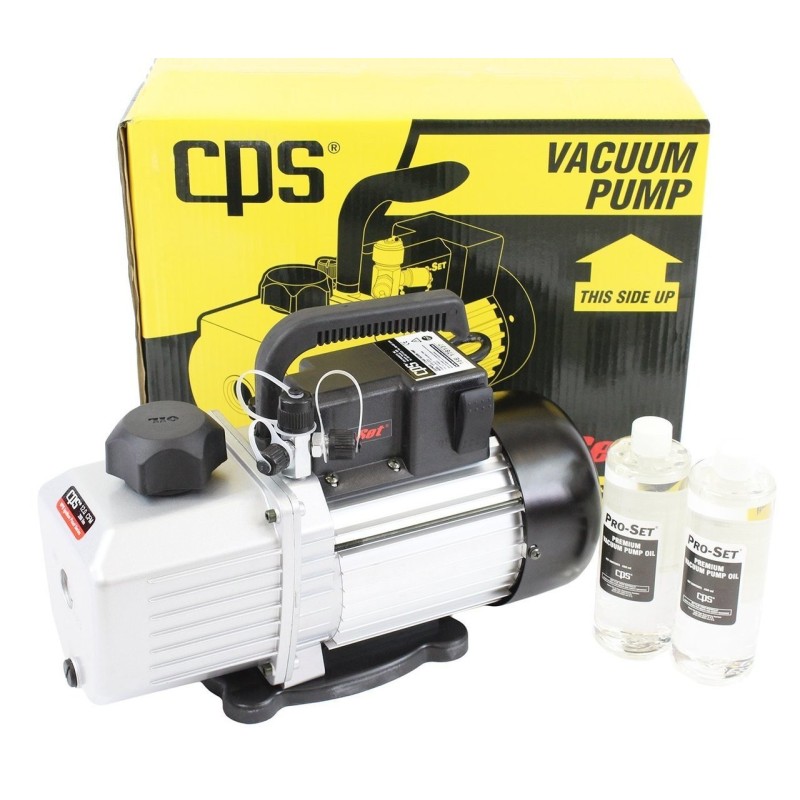

1x 6CFM Ignition Proof 2 Stage Vacuum Pump -
Stage: 2
Motor Size (HP) RPM @ 60Hz: 1/2 (HP)2880/3440
Dimensions (Inches): 13.1 x 5.5 x 10
Weight: 22.5 lb / 14.0 kg
Operating Temperature Range: 0C (32F) to 52C (125F)
Power Source: 115V 60Hz
Ultimate Vacuum: as low as 10 Microns
Oil Capacity: 16 oz / 470 ml
Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
Control System: ON-OFF power switch
Free Air Displacement: 6 CFM @ 60Hz
Intake Fittings: 1/4, 3/8, and 1/2 ACME

*Safety Training & Usage Tutorial Services are also available. Please inquire.
