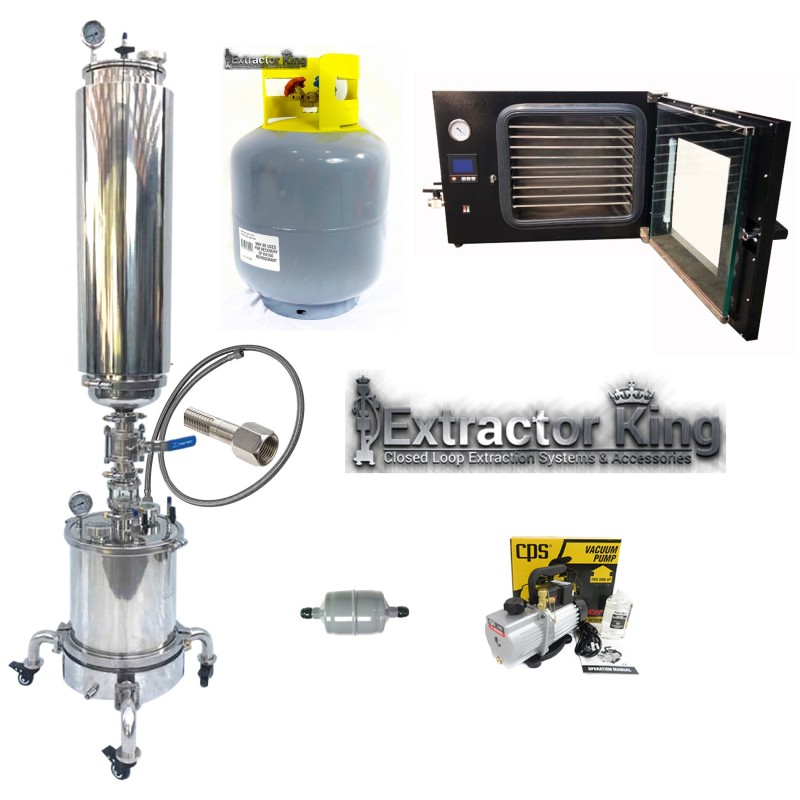

10LB Turn Key Closed Loop Extractor Setup w/ Vacuum Oven & Pumps

New

This is an turn key Extractor King 10LB passive-active closed loop extractor system with everything you need to get up and running incuding a 1.9 cubic fioot 9 shelf vacuum oven, super chill dual cooling material column & fully jacketed splatter platter w/wheels

More details

$12,758.53

Payment Providers
Payment Providers

Add to my wishlist

More info

This is an ISO, 3A & CE certified Extractor King 10LB passive-active closed loop extraction system with everything you need to get up and running. This professional grade extractor was CNC machined and manufactured in compliance with ISO, 3A & CE certifications. Unlike other extractor systems, Extractor King Extractors come with all the bells and whistles. No extra costs for dewaxing columns, sight glasses, swagelock valves, 3 peice ball valves, high pressure clamps, jacketed splatter platter with wheels and 1-1/2 times ss304 thickness w/mirror polish finish. All these options and more come standard with all Extractor King Extractors.

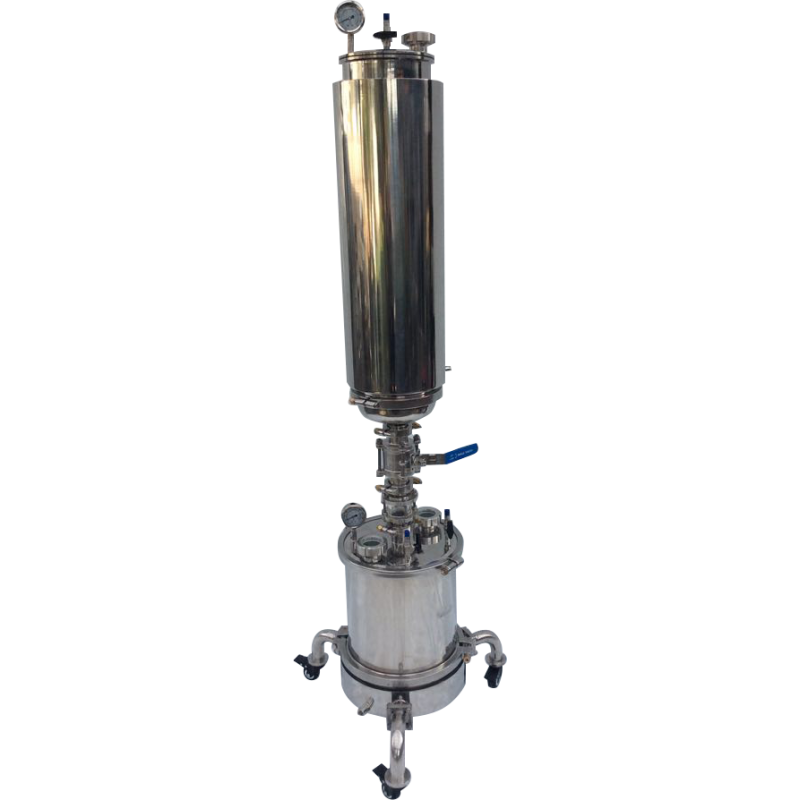

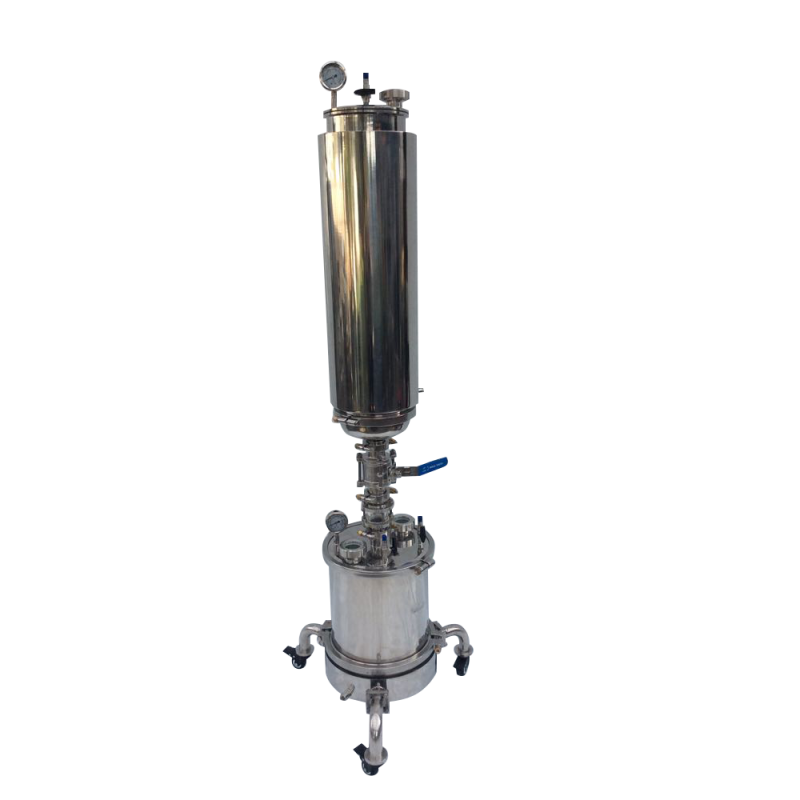

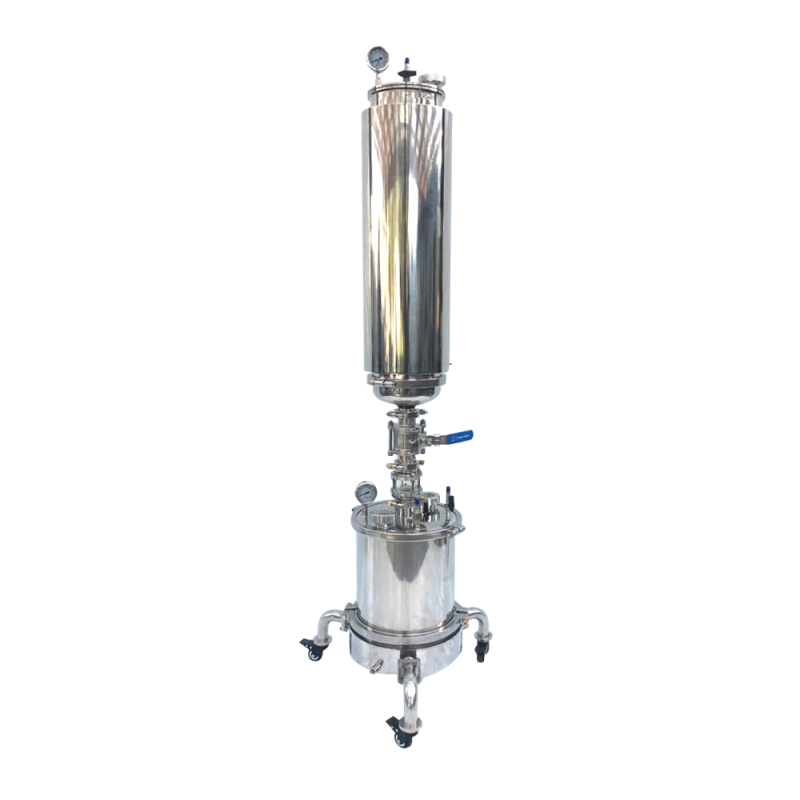

10LB Closed Loop Extractor -

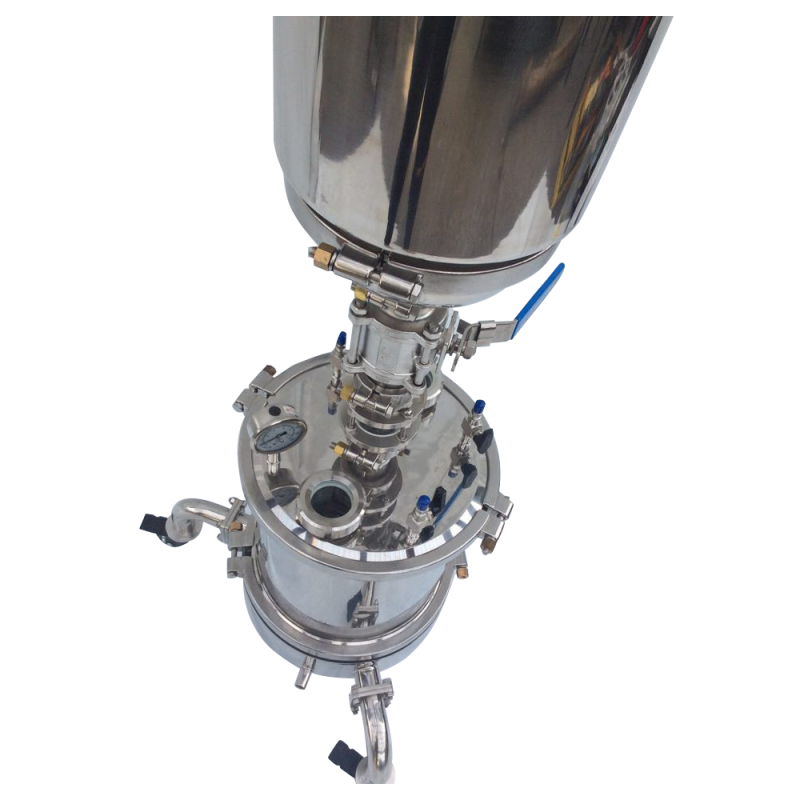

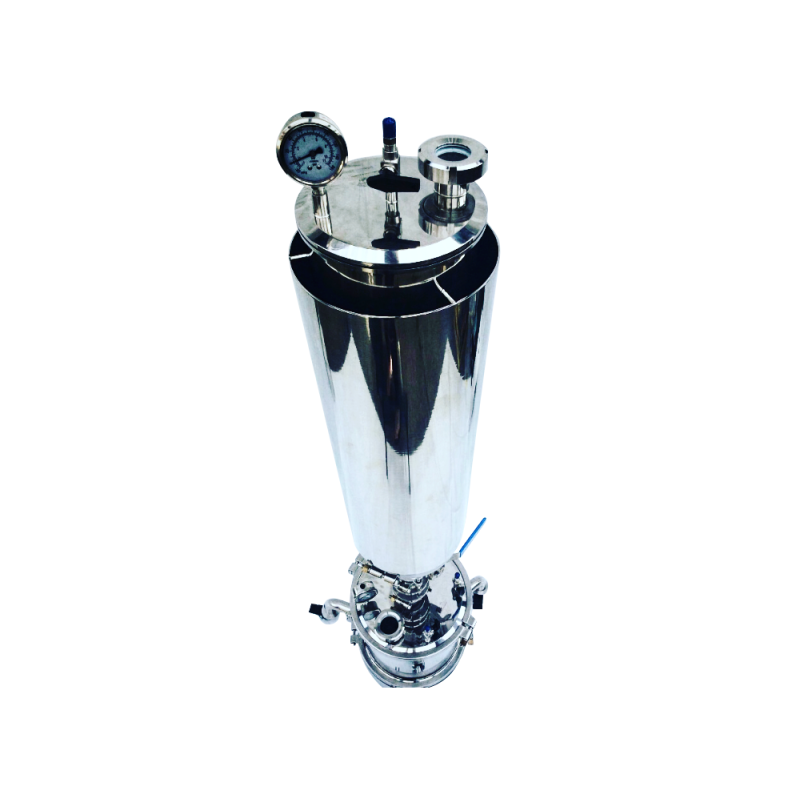

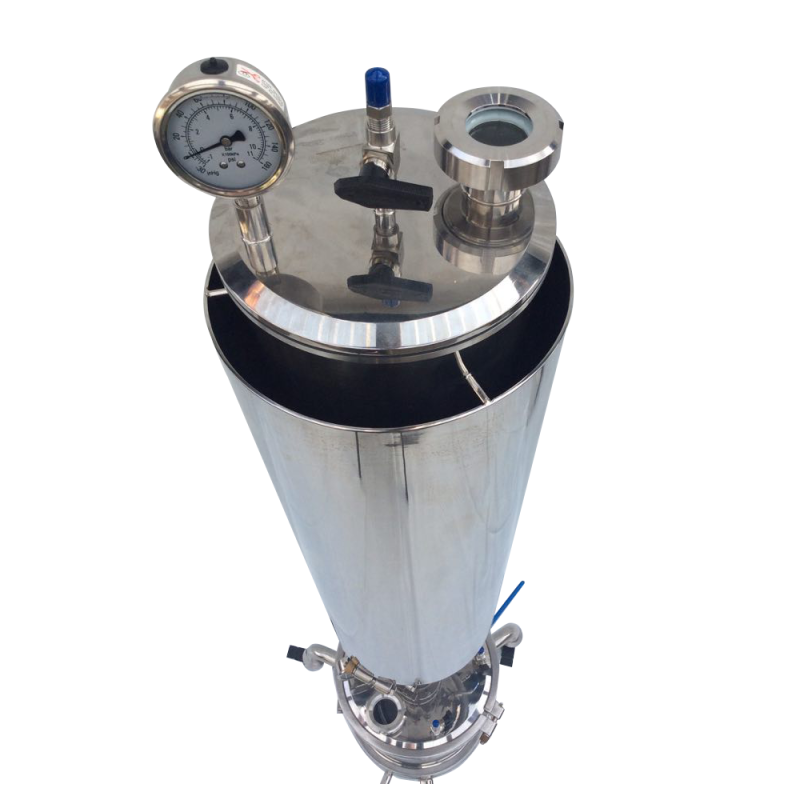

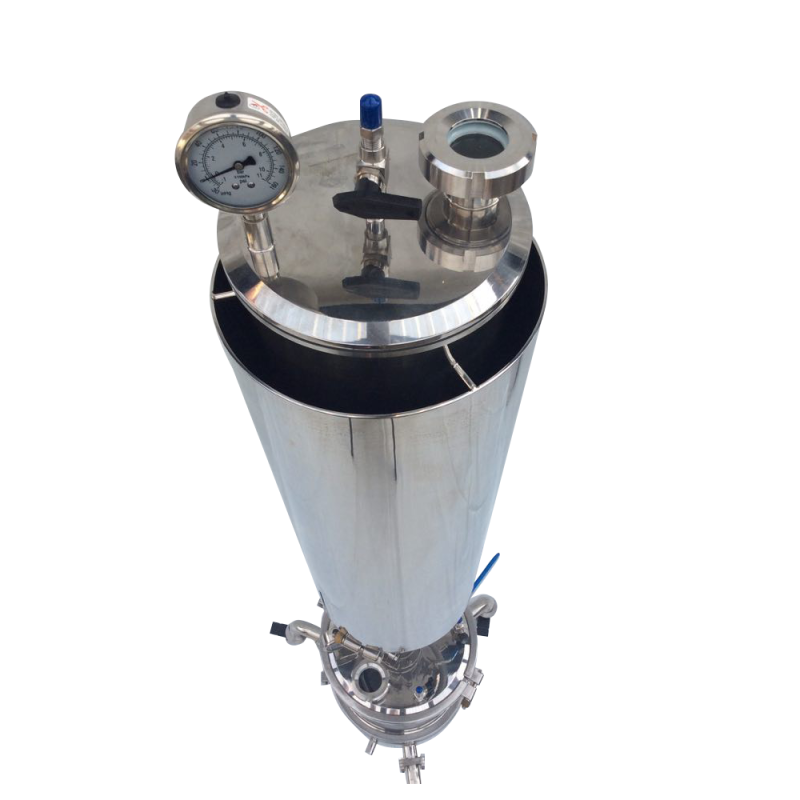

1x 8"x36" stainless steel super chill material column w/10"x34" dewaxing sleeve with 3x 3/8" cooling ports
1x 8" to 3" Hemispherical Reducer w/ rings and mesh screen

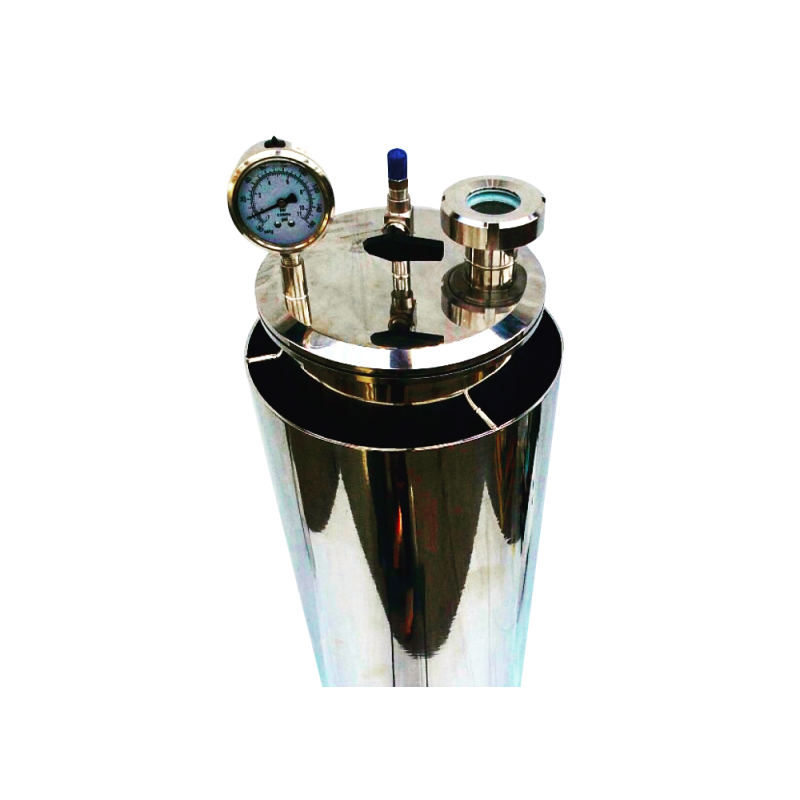

1x Material column lid w/2" union sight glass, 1x 1/4" MNPT, 1x stainless steel vacuum gauge and 1x 1/4" MNPT w/moulded spray ball
1x 12"x6" Jacketed shatter platter w/wheels & 2x 3/8" hose fittings

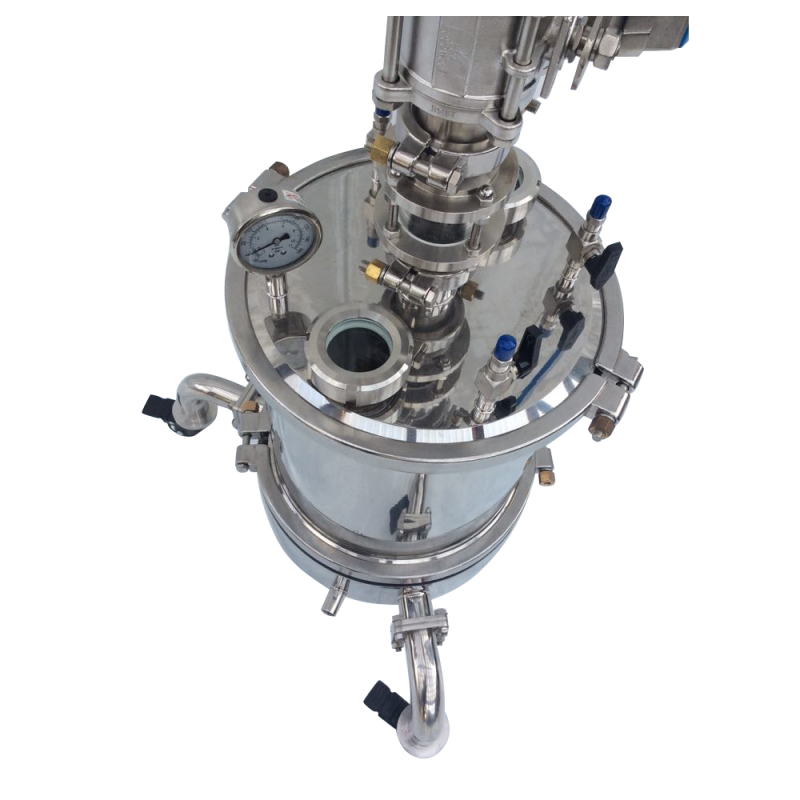

1x Main collection lid w/ 1x 3" Ferule, 3x 1/4" MNPT, 1x 1/4" FNPT, 1x Stainless Vacuum Guage
4x 1/4" swagelock valves with stainless steel jic/sae fittings
1x 3" heavy duty 3pc ball valve
1x 3" Short inline sight glass before the lid.
1x Complete set of triclamp gaskets and filters



Hoses -

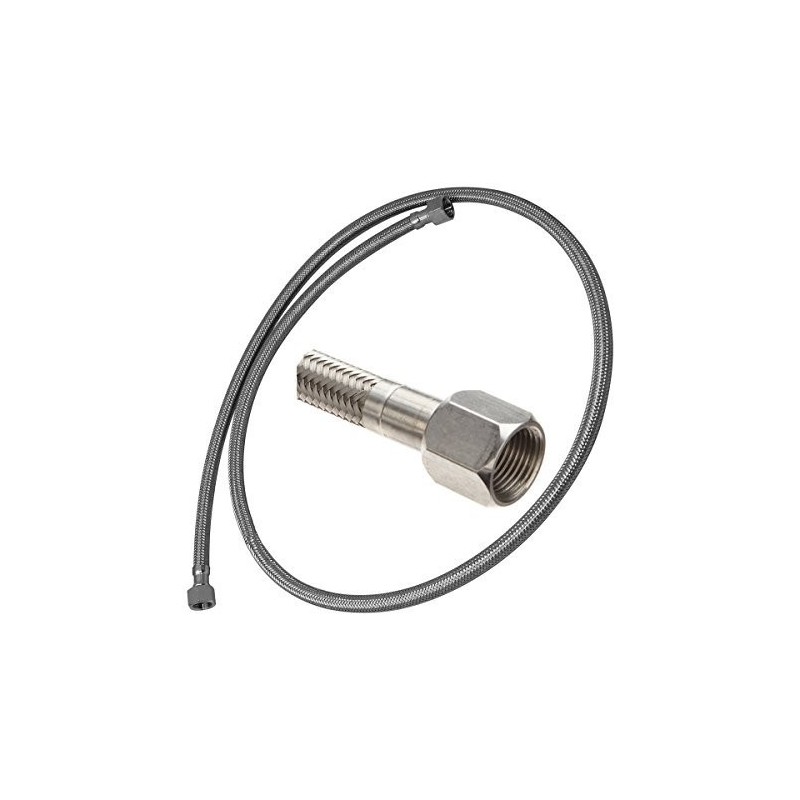

2x 7' High Pressure Braided Stainless Steel JIC Hoses
1x 3' High Pressure Braided Stainless Steel JIC Hoses



Solvent Reclaim Tank

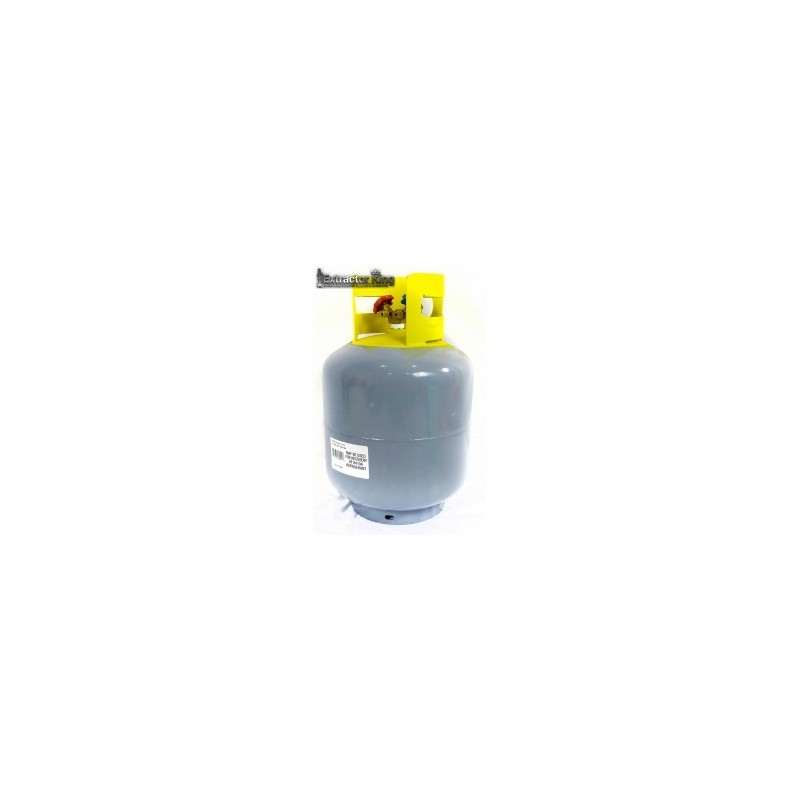

1x 50LB Reclaim Tank w/2x 1/4 JIC + Vapor & Liquid Valves

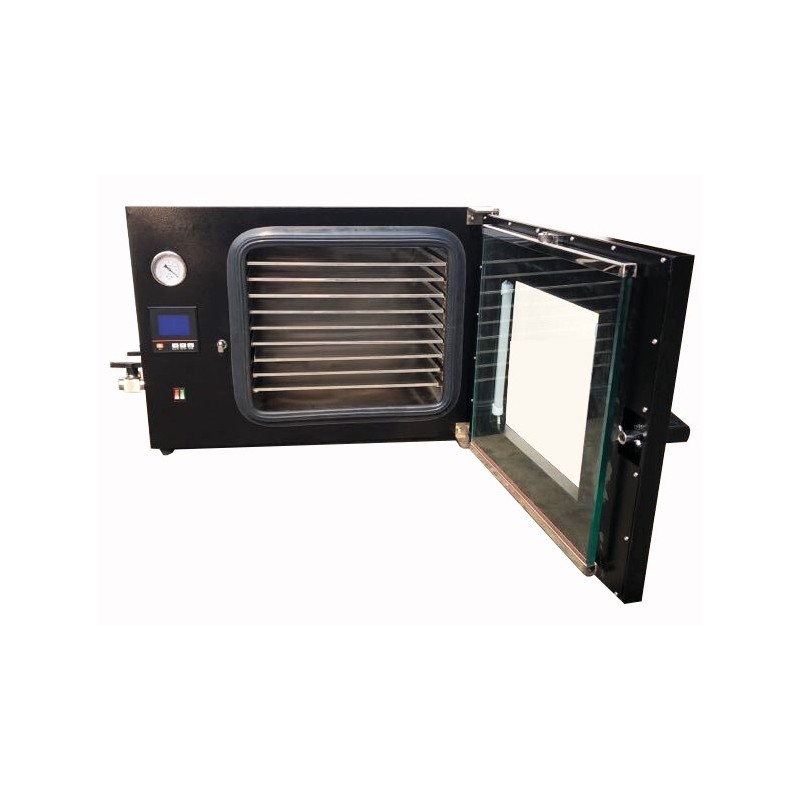

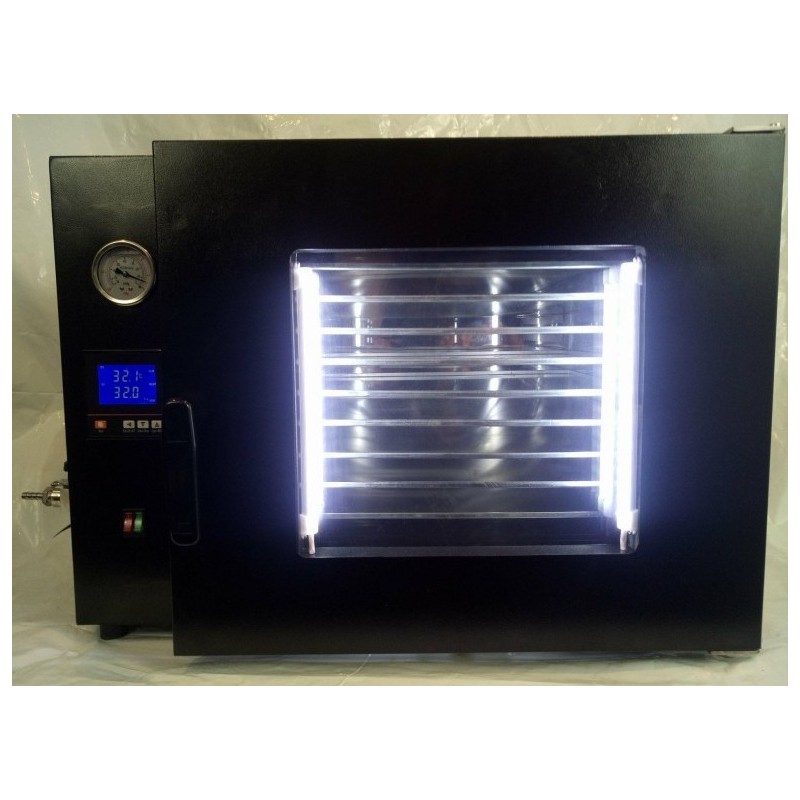

1x 1.9 Cubic Foot Vacuum Oven -
The oven body is made of high-quality stainless steel, filled with thermal insulation material. It has a double glass window, the inner glass is tempered and the outer glass is made of explosion proof material, a silicone rubber seal is between the door and chamber for best sealability, there is 1 independant digital touch controller, the 9 shelves are made of aluminium alloy plate with good thermal conductivity. The internal LED light system makes for easy viewing. There is also an extra port/valve for inert gas usage or hookup to multi oven system. Unit comes with all connections-fittings and a tube to join more than one oven together. 1 vacuum pump can be used to control 4 ovens. See Pictures

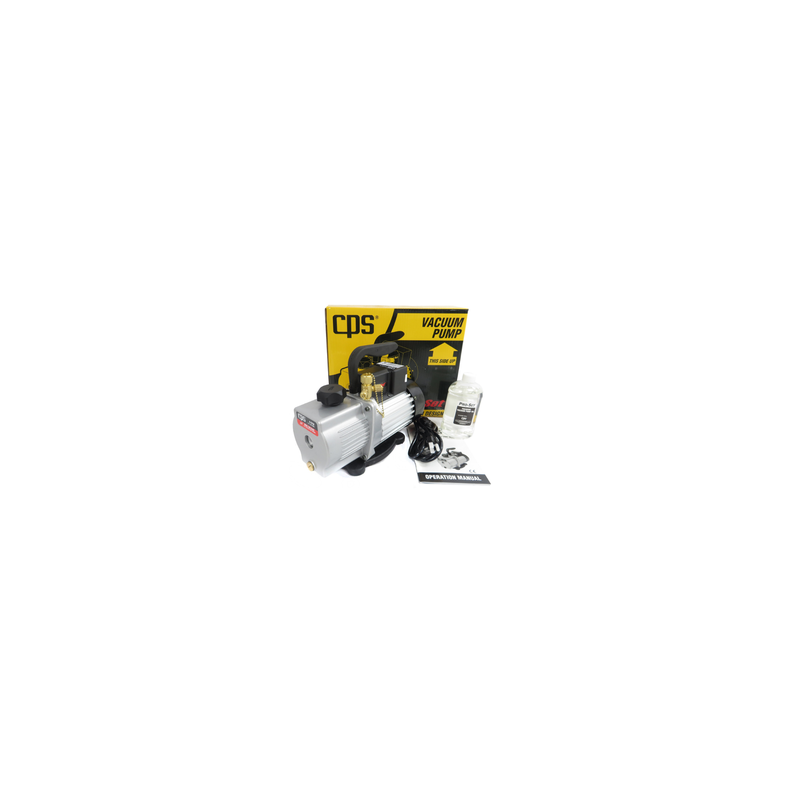

1x 6CFM Ignition Proof 2 Stage Vacuum Pump -
Stage: 2
Motor Size (HP) RPM @ 60Hz: 1/2 (HP)2880/3440
Dimensions (Inches): 13.1 x 5.5 x 10
Weight: 22.5 lb / 14.0 kg
Operating Temperature Range: 0C (32F) to 52C (125F)
Power Source: 115V 60Hz
Ultimate Vacuum: as low as 10 Microns
Oil Capacity: 16 oz / 470 ml
Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
Control System: ON-OFF power switch
Free Air Displacement: 6 CFM @ 60Hz
Intake Fittings: 1/4, 3/8, and 1/2 ACME

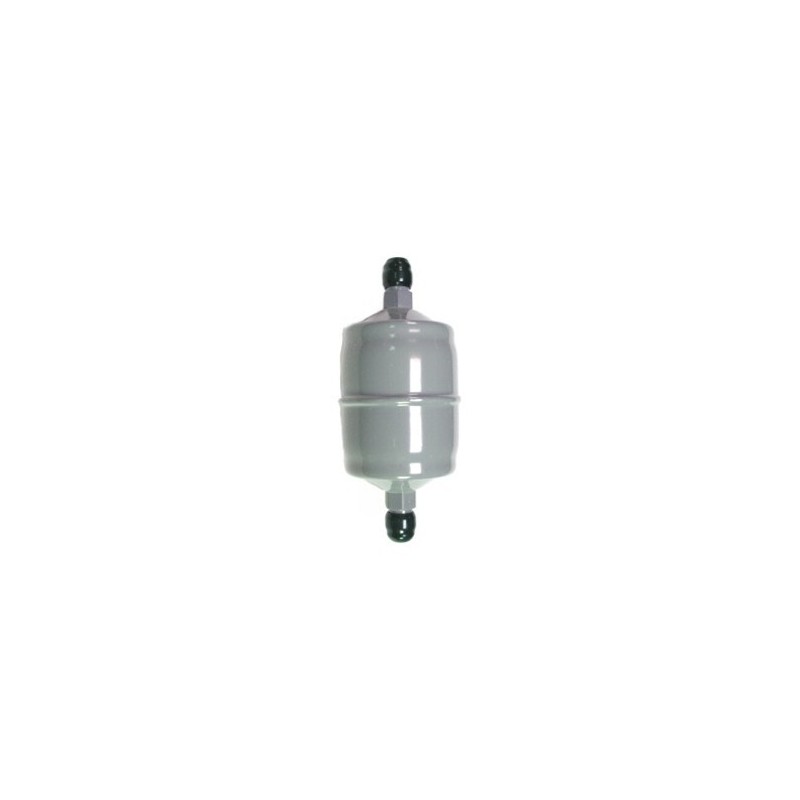

1x 1/4" JIC Inline Drying Filter

*Safety Training & Usage Tutorial Services are also available. Please inquire.
