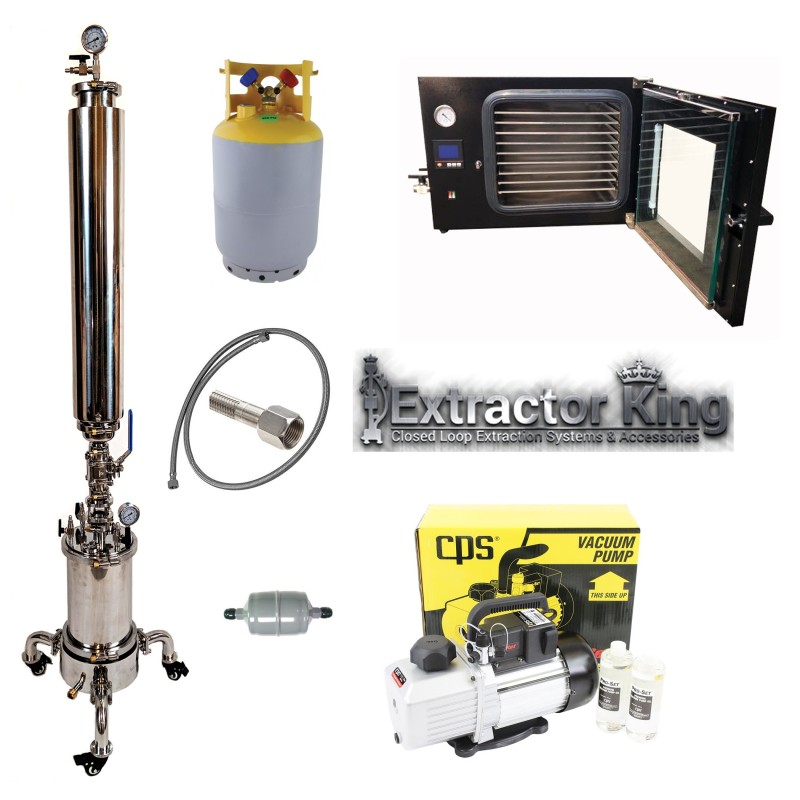

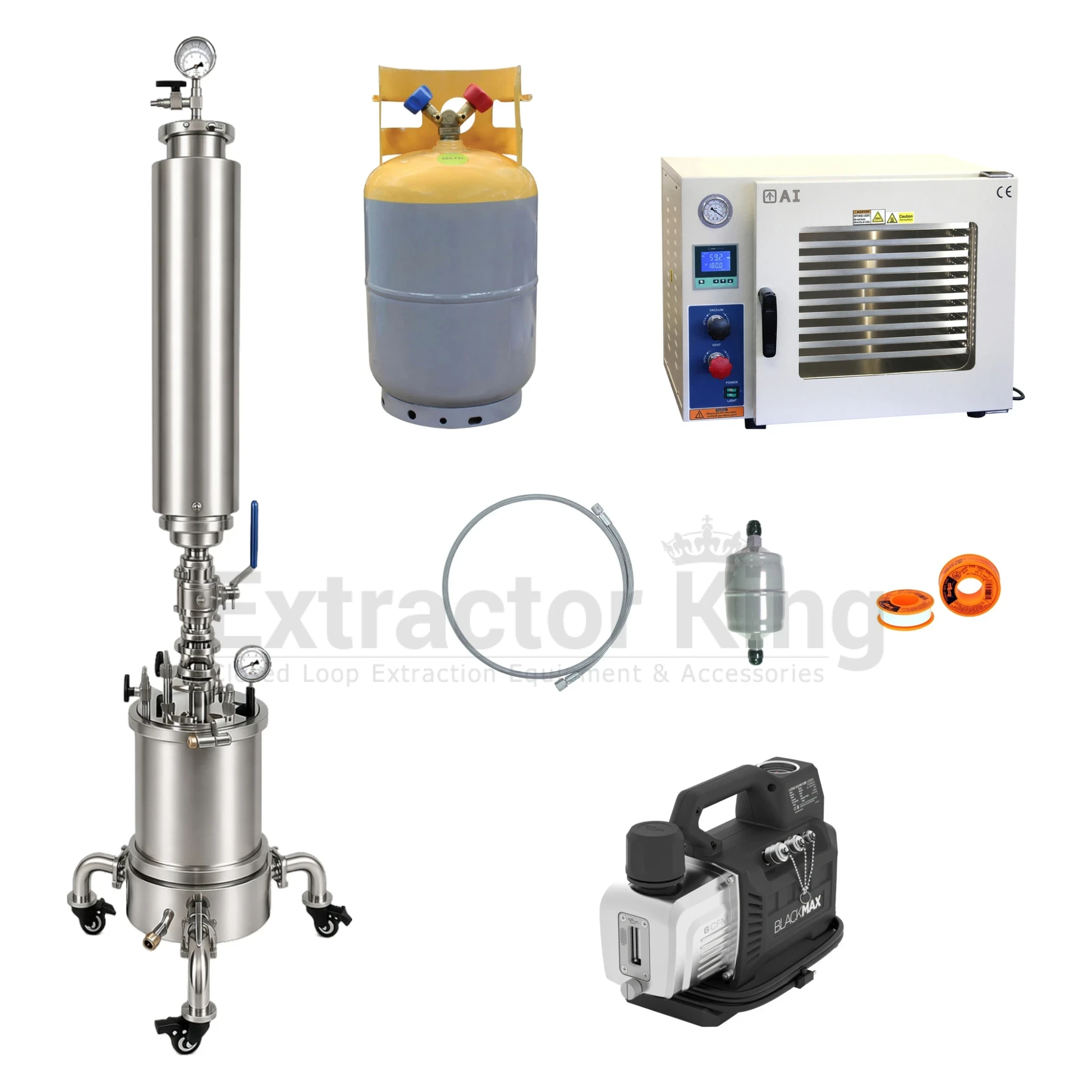

2.5LB Turn Key Closed Loop Extractor Setup w/ Vacuum Oven, Pump & Fully Jacketed Platter W/Wheels

This professional grade 2.5LB extractor was CNC machined and manufactured in compliance with ISO, 3A & CE certifications. Unlike other extractor systems, Extractor King Extractors come with all the bells and whistles. No extra costs for dewaxing columns, sight glasses, swagelock valves, 3 peice ball valves, high pressure clamps, splatter platter and 1-1/2 times ss304 thickness w/mirror polish finish. All these options and more come standard with all Extractor King Extractors.

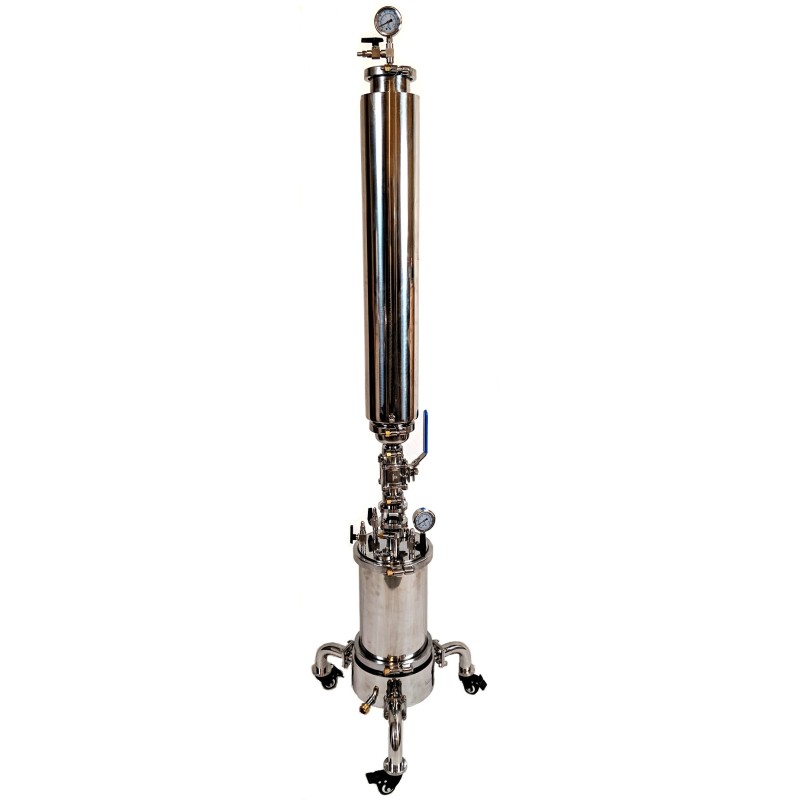

2.5LB Closed Loop Extractor:

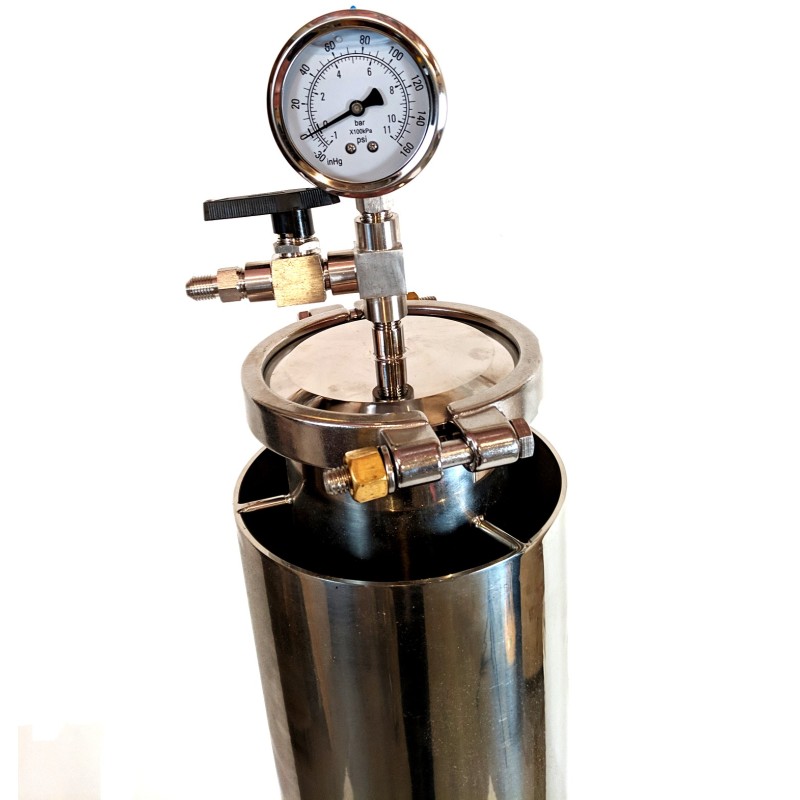

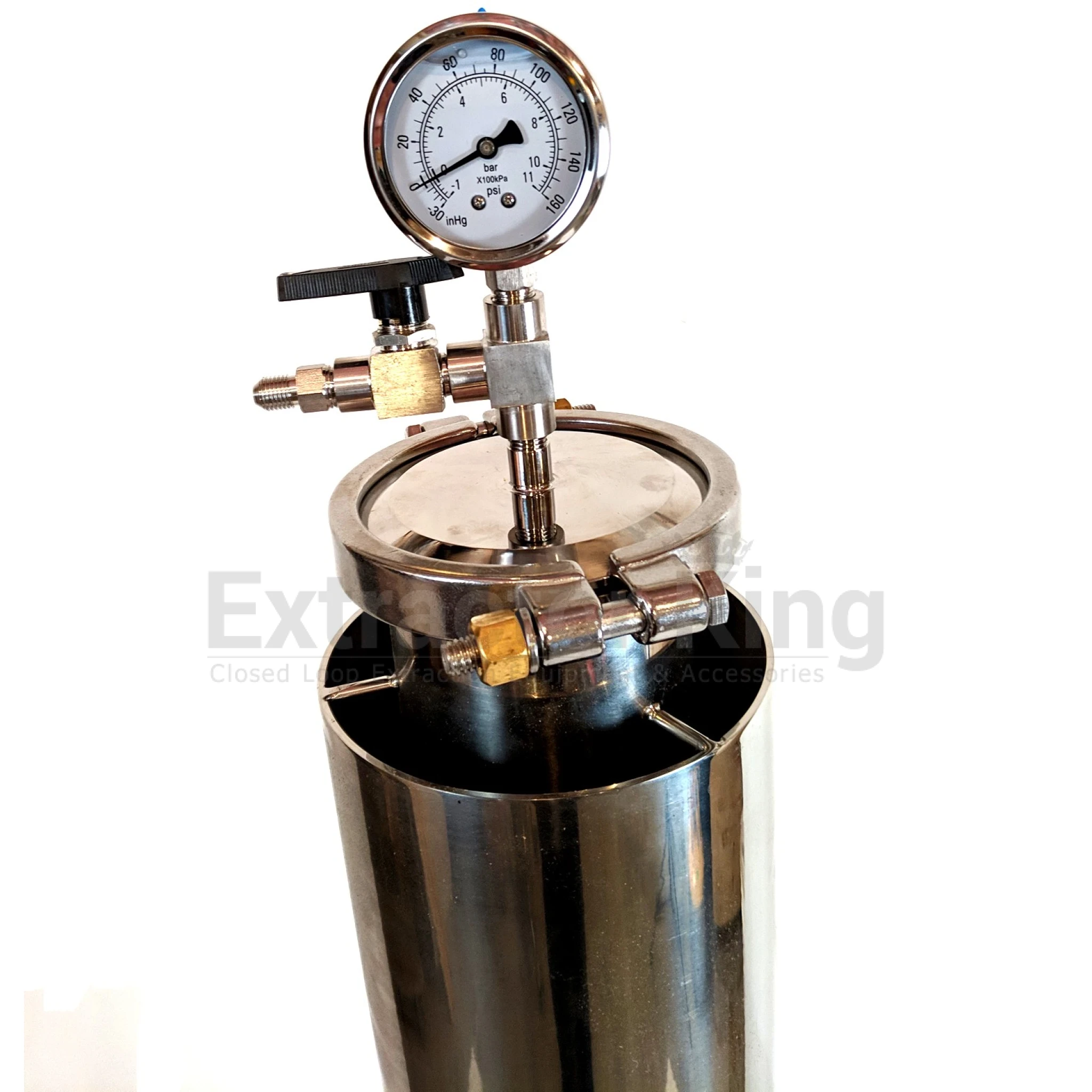

1x 4"x36" stainless steel material column w/6"x33 dewaxing sleeve with 1x 1/4" drain
1x 4" to 1-1/2" Hemispherical reducer w/ rings and mesh screen
1x 4" Endcap w/1x 1/4" MNPT & moulded spray ball

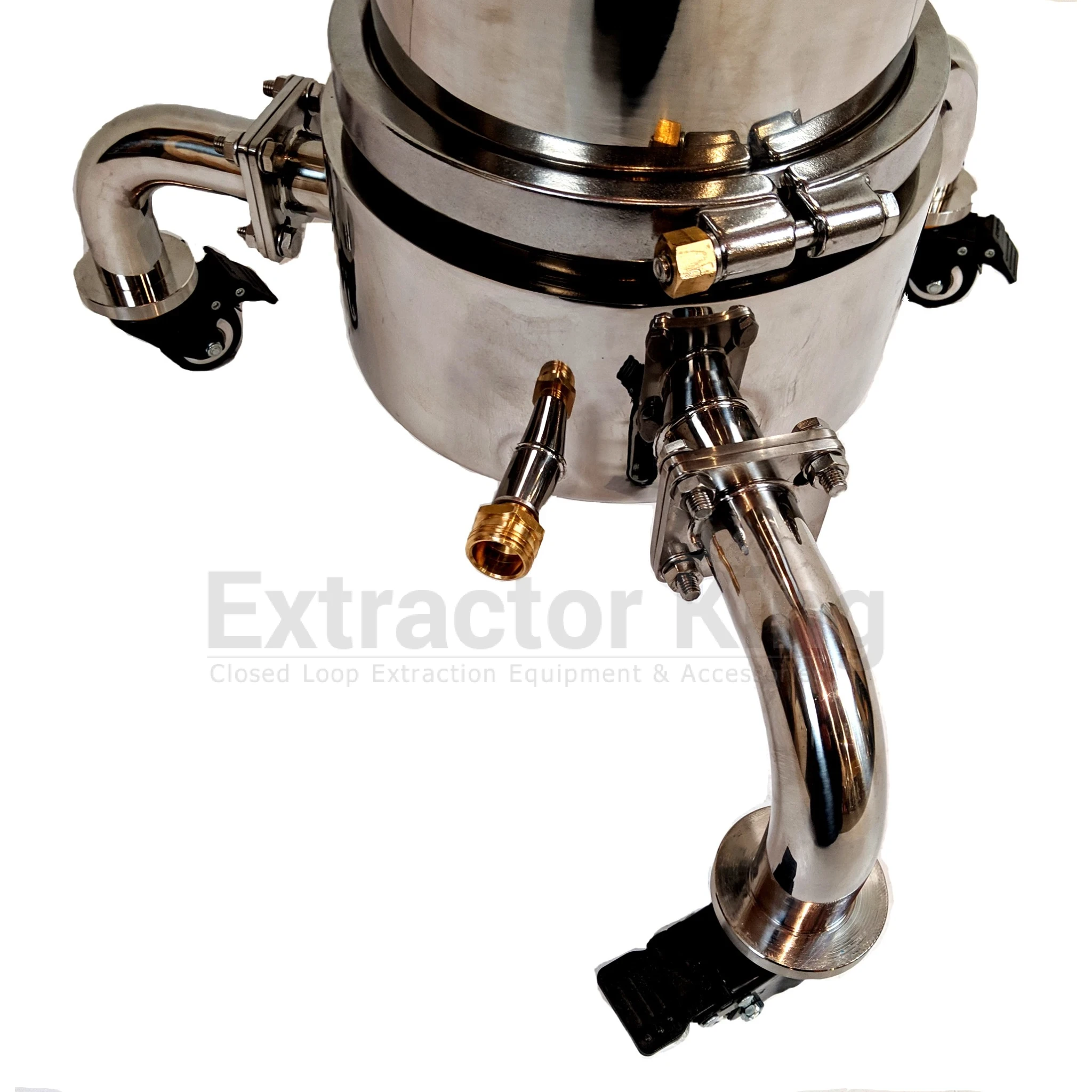

1x 8"x4" Fully jacketed shatter-splatter  Platter w/Wheels

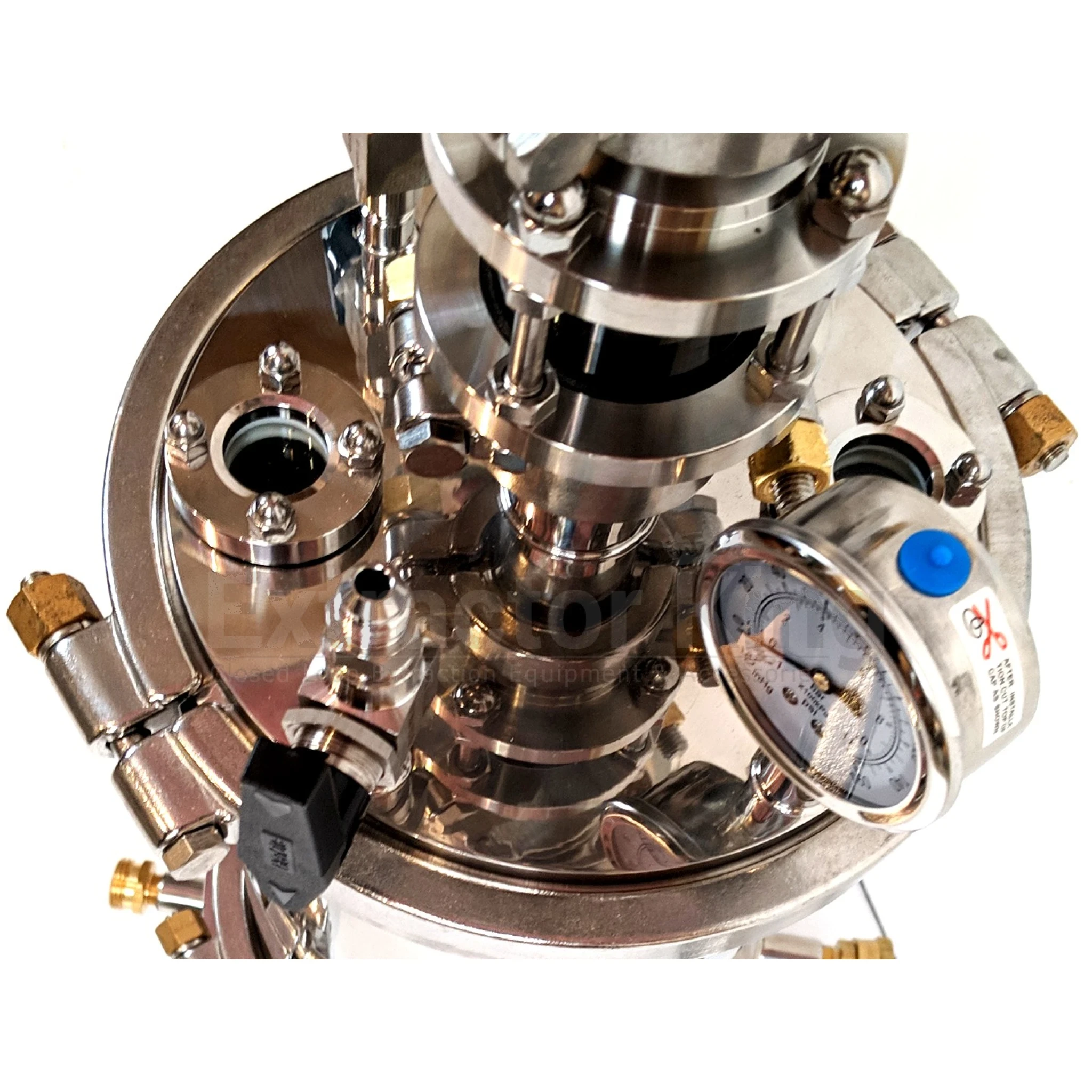

1x 8" Main collection lid w/1x 1-1/2" ferrule, 2x 1/4" MNPT, 1x 1/4" FNPT, 2x 3" union sightglass
1x 8"x12" Open spool for collectoion base
3x 1/4" Swagelock valves with stainless steel 1/4" jic fittings
1x 1-1/2" heavy duty 3pc ball valve
1x 1-1/2" Short inline sight glass before the lid.
1x Set of high pressure clamps
1x Complete set of triclamp gaskets and filters
1x Mirror polish finish on all extractor parts

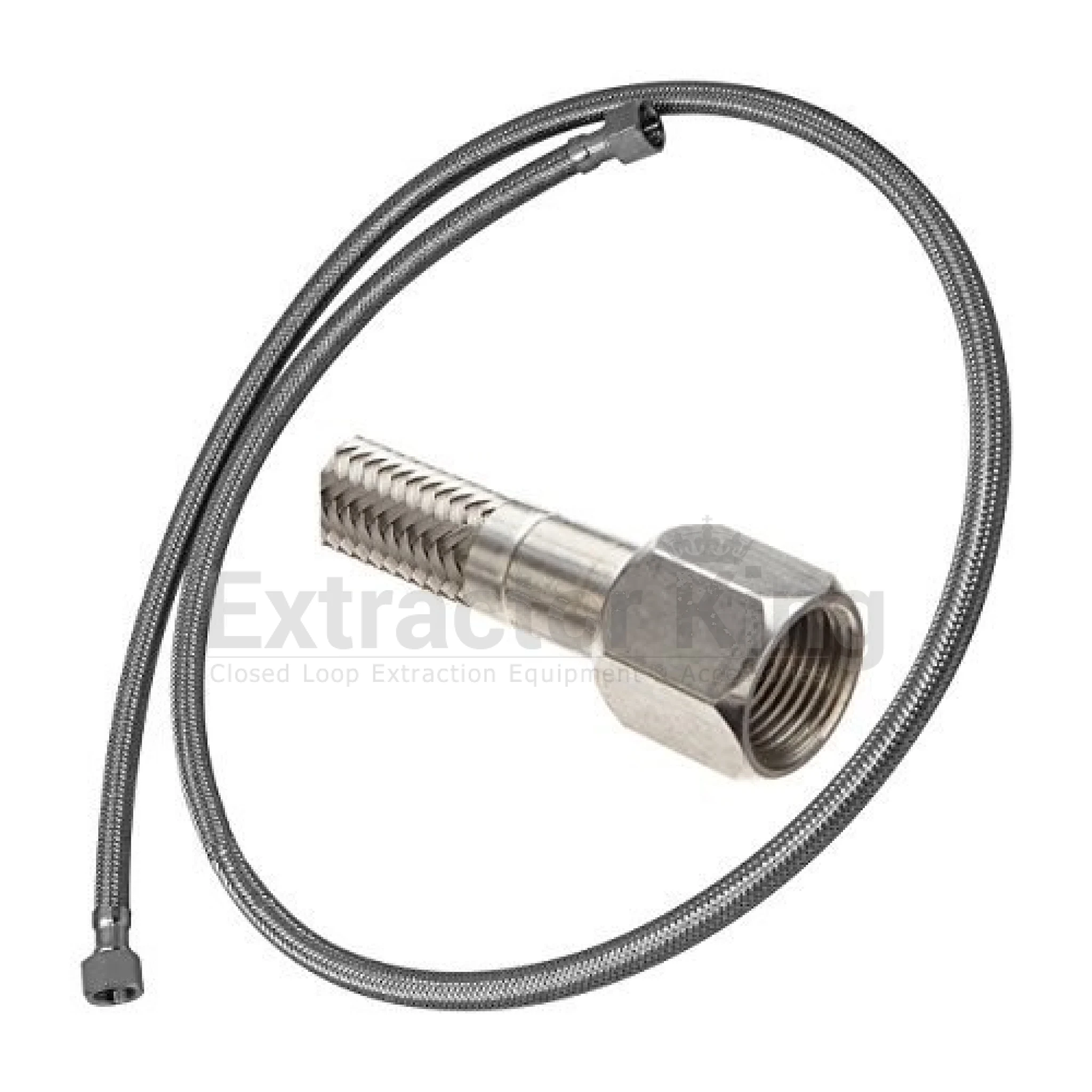

Hoses:

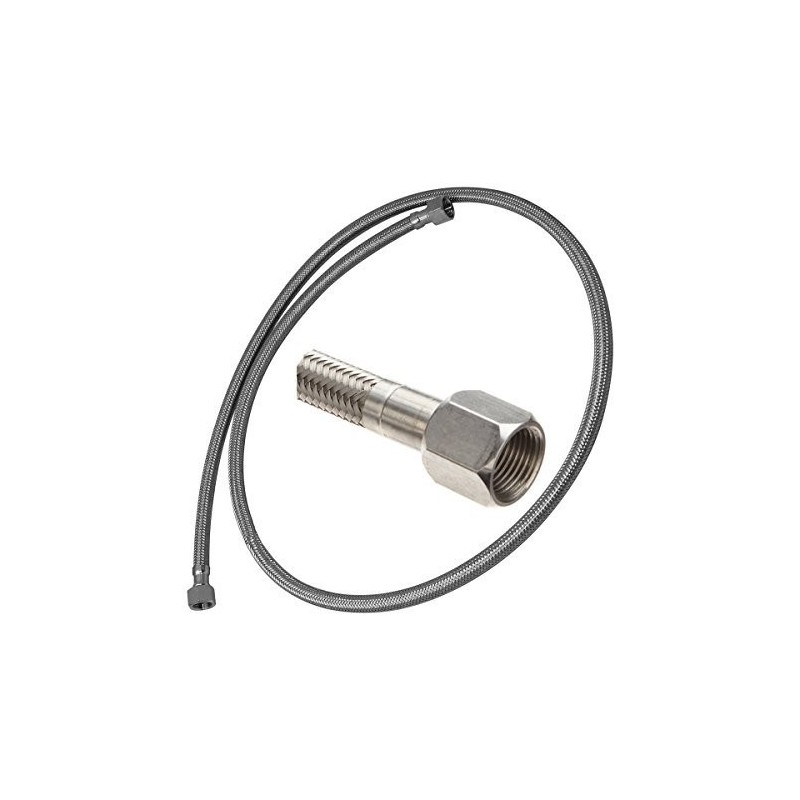

2x 7' High Pressure Braided Stainless Steel JIC Hoses
1x 3' High Pressure Braided Stainless Steel JIC Hoses

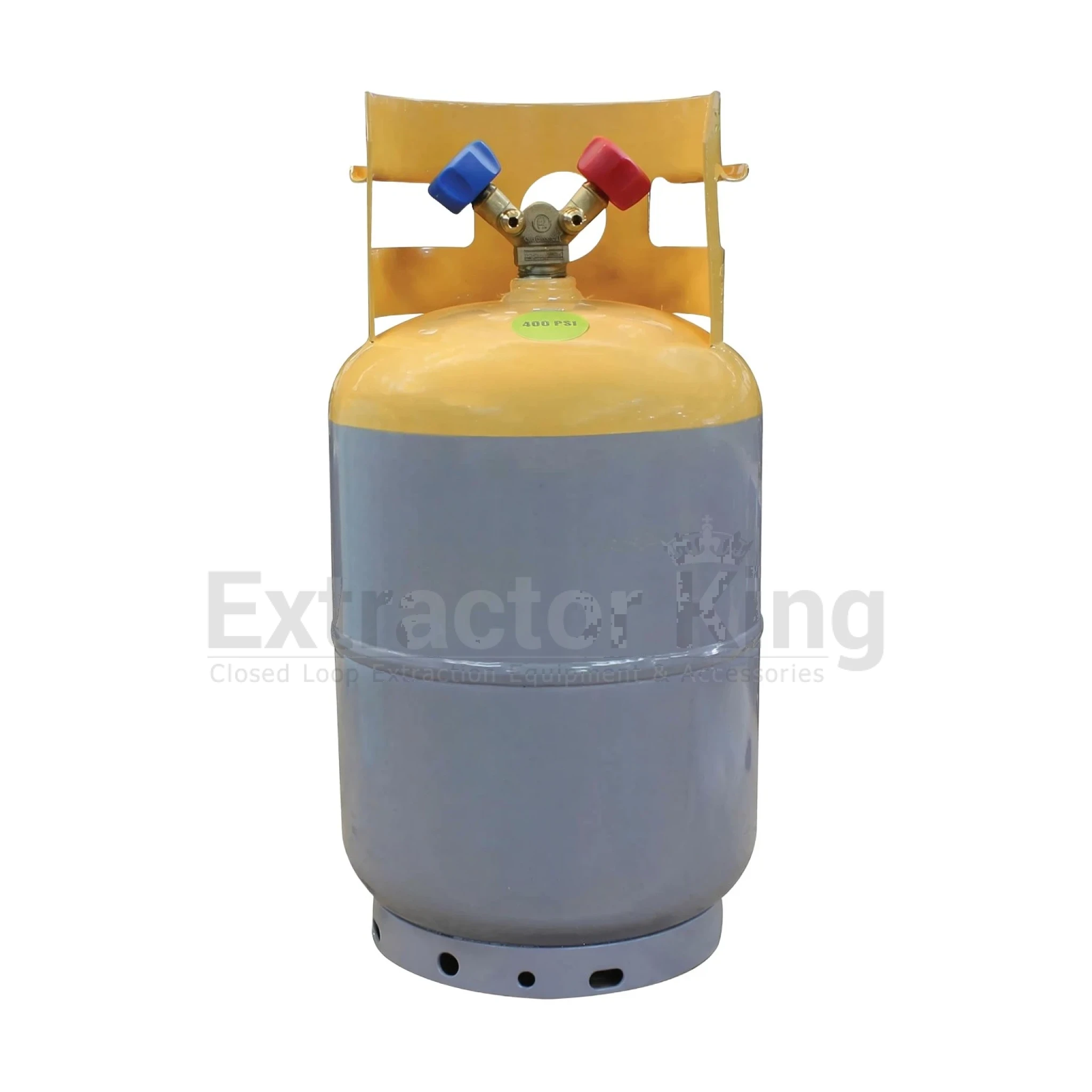

Solvent Reclaim Tank:

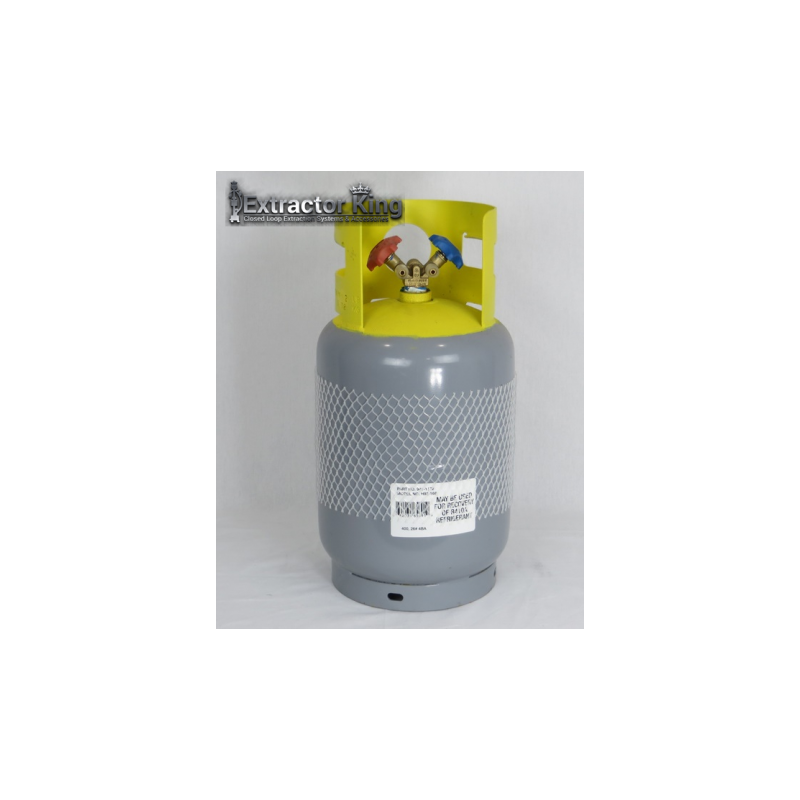

1x 30LB Reclaim Tank w/2x 1/4 JIC + Vapour & Liquid Valves

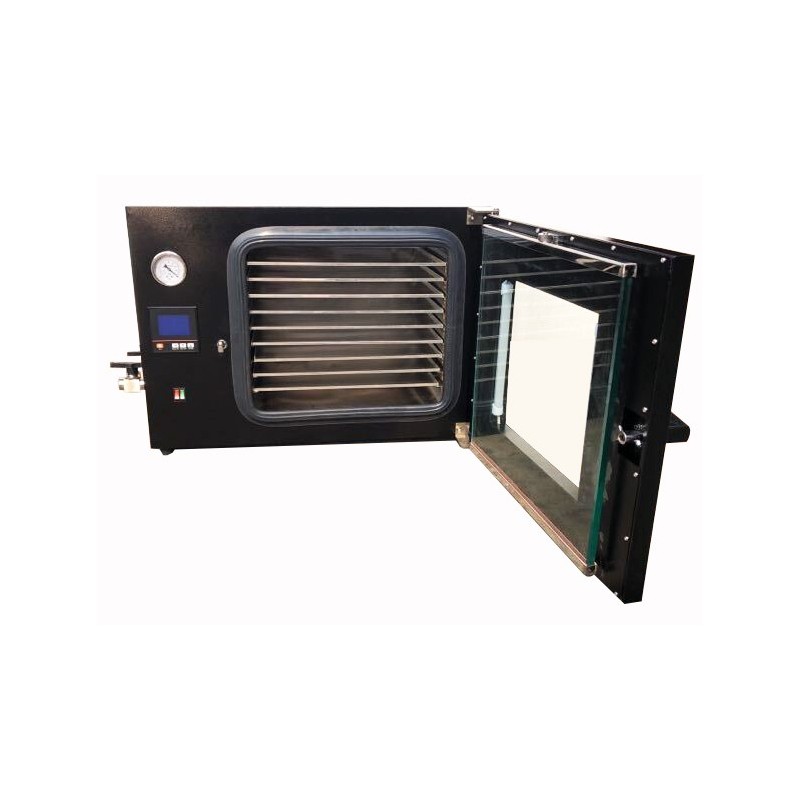

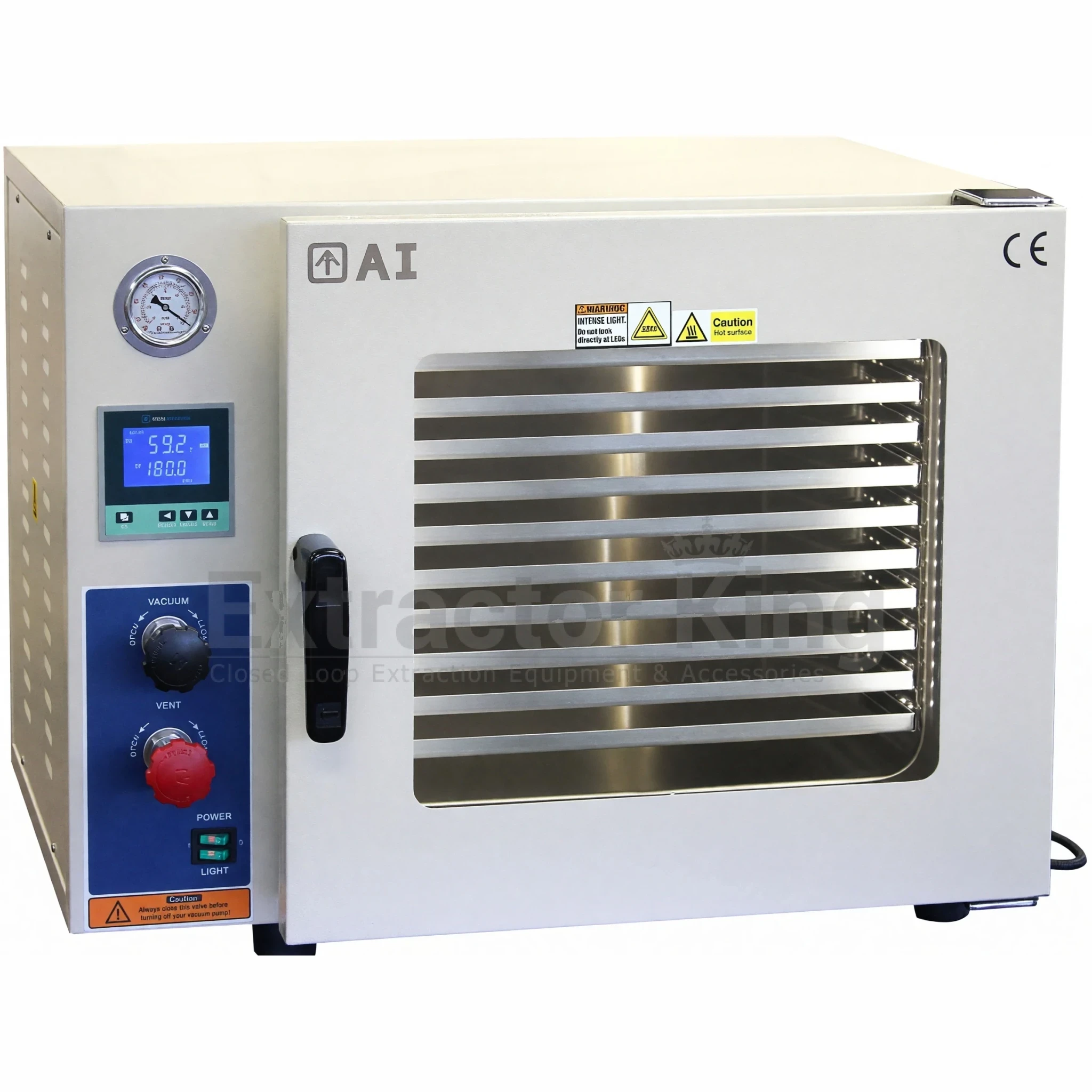

1x 1.9 Cubic Foot Vacuum Oven:

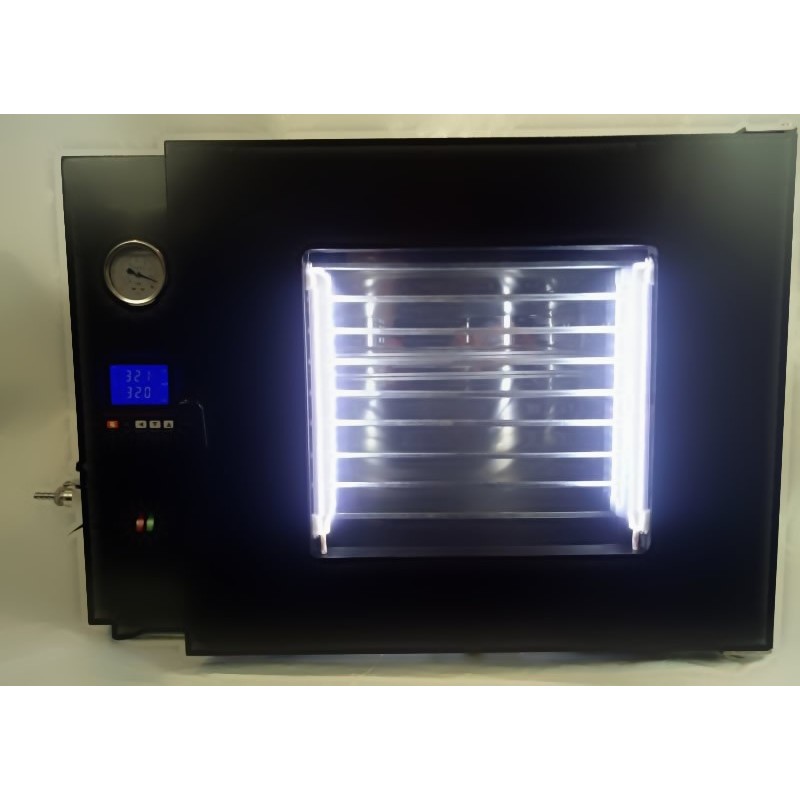

The oven body is made of high-quality stainless steel, filled with thermal insulation material. It has a double glass window, the inner glass is tempered and the outer glass is made of explosion proof material, a silicone rubber seal is between the door and chamber for best sealability, the 9 shelves are made of aluminum alloy plate with good thermal conductivity. The internal LED light system makes for easy viewing. There is also an extra port/valve for inert gas usage. Unit comes with all connections-fittings and a tube to join more than one oven together. 1 vacuum pump can be used to control 4 ovens at once. See Pictures

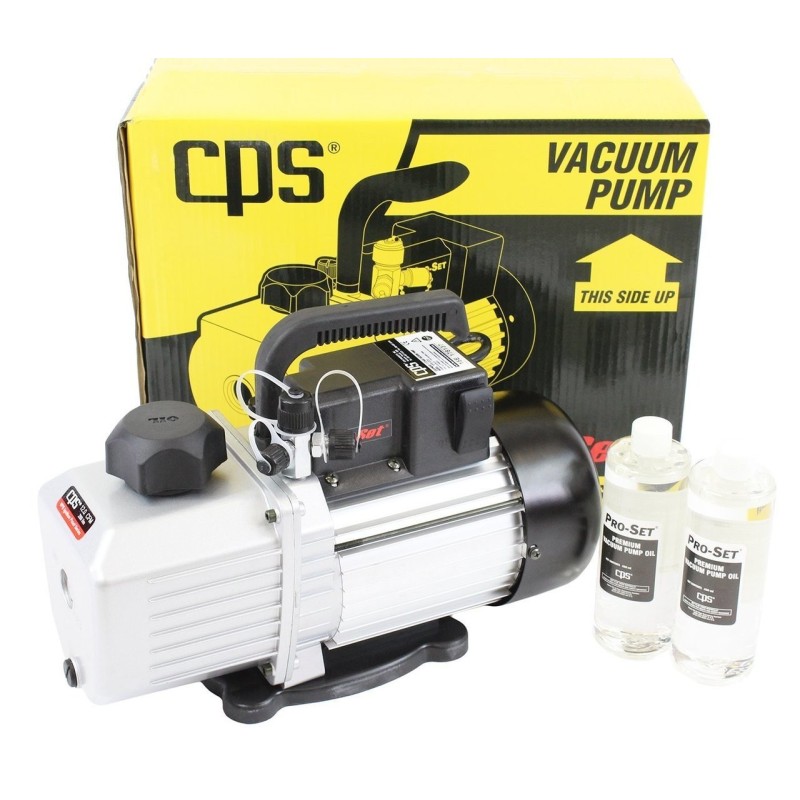

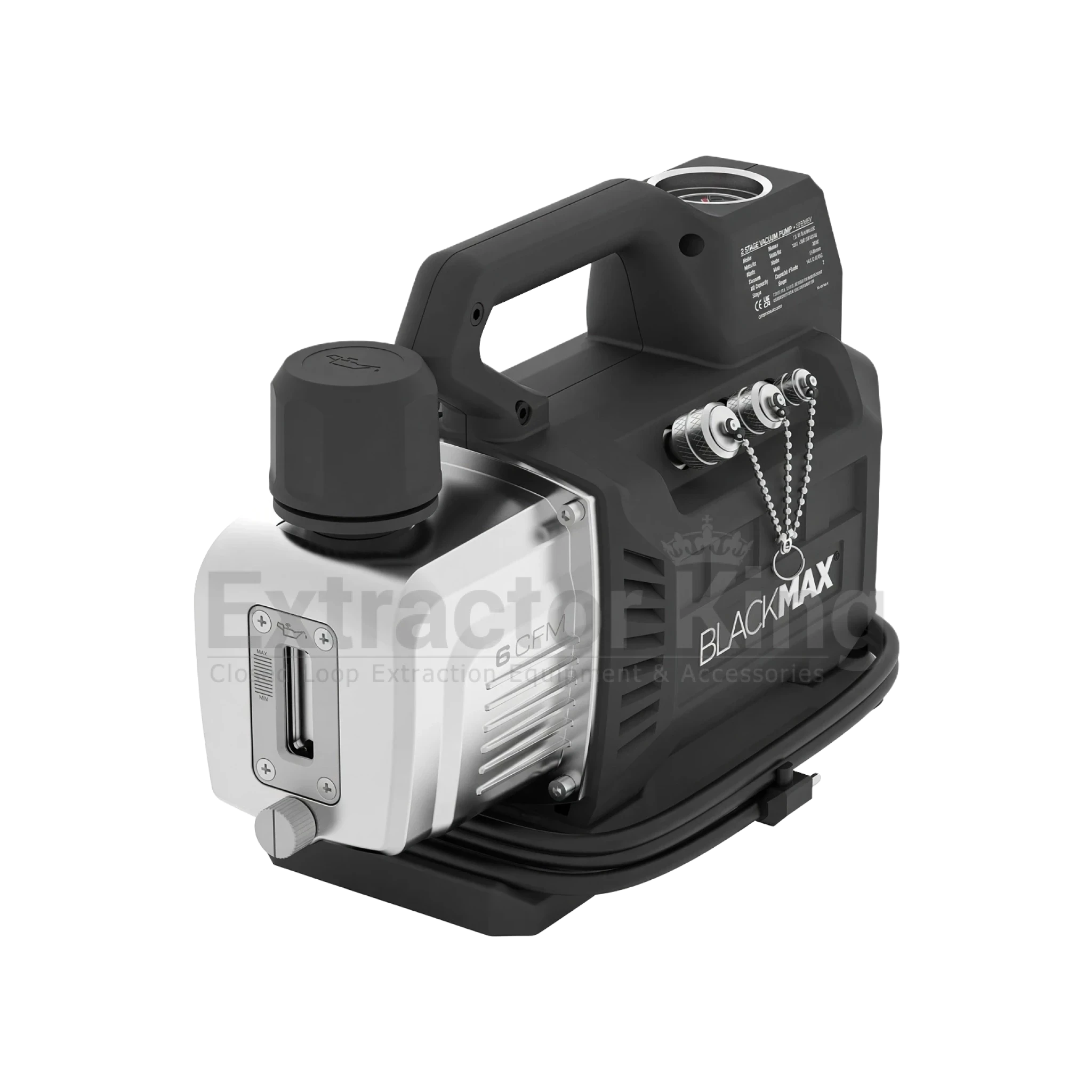

1x 6CFM Ignition Proof 2 Stage Vacuum Pump:
Stage: 2
Motor Size (HP) RPM @ 60Hz: 1/2 (HP)2880/3440
Dimensions (Inches): 13.1 x 5.5 x 10
Weight: 22.5 lb / 14.0 kg
Operating Temperature Range: 0C (32F) to 52C (125F)
Power Source: 115V 60Hz
Ultimate Vacuum: as low as 10 Microns
Oil Capacity: 16 oz / 470 ml
Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
Control System: ON-OFF power switch
Free Air Displacement: 6 CFM @ 60Hz
Intake Fittings: 1/4, 3/8, and 1/2 ACME

*Safety training & usage tutorial services are also available. Please inquire.
