10 CFM Two Stage Vacuum Pump - CPS

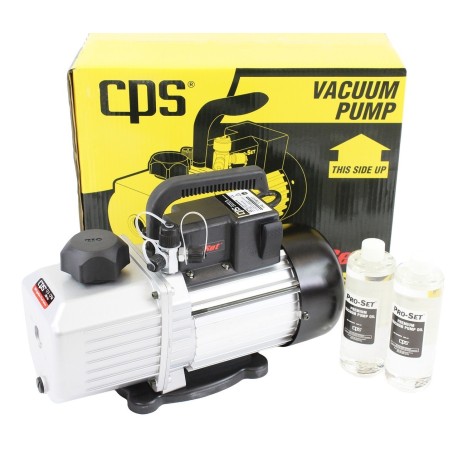

The VP10D Pro-Set® vacuum pump is a powerful 10 CFM, 2 stage unit with a versatile dual voltage 3/4HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service

Key Features:

• Dual voltage operation 110-120V / 220V 50/60Hz
• Exceptional ultimate vacuum rating as low as 10 microns
• Advanced air cooled motor design for operation in high ambient temperatures
• Proprietary oil mist free exhaust port cap for clean, safe job environment
• Gas ballast valve speeds achievement of deep vacuum
• Multiple port connections for ¼", ⅜" and ½" ACME
• Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
• Solid rubber base provides extreme shock resistance
• Sure grip handle ergonomically designed for superior comfort and portability

Specifications:

Stage: 2

Motor Size (HP) RPM @ 50/60Hz: 3/4 (HP) 2880 / 3440

Dimensxions (Inches): 14.9 x 5.7 x 10.6

Weight: 30.3 lb / 13.7kg

Operating Temperature Range: 0˚C (32˚F) to 52˚C (125˚F)

Power Source: 110-120V / 220V 50/60Hz

Ultimate Vacuum: as low as 10 Microns

Oil Capacity: 28 oz / 830 ml

Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle

Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse

Control System: ON-OFF power switch

Free Air Displacement: 10 CFM @ 60Hz, 240l/m @ 50Hz

Intake Fittings: 1/4, 3/8 and 1/2 SAE

Gas Ballast Valve: Yes
