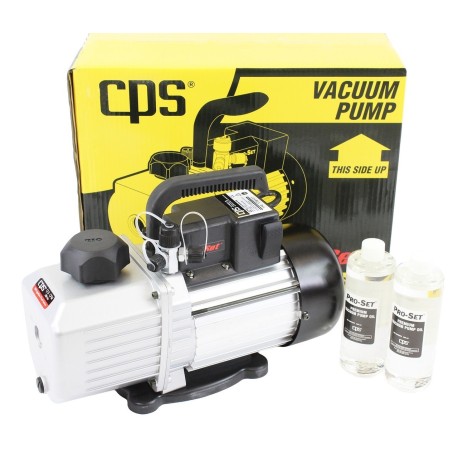

12 CFM 2 Stage Ignition Proof Vacuum Pump - CPS

he VPS12DU Pro-Set® vacuum pump is a 12 CFM, 2 stage unit with a versatile115 voltage 1HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.   (Comes with 1 yr. MFR warranty)

Key Features:

• Single voltage operation 115V 60Hz
• Exceptional ultimate vacuum rating as low as 10 microns
• Advanced air cooled motor design for operation in high ambiet temperatures
• Proprietary oil mist free exhaust port cap for clean, safe job environment
• Multiple port connections for 1/4, 3/8, and 1/2 ACME
• Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
• Solid rubber base provides extreme shock resistance
• Sure grip handle ergonomically designed for superior comfort and portability
• 1/4" Flare adapter is not included.

Specifications:
Stage: 2
Motor Size (HP) RPM @ 60Hz: 1 (HP)2880/3440
Dimensions (Inches): 14.9 x 5.7 x 10.6
Weight: 30.9 lb / 14.0 kg
Operating Temperature Range: 0C (32F) to 52C (125F)
Power Source: 115V 60Hz
Ultimate Vacuum: as low as 10 Microns
Oil Capacity: 27 oz / 800 ml
Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
Control System: ON-OFF power switch
Free Air Displacement: 12 CFM @ 60Hz
Intake Fittings: 1/4, 3/8, and 1/2 ACME
