4 CFM 2 Stage Vacuum Pump - CPS

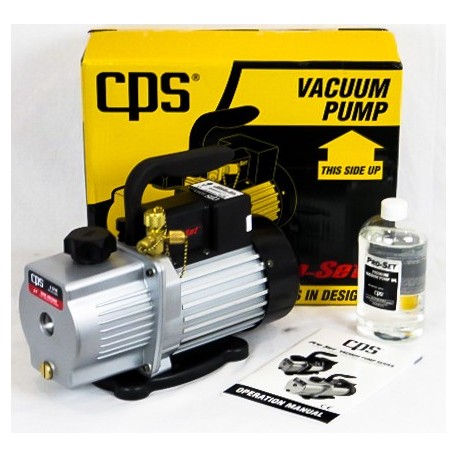

The VP4D Pro-Set® vacuum pump is a 4 CFM, 2 stage unit with a versatile dual voltage 1/2HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.   (Comes with 1 yr. MFR warranty)

Key Features:

• Dual voltage operation 110-120V / 220V 50/60Hz
• Exceptional ultimate vacuum rating as low as 10 microns
• Advanced air cooled motor design for operation in high ambiet temperatures
• Proprietary oil mist free exhaust port cap for clean, safe job environment
• Gas ballast valve speeds achievement of deep vacuum
• Multiple port connections for 1/4, 3/8, and 1/2 ACME
• Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
• Solid rubber base provides extreme shock resistance
• Sure grip handle ergonomically designed for superior comfort and portability
• 1/4" Flare adapter is not included.

Specifications:
Stage: 2
Motor Size (HP) RPM @ 50/60Hz: 1/2 (HP)2880/3440
Dimensions (Inches): 13.1 x 5.5 x 10
Weight: 22.1 lb / 10.0 kg
Operating Temperature Range: 0C (32F) to 52C (125F)
Power Source: 110-120V / 220V 50/60Hz
Ultimate Vacuum: as low as 10 Microns
Oil Capacity: 15.5 oz / 450 ml
Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
Control System: ON-OFF power switch
Free Air Displacement: 4 CFM @ 60Hz, 96l/m @ 50Hz
Intake Fittings: 1/4, 3/8, and 1/2 ACME
