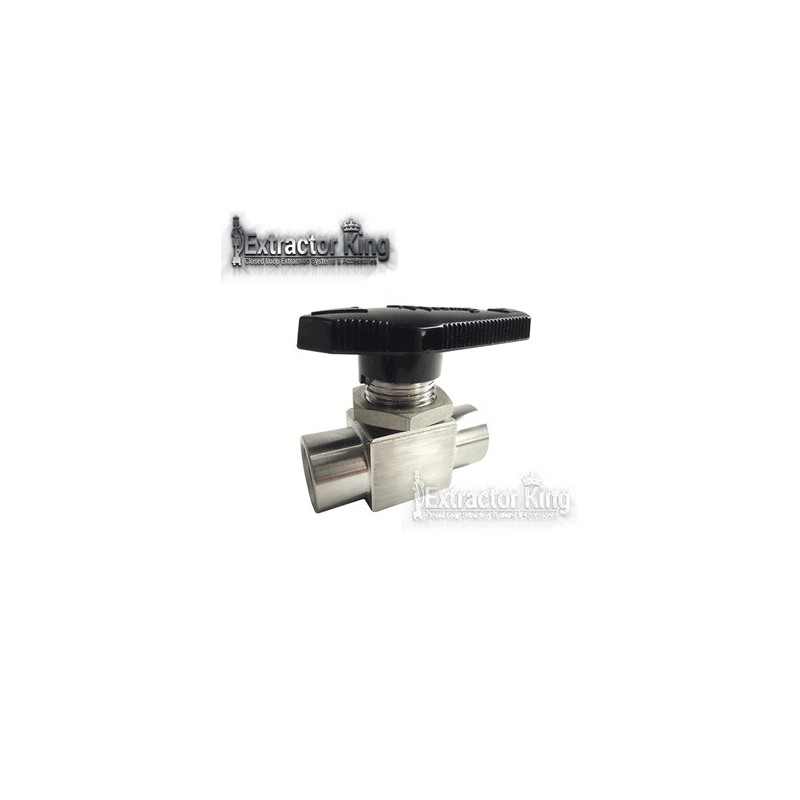

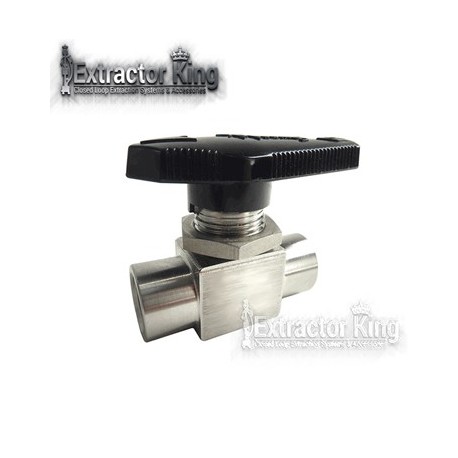

1/4"x1/4" FNPTx2 Swagelock Style Ball Valve
New
316 stainless steel 1/4"FNPTx1/4"FNPT Swagelock Style Ball Valve
More info
Specifications:
- Actuator Type - Manual
- Ball/Stem Material - Stainless Steel
- Body Material - 316 Stainless Steel
- Cleaning Process - Standard Cleaning and Packaging (SC-10)
- Connection 1 Size - 3/8"
- Connection 1 Type - Female NPT
- Connection 2 Size - 3/8"
- Connection 2 Type - Female NPT
- Flow Path - Standard (2-way)
- Flow Pattern - 2-way, shutoff, straight
- Handle Color - Black
- Handle Style - Lever
- Lubricant - Dow M11
- Max Temperature Pressure Rating - 300°F @ 2500 PSIG /148°C @ 172 BAR
- Orifice - 0.187 in /4.7 mm
- Packing - Modified PTFE
- Ring/Disc Material - Stainless Steel
- room Temperature Pressure Rating - 3000 PSIG @ 100°F /206 BAR @ 37°C
